MW1-HTX-F5

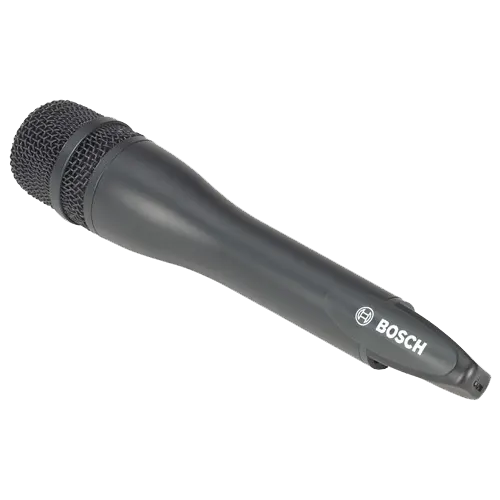

Bosch MW1-HTX-F5 Microphone with transmitter, 722-746 Hz, UHF wireless handheld microphone transmitter, LCD with battery status and frequency indication, supplied with microphone holder, batteries and storage case, Frequency range: 722-746 MHz, 193 selectable UHF channels.

https://www.esco.pk/web/image/product.template/3404/image_1920?unique=d63db4a

    Rs. 0.00 0.0 PKR Rs. 0.00

    Rs. 45,000.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Invalid email
    We'll notify you once the product is back in stock.
    Added to your wishlist
    Contact Us
    Bosch
    ​

    Microphone Type

    Bosch MW1-HTX-F5 Microphone with transmitter, Wireless Handheld Microphone

    Frequency Range

    722 to 746 MHz, Frequency stability ±0.005%, Frequency deviation ±48 kHz

    Applications

    It is ideal for used in Restaurants, Hotels, Houses of Worship, Conference Centers, Shops, and many other applications.

    Channels

    193 selectable UHF channels (in steps of 125 kHz)

    Batteries

    2 x LR6/AA/UM3 1.5 V, Approximately 15 hours operation on alkaline batteries

    Controls and Indicators

    Power on/off, LCD displaying frequency and battery level

    Sensitivity adjustment and lock‑on mode, Frequency up/down buttons

    Electrical

    Batteries

    2 x LR6/AA/UM3 1.5 V

    Battery life time

    Approx. 15 hrs

    Modulation

    FM frequency modulation

    Frequency selection

    PLL synthesized control

    Frequency range

    722 to 746 MHz

    Channels

    193 channels (in steps of 125 kHz)

    Frequency stability

    ±0.005%

    Stability

    ±10 kHz

    Frequency deviation

    ±48 kHz

    S/N ratio

    >102 dB

    RF output

    10 mW

    Spurious rejection

    >60 dBc

    Dynamic range

    >110 dB

    Polar pattern

    Unidirectional

    Transducer type

    Condenser

    Frequency response

    50 Hz ~ 15 kHz

    Mechanical

    Dimensions (H x W)

    260 x 50 mm (10.24 x 1.96 in)

    Color

    Charcoal

    Weight

    350 g (0.77 lb)

    Antenna

    Integrated

    Environmental

    Operating Temperature

    -25 °C to +55 °C

    (-13 °F to +131 °F)

    Storage and Transport Temperature

    -40 °C to +70 °C

    (-40 °F to +158 °F)

    Relative Humidity

    <95%
