PLE-1CS

Bosch PLE‑1CS Plena All‑Call Call Station, metal base design with fixed 2 m cable and lockable, Sensitivity : 0.7 mV @ 85 dB SPL (2mV/Pa), Maximum input sound level : 110 dB SPL, Distortion <0.6% (maximum input), Input noise level (equiv.) : 28 dB SPLA (S/N 66 dBA ref. 1 Pa), Frequency response : 100 Hz to 16 kHz, Euro style connector.

https://www.esco.pk/web/image/product.template/3368/image_1920?unique=639567f

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

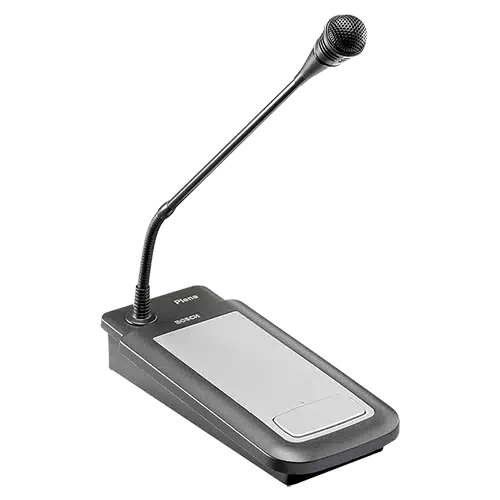

    The Plena tabletop microphone is an elegant, high-quality unidirectional condenser tabletop microphone, designed to make calls in a public address system. Its rubber feet and heavy metal base ensure stability on any flat surface.

    Features

    • PTT-key for calls for activation

    • Momentary or toggle

    • Green LED, indicating microphone active

    • Stable metal base design with fixed 2 m cable and lockable Euro style connector

    • Phantom powered by amplifier

    Technical Specifications

    Phantom Power Supply

    Voltage range

    12 to 48 V

    Current consumption

    <8 mA

    Performance

    Sensitivity

    0.7 mV @ 85 dB SPL (2 mV/Pa)

    Maximum input sound level

    110 dB SPL

    Distortion

    <0.6% (maximum input)

    Input noise level (equiv.)

    28 dB SPLA (S/N 66 dBA ref. 1 Pa)

    Frequency response

    100 Hz to 16 kHz

    Output impedance

    200 ohm

    Base dimensions (H x W x D)

    40 x 100 x 235 mm

    (1.57 x 3.97 x 9.25 in)

    Weight

    Approx. 1 kg (2.2 lb)

    Color

    Charcoal with silver

    Stem length with mic.

    390 mm (15.35 in)

    Cable length

    2 m (6.56 ft)

    Operating temperature

    -10 ºC to +45 ºC (14 ºF to +113 ºF)

    Storage temperature

    -40 ºC to +70 ºC (-40 ºF to

    +158 ºF)

    Relative humidity

    <95%
