PLE-1MA060-EU

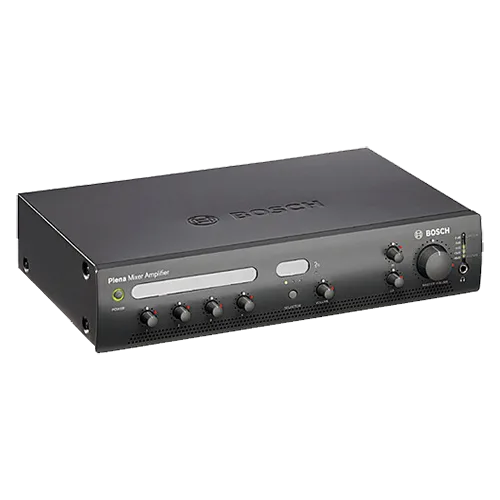

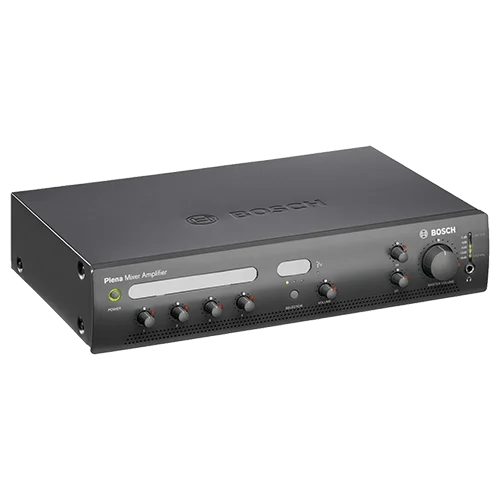

Bosch PLE-1MA060-EU 60W Plena Mixer Amplifier, 4 microphones and 3 background music (BGM) inputs, 100 V and telephone input with priority & VOX, 2-tone chime, Announcement only output, 3-wire volume override, Outputs for line out and music only out, Unique easy-to-use intuitive tone controls, Voice-activated emergency override, 230 VAC ±10%, 50/60 Hz.

https://www.esco.pk/web/image/product.template/12645/image_1920?unique=9326619

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare
    Contact Us
    Bosch

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    Mixer Amplifier

    Bosch PLE-1MA060-EU 60W Plena Mixer Amplifier

    Personalized settings

    Detachable label where the user can write the names for inputs

    Indicate preferred settings on the front panel

    Loudspeaker Output

    Max/rated : 90 W / 60 W

    Loudspeaker output 4 ohm : 16 V (60 W)

    Performance

    Frequency response 50 Hz to 20 kHz (+1/‑3 dB @ ‑10 dB ref. rated output)

    Distortion <1% @ rated output power, 1 kHz

    Microphone and line inputs

    4 microphone/line inputs, plus 3 music source inputs

    Integration

    A telephone / 100 V emergency input with VOX activation is provided for easy integration with another PA system or a telephone paging system

    Controls and indicators

    On/off switch, Power on LED, LED VU meter for master output, Master volume knob

    Four volume knobs for microphone inputs, Knob for treble & bass level, BGM Button

    Power

    230 VAC ±10%, 120 Watt Power Amplifier, 100V Constant Voltage, 400 VA

    Separate 100 V call-only output channel for Announcement only

    Electrical

    Mains power supply

    Voltage

    230 VAC ±10%, 50/60 Hz

    (reduced power at lower mains or battery voltage)

    Inrush current PLE-1MA060-EU

    5 A

    Power consumption

    PLE-1MA060-EU

    200 VA

    Performance

    Frequency response

    50 Hz to 20 kHz (+1/‑3 dB @

    ‑10 dB ref. rated output)

    Distortion

    <1% @ rated output power, 1 kHz

    Bass Control

    Max -12/+12 dB (frequency is setting dependent)

    Treble Control

    Max -12/+12 dB (frequency is setting dependent)

    RJ-45 input

    1 x

    Wall panel input

    For PLE‑WP3S2Z

    Mic/Line input

    4 x

    Input 1 (Push-to-talk contact with ducking functionality)

    5‑pin Euro style, balanced, phantom

    3‑pin XLR, balanced, phantom

    Input 2-4 (VOX with ducking functionality on input 2)

    3‑pin XLR, balanced, phantom

    Sensitivity

    1 mV (mic); 1 V (line)

    Impedance

    >1 kohm (mic); >5 kohm (line)

    Dynamic range

    93 dB

    S/N (flat at max volume)

    >63 dB (mic); >70 dB (line)

    S/N (flat at min volume/muted)

    >75 dB

    CMRR (mic)

    >40 dB (50 Hz to 20 kHz)

    Headroom

    >17 dB

    Speech filter

    -3 dB @ 315 Hz, high-pass,

    6 dB/oct

    Phantom power supply

    16 V via 1.2 kohm (mic)

    Music input

    3 x

    Connector

    Cinch, stereo converted to mono

    Sensitivity

    300 mV

    Impedance

    22 kohm

    S/N (flat at max volume)

    >70 dB

    S/N (flat at min volume/muted)

    >75 dB

    Headroom

    >25 dB

    Emergency / telephone

    1 x

    Connector

    7‑pin Euro style pluggable screw connector

    Sensitivity Tel

    1 V maximum

    Sensitivity 100V

    100 V maximum

    Impedance

    >10 kohm

    S/N (flat at max volume)

    >65 dB

    VOX

    Threshold 50 mV; attack time 150 ms; release time 2 s

    Master/music output

    1 x

    Connector

    3-pin XLR, balanced

    Nominal level

    1 V

    Impedance

    <100 ohm

    Loudspeaker output 100 V

    Connector

    Euro style pluggable screw terminal, floating

    Max / rated PLE-1MA060

    90 W / 60 W

    Loudspeaker output 4 ohm

    Connector

    Euro style pluggable screw terminal, floating

    PLE-1MA060-EU

    16 V (60 W)

    Mechanical

    Dimensions (H x W x D)

    100 x 430 x 270 mm (19" wide, 2U high)

    Mounting

    Stand-alone, 19" rack

    Color

    Charcoal

    Weight

    Approx. 8.5 kg

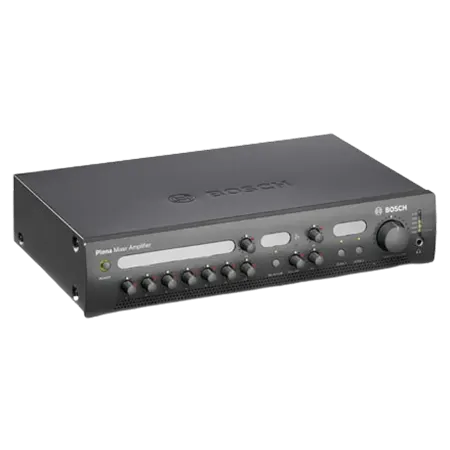

    Suggested Alternatives
