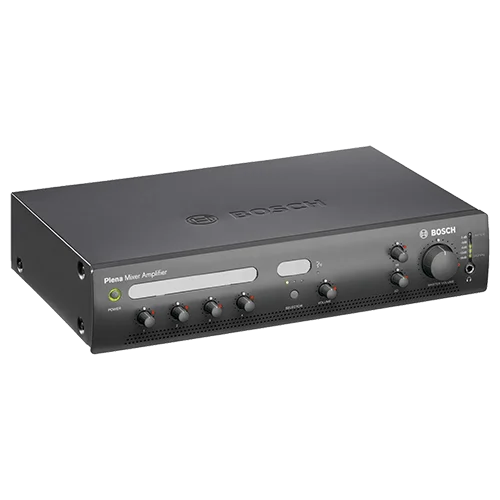

PLE-1MA120-EU
Bosch PLE-1MA120-EU 120W Plena Mixer Amplifier, 4 microphones and 3 background music (BGM) inputs, Speaker output: 100 V and 4 Ohm, Announcement only output, 3-wire volume override, 100 V and telephone input with priority & VOX, Voice-activated emergency override, Master output for expansion, Frequency response 50 Hz to 20 kHz (+1/‑3 dB @ ‑10 dB ref. rated output), Distortion <1% @ rated output power, 1 kHz.
Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.
Mixer Amplifier
Plena Mixer Amplifier 120 W, 100V
Personalized settings
Detachable label where the user can write the names for inputs
Indicate preferred settings on the front panel
Loudspeaker Output
Max/rated : 180 W / 120 W
Loudspeaker output 4 ohm : 22 V (120 W)
Performance
Frequency response : 50 Hz to 20 kHz (+1/‑3 dB @ ‑10 dB )
Distortion <1% @ rated output power, 1 kHz
Microphone and line inputs
4 microphone/line inputs, plus 3 music source inputs, priority Input channels 1 &2
Integration
A telephone / 100 V emergency input with VOX activation is provided for easy integration with another PA system or a telephone paging system
Controls and indicators
On/off switch, Power on LED, LED VU meter for master output, Master volume knob
Four volume knobs for microphone inputs, Knob for treble & bass level, BGM Button
Power
230 VAC ±10%, 120 Watt Power Amplifier, 100V Constant Voltage, 400 VA
Separate 100 V call-only output channel for Announcement only
Mains Power Supply |
||
Voltage |
230 VAC ±10%, 50/60 Hz (reduced power at lower mains or battery voltage) |
|
Inrush current PLE-1MA120-EU |
10 A |
|
Power Consumption |
||
PLE-1MA120-EU |
400 VA |
|
Performance |
||
Frequency response |
50 Hz to 20 kHz (+1/‑3 dB @ ‑10 dB ref. rated output) |
|
Distortion |
<1% @ rated output power, 1 kHz |
|
Bass Control |
Max -12/+12 dB (frequency is setting dependent) |
|
Treble Control |
Max -12/+12 dB (frequency is setting dependent) |
|
RJ-45 input |
1 x |
|
Wall panel input |
For PLE‑WP3S2Z |
|
Mic/Line Input |
4 x |
|
Input 1 (Push-to-talk contact with ducking functionality) |
5‑pin Euro style, balanced, phantom 3‑pin XLR, balanced, phantom |
|
Input 2-4 (VOX with ducking functionality on input 2) |
3‑pin XLR, balanced, phantom |
|
Sensitivity |
1 mV (mic); 1 V (line) |
|
Impedance |
>1 kohm (mic); >5 kohm (line) |
|
Dynamic range |
93 dB |
|
S/N (flat at max volume) |
>63 dB (mic); >70 dB (line) |
|
S/N (flat at min volume/muted) |
>75 dB |
|
CMRR (mic) |
>40 dB (50 Hz to 20 kHz) |
|
Headroom |
>17 dB |
|
Speech filter |
-3 dB @ 315 Hz, high-pass, 6 dB/oct |
|
Phantom power supply |
16 V via 1.2 kohm (mic) |
|
Music Input |
3 x |
|
Connector |
Cinch, stereo converted to mono |
|
Sensitivity |
300 mV |
|
Impedance |
22 kohm |
|
S/N (flat at max volume) |
>70 dB |
|
S/N (flat at min volume/muted) |
>75 dB |
|
Headroom |
>25 dB |
|
Music input |
3 x |
|
Emergency / Telephone |
1 x |
|
Connector |
7‑pin Euro style pluggable screw connector |
|
Sensitivity Tel |
1 V maximum |
|
Sensitivity 100V |
100 V maximum |
|
Impedance |
>10 kohm |
|
S/N (flat at max volume) |
>65 dB |
|
VOX |
Threshold 50 mV; attack time 150 ms; release time 2 s |
|
Master/Music Output |
1 x |
|
Connector |
3-pin XLR, balanced |
|
Nominal level |
1 V |
|
Impedance |
<100 ohm |
|
Loudspeaker Output 100 V |
||
Connector |
Euro style pluggable screw terminal, floating |
|
Max / rated PLE-1MA120 |
180 W / 120 W |
|
Loudspeaker Output 4 ohm |
|
|
Connector |
Euro style pluggable screw terminal, floating |
|
PLE-1MA120-EU |
22 V (120 W) |
|
Mechanical |
|
|
Dimensions (H x W x D) |
100 x 430 x 270 mm (19" wide, 2U high) |
|
Mounting |
Stand-alone, 19" rack |
|
Color |
Charcoal |
|
Weight |
||
PLE-1MA120-EU |
Approx. 10.5 kg |
|
Environmental |
||
Operating temperature |
-10 ºC to +45 ºC |
|
Storage temperature |
-40 ºC to +70 ºC |
|
Relative humidity |
<95% |
|
Acoustic noise level of fan (PLE‑1MA120-EU) |
<33 dB SPL @ 1 m |
