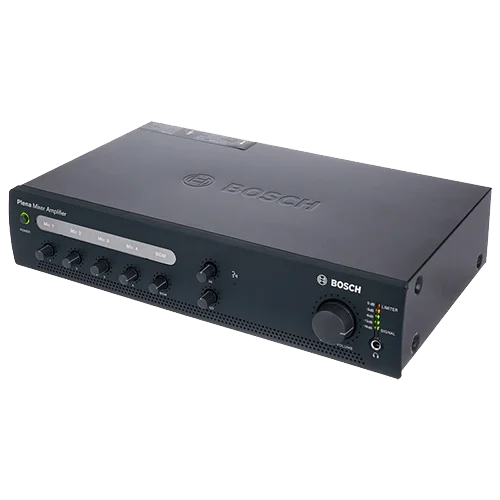

PLE-1ME120-EU

Bosch PLE-1ME120-EU 120W Plena Mixer Amplifier, 4 microphones and background music (BGM) input, Announcement only output, 3‑wire volume override, PTT (push to talk), 2‑tone chime, Built-In Standard Headphone Output, Loudspeaker output 4 ohm: 22 V (120 W), Frequency response (Line) : 60 Hz to 20 kHz (+1/‑3 dB @ ‑10 dB), Frequency response (Mic.) : 70 Hz to 20 kHz (+1/‑3 dB @‑10 dB).

https://www.esco.pk/web/image/product.template/3387/image_1920?unique=aff3af3

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    Bosch

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    Mixer Amplifier

    Plena Mixer Amplifier 120 W, 100V

    Personalized settings

    Detachable label where the user can write the names for inputs

    Indicate preferred settings on the front panel

    Loudspeaker Output

    Max/rated : 180 W / 120 W

    Loudspeaker output 4 ohm : 22 V (120 W)

    Performance

    Frequency response (Line) : 60 Hz to 20 kHz

    Frequency response (Mic.) : 70 Hz to 20 kHz

    Distortion <1% @ rated output power

    Microphone and line inputs

    4 microphone/ line inputs, plus music source input, Input 1 PTT (push to talk)

    Applications

    Restaurants, Offices, Warehouses, Shops, Schools

    Government ~ Military, Public Offices

    Power

    230 VAC ±10%, 50/60 Hz, 120 Watt, 100V Constant Voltage, 400 VA, 10 A

    Separate 100 V call-only output channel for Announcement only

    Controls and indicators

    On/off switch, Power on LED, LED VU meter for master output

    Master volume knob, Knob for treble level, Knob for bass level

    Headphone socket, Four volume knobs for microphone inputs

    Mains power supply

    Voltage

    230 VAC ±10%, 50/60 Hz (reduced power at lower mains voltage)

    Inrush current PLE-1ME120-EU

    10 A

    Power Consumption

    PLE-1ME120-EU

    400 VA

    Performance

    Frequency response (Line)

    60 Hz to 20 kHz (+1/‑3 dB @ ‑10 dB ref. rated output)

    Frequency response (Mic.)

    70 Hz to 20 kHz (+1/‑3 dB @ ‑10 dB ref. rated output)

    Distortion

    <1% @ rated output power, 1 kHz

    Bass Control

    Max. ± 8 dB

    Treble Control

    Max. ± 8 dB

    Mic/Line input

    4 x

    Input 1 (Push-to-talk contact with ducking functionality)

    5‑pin Euro style, balanced, phantom

    Input 2

    3‑pin Euro style, balanced, phantom

    Input 3 and 4

    TRS Jack (1/4, 6.3mm) balanced

    Sensitivity

    1 mV (mic); 300mV (line)

    Impedance

    >1 kohm (mic); >5 kohm (line)

    Dynamic range

    93 dB

    S/N (flat at max volume)

    >63 dB (mic); >70 dB (line)

    S/N (flat at min volume/muted)

    >75 dB

    CMRR (mic)

    >40 dB (50 Hz to 20 kHz)

    Headroom

    >25 dB

    Speech filter

    -3 dB @ 315 Hz, high-pass,

    6 dB/oct

    Phantom power supply

    16 V via 1.2 kohm (mic)

    Music input



    Connector

    Cinch, stereo converted to mono

    Sensitivity

    200 mV

    Impedance

    22 kohm

    S/N (flat at max volume)

    >75 dB

    S/N (flat at min volume/muted)

    >80 dB

    Headroom

    >25 dB

    Loudspeaker output 100 V

    Connector

    Screw terminal, floating

    Max / rated PLE-1ME120

    180 W / 120 W

    Loudspeaker output 4 ohm



    Connector

    Screw terminal, floating



    PLE-1ME120-EU

    22 V (120 W)



    Mechanical



    Dimensions (H x W x D)

    100 x 430 x 270 mm (19" wide, 2U high)

    Mounting

    Stand-alone, 19" rack

    Color

    Charcoal

    Weight

    PLE-1ME120-EU

    Approx. 8.9 kg

    Environmental

    Operating temperature

    -10 ºC to +45 ºC

    Storage temperature

    -40 ºC to +70 ºC

    Relative humidity

    <95%
