PLE-2CS

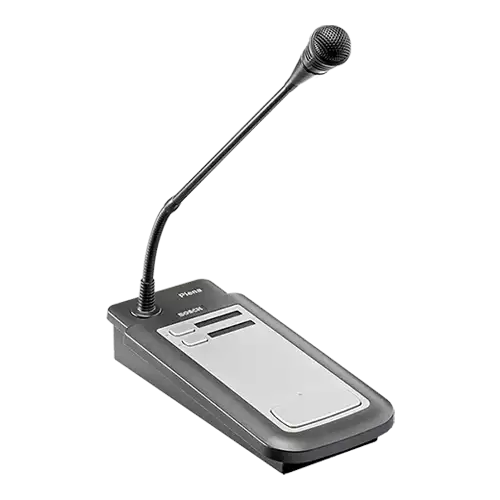

Bosch PLE‑2CS Plena Two-zone Call Station, metal base design, a flexible microphone stem with a unidirectional condenser microphone and zone selection, Nominal sensitivity : 85 dB SPL, Nominal output level : 700 mV, Input sound level (max) : 110 dB SPL, Frequency response : 100 Hz to 16 kHz

https://www.esco.pk/web/image/product.template/3369/image_1920?unique=c342f83

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Invalid email
    We'll notify you once the product is back in stock.
    Added to your wishlist
    Contact Us
    Bosch
    ​

    Gain, Speech Filter and Intelligibility

    This call station features selectable gain, a selectable speech filter, and a limiter for improved intelligibility.

    Loop-through

    With the loop-through RJ-45 connector, it is possible to daisy chain multiple call stations.

    Range

    The call station has a balanced line level output, giving it a maximum range of 200 meters from the mixer, when using CAT-5 extension cables.

    Controls and Indicators

     2 x status LEDs, PTT key, 2 x zone selection keys, DIP switches

     Rotary volume control, 2 x zone selection LEDs

    Dip Switches and Status

    DIP switches at the base of the call station select different microphone gain levels, chimes, and the speech filter.

    Priority

    The priority is automatic i.e. the call station nearest the mixer has priority and can override a call station further from the mixer. When a call is being made by a higher priority call station, a yellow light will display on the lower priority call stations

    Technical Specifications

    Voltage range

    24 VDC supplied by PLE mixer amplifier or mixer

    Current  consumption

    <30 mA

    Nominal sensitivity

    85 dB SPL (gain preset 0 dB)

    Nominal output level

    700 mV

    Input sound level (max)

    110 dB SPL

    Gain preset

    -15 / 0 / +6 dB

    Limiter threshold

    2 V

    Compression ratio limiter

    1:20

    Distortion

    <0.6% (maximum input)

    Input noise level (equiv.)

    25 dB SPLA

    Frequency response

    100 Hz to 16 kHz

    Speech filter

    -3 dB at 315 Hz, high-pass, 6 dB/oct

    Output impedance

    200 ohm

    Chimes

    6

    Base dimensions (H x W x D)

    without microphone

    40 x 100 x 235 mm
    (1.57 x 3.97 x  9.25 in)

    Stem length with microphone

    390 mm (15.35 in)

    Cable length

    5 m (16.4 ft)

    Weight

    Approx. 1 kg (2.2 lb)

    Mounting

    Standalone

    Color

    Charcoal with silver

    Operating temperature

    -10 ºC to +45 ºC (14 ºF to +113 ºF)

    Storage temperature

    -40 ºC to +70 ºC (-40 ºF to +158 ºF)

    Relative humidity

    <95%

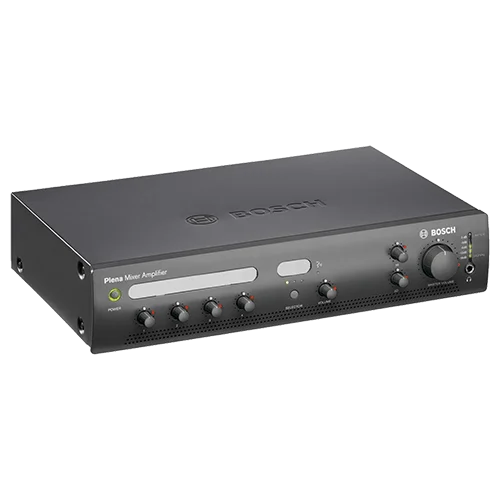

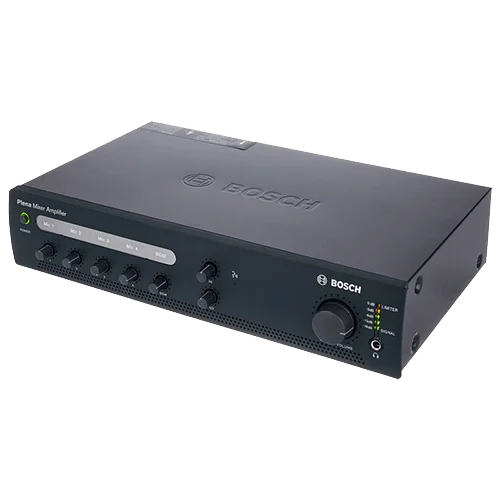

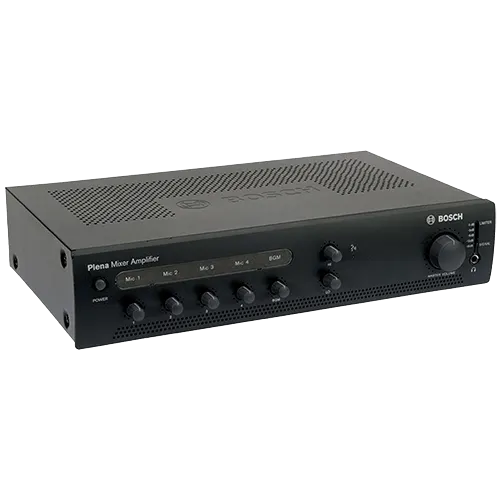

    Suggested Alternatives
