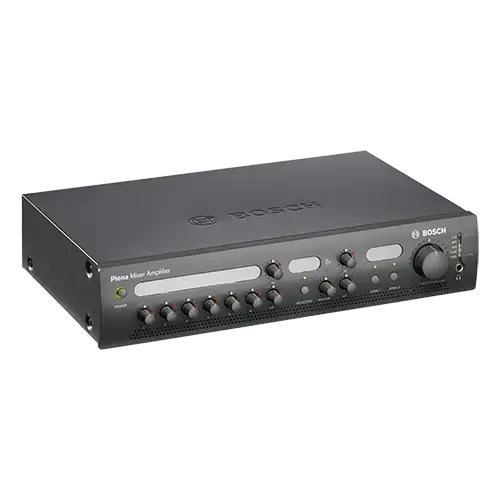

PLE-2MA240-EU

Bosch PLE‑2MA240‑EU Plena Mixer Amplifier, 240W, 6 microphone/line inputs plus 3 music source inputs, 100 V, telephone and a call station input with priority & VOX, 2 zones and announcement only output, 2-tone chime, Voice activated emergency override, High output power 240 Watts.

https://www.esco.pk/web/image/product.template/3367/image_1920?unique=b29e77c

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Invalid email
    We'll notify you once the product is back in stock.
    Added to your wishlist
    Contact Us
    Bosch
    ​

    Mixer Amplifier

    Plena Mixer Amplifier 240 W, 100V

    Personalized settings

    Detachable label where the user can write the names for inputs

    Indicate preferred settings on the front panel

    Loudspeaker Output

    Max/rated : 360 W / 240 W

    Loudspeaker output 8 ohm : 44 V (240 W)

    Zone

    The mixer amplifier has two zone outputs. Announcements from the both PLE-2CS two-zone call station or tel/100 V input are routed to zone 1 or zone 2, or both.

    Performance

    Frequency response (Line) : 50 Hz to 20 kHz (+1/‑3 dB @ ‑10 dB ref. rated output)

    Distortion <1% @ rated output power, 1 kHz

    Low Control Max -12/+12 dB, Hi Control Max -12/+12 dB

    Microphone and line inputs

    6 microphone/line inputs plus 3 music source inputs, PTT (Push to Talk)

    Power

    115 - 230 VAC ±10%, 50/60 Hz, 9A, 24VDC/6A, 800VA

    100 V, telephone and a call station input with priority & VOX

    Tone Controls

    Tone controls provide separate control for mic/line inputs and music inputs so that the voice on the microphones can be specifically optimized for excellent speech.

    Music inputs

    Separate music inputs are available with their own input selector and volume control. Desired sound for the music source separate from the mic/line inputs.

    Controls and Indicators

    On/off switch, Power on LED, LED VU meter for master output, Master volume knob

    Six volume knobs for microphone inputs, Knob for treble level, Knob for bass level

    Headphone socket, Two zone selector buttons, BGM button, Chime level

    Mains Power Supply

    Voltage

    115 - 230 VAC ±10%, 50/60 Hz

    Inrush Current PLE-2MA240-EU

    9/19 A (230/115 VAC)

    Battery Power Supply

    Voltage

    24 VDC, +10% / -15%

    Current PLE-2MA240-EU

    12 A

    Charge current

    0.5 ADC

    Charge float voltage

    27.3 VDC

    Power Consumption

    PLE-2MA240-EU (mains)

    800 VA

    Performance

    Frequency response

    50 Hz to 20 kHz (+1/‑3 dB @ ‑10 dB ref. rated output)

    Distortion

    <1% @ rated output power, 1 kHz

    Low Control

    Max -12/+12 dB (frequency is setting dependent)

    High Control

    Max -12/+12 dB (frequency is setting dependent)

    RJ-45 Inputs

    2x

    Call station input

    For PLE-2CS(MM)

    Wall panel input

    For PLE-WP3S2Z

    Mic/line input

    6x

    Input 1 (Push-to-talk contact with ducking functionality)

    5-pin Euro style, balanced, phantom 3-pin XLR, balanced, phantom

    Input 2-6 (VOX with ducking functionality on input 2)

    3-pin XLR, balanced, phantom

    Sensitivity

    1 mV (mic); 1 V (line)

    Impedance

    >1 kohm (mic); >5 kohm (line)

    S/N (flat at max volume)

    63 dB

    S/N (flat at min volume/muted)

    >5 dB

    Dynamic range

    93 dB

    S/N (flat at max volume)

    >63 dB (mic); >70 dB (line)

    S/N (flat at min volume/muted)

    >75 dB

    CMRR (mic)

    >40 dB (50 Hz to 20 kHz)

    Headroom

    >17 dB

    Speech filter

    -3 dB @ 315 Hz, high-pass, 6 dB/oct

    Phantom power supply

    16 V via 1.2 kohm (mic)

    Speech filter

    -3 dB @ 315 Hz, high-pass, 6 dB/oct

    VOX (input 1 & 2)

    attack time 150 ms; release time 2 s

    Music inputs

    3x

    Connector

    Cinch, stereo converted to mono

    Sensitivity

    300 mV

    Impedance

    22 kohm

    S/N (flat at max volume)

    >70 dB

    S/N (flat at min volume/muted)

    >75 dB

    Headroom

    >25 dB

    Emergency / Telephone

    1x

    Connector

    7-pin, Euro style pluggable screw terminal

    Sensitivity tel

    1 V maximum

    Sensitivity 100V

    100 V maximum

    Impedance

    >10 kohm

    S/N (flat at max volume)

    >65 dB

    VOX

    threshold 50 mV; attack time 150 ms; release time 2 s

    Insert

    1x

    Connector

    Cinch

    Nominal Level

    1V

    Impedance

    >10 kohm

    Master/music output

    1x

    Connector

    3-pin XLR, balanced

    Nominal level

    1 V

    Impedance

    <100 ohm

    Loudspeaker output 100 V*

    Connector

    Screw, floating

    Max / rated PLE-2MA240-EU

    360 W / 240 W

    Loudspeaker output 8 ohm*

    Connector

    Euro style pluggable screw terminals

    *Subtract 1 dB for 24 V battery operation

    Mechanical

    Dimensions (H x W x D)

    100 x 430 x 270 mm (19" wide, 2U high)

    Mounting

    Stand-alone, 19" rack

    Color

    Charcoal

    Weight

    Weight (PLE-2MA240-EU)

    Approx. 12.5 kg

    Environmental

    Operating temperature

    -10 ºC to +45 ºC

    Storage temperature

    -40 ºC to +70 ºC

    Relative humidity

    <95%

    Acoustic noise level of fan

    <33 dB SPL @ 1m temperature controlled
