EVID-S8.2TB
8-INCH SURFACE-MOUNT SPEAKER PAIR
70/100 V AUDIO · 8 Ω BYPASS · IP54 WEATHER RESISTANCE
EEVID-S8.2TB
8-INCH SURFACE-MOUNT SPEAKER PAIR
70/100 V AUDIO · 8 Ω BYPASS · IP54 WEATHER RESISTANCE
EVID-S8.2TB: Product FAQs

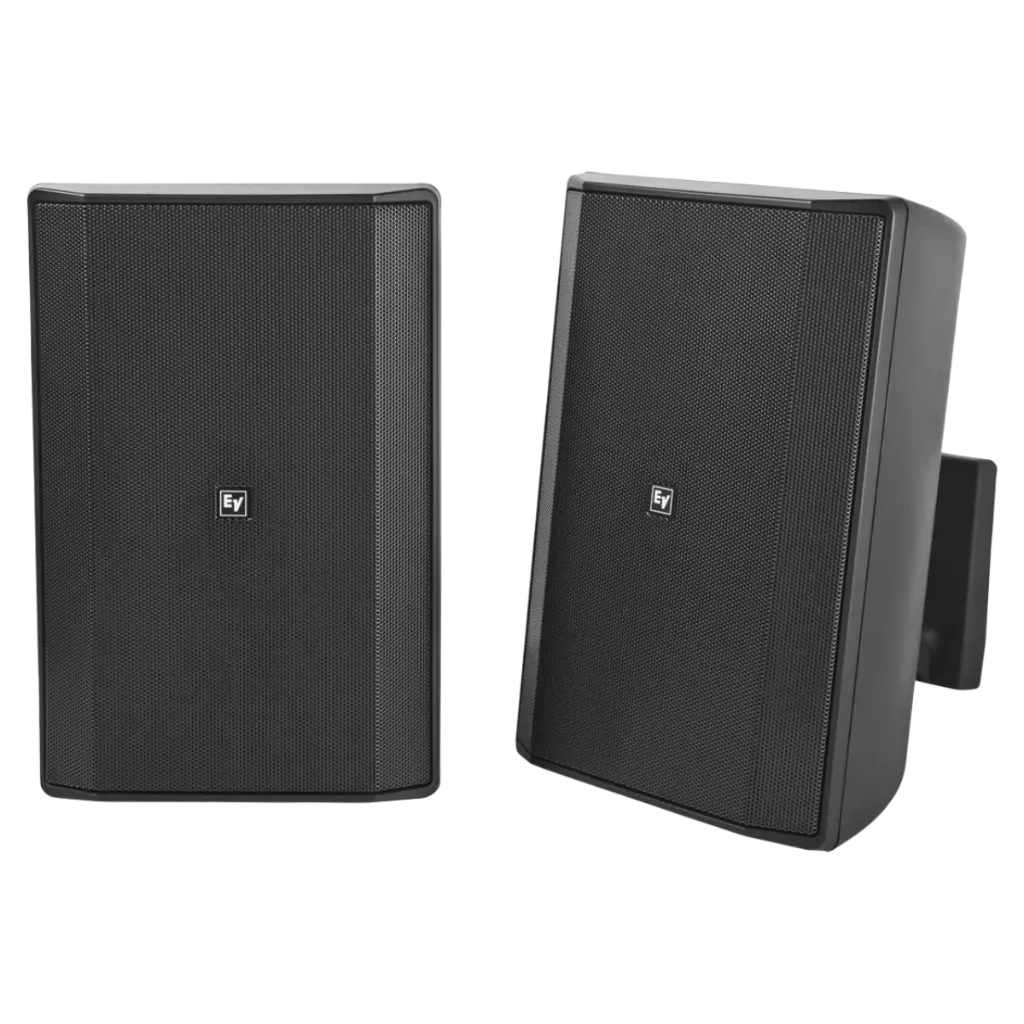

The Electro-Voice EVID-S8.2TB is an 8-inch two-way surface-mount speaker supplied as a black pair. It is designed for background and foreground music, paging and sound reinforcement in restaurants, retail stores, fitness clubs and hospitality venues.
Yes. Its built-in 60 W transformer supports 70 V and 100 V systems, with selectable 15 W, 30 W and 60 W taps. A 7.5 W tap is available for 70 V systems only. An 8-ohm bypass also supports low-impedance operation.
Yes. The EVID-S8.2TB has an IP54-rated enclosure for indoor and outdoor applications. Its included mounting system supports wall or ceiling installation, with 90° horizontal and 45° vertical adjustment.
The EVID-S8.2TB comes with a pre-assembled mounting system for wall or ceiling installation. It allows 90° horizontal and 45° vertical adjustment to position the speakers. Mounting brackets and a 5 mm Allen wrench are included.
Electronic Security Company (ESCO) is the authorized distributor for Bosch, Dynacord and Electro-Voice systems across Pakistan. ESCO supplies, designs and installs professional distributed audio solutions for offices, hotels, restaurants, retail spaces and auditoriums, with genuine warranty support and nationwide after-sales service.
Built for Commercial Audio Installation
Explore the EVID-S8.2TB’s enclosure, mounting and connection features for commercial audio installations.Paintable ABS Enclosure
The fire-rated ABS enclosure can be painted to match the installation décor. The EVID-S8.2TB comes in black RAL 9004.
Corrosion-Resistant Grille
A zinc-plated, powder-coated grille provides corrosion resistance as part of the speaker’s weather-resistant construction.
Concealed Wall-Bracket Wiring
Electrical connections pass through the wall-mounted portion of the mounting system, allowing wiring to remain hidden for a clean installation.
Quick-Attach Mounting
The ball-and-socket mounting system features quick attachment and detachment, with the support bracket integrated into the enclosure.
Locking Euroblock Connections
Removable locking 4-pin Euroblock connectors provide an additional connection option and support wiring to further speakers in a distributed line.
Protected Bypass Selection
A rear-panel switch selects transformer taps or 8-ohm bypass operation. The bypass selection is protected by a safety screw.
Commercial Audio Applications
The Electro-Voice EVID-S8.2TB surface-mount speaker pair is designed for background and foreground music, paging and sound reinforcement across a range of commercial spaces.
Restaurants, Bars & Patios
Support background music, foreground music and paging in dining areas, bars and outdoor patio spaces.
Retail & Hospitality
Provide music and paging in retail stores and hospitality venues using a surface-mount speaker system.
Fitness & Leisure Venues
Use the EVID-S8.2TB for music and sound reinforcement in fitness clubs, theme parks and leisure venues.
| Specification | Details |
|---|---|
| Brand | Electro-Voice |
| Model | EVID-S8.2TB |
| Manufacturer Part Number | F.01U.332.742 |
| Speaker Type | Two-way, full-range surface-mount loudspeaker |
| Colour | Black (RAL 9004) |
| Packaged Quantity | 2 speakers (pair) |
| LF Driver | 8-inch (203 mm) |
| HF Driver | 1-inch (25 mm) |
| Frequency Response (−3 dB) | 70 Hz–20 kHz, half-space (wall mounting) |
| Frequency Response (−10 dB) | 50 Hz–20 kHz, half-space (wall mounting) |
| Sensitivity | 90 dB, 1 W/1 m, averaged 100 Hz–10 kHz, half-space |
| Maximum SPL (Calculated) | 110 dB; 116 dB peak |
| Power Handling | 90 W continuous pink noise (100 hours); 360 W peak |
| Coverage Angle | 90° horizontal × 90° vertical |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6 Ω |
| Transformer Rating | 60 W, 70 V/100 V |
| Transformer Taps — 70 V | 7.5 W, 15 W, 30 W, 60 W |
| Transformer Taps — 100 V | 15 W, 30 W, 60 W |
| Low-Impedance Operation | 8 Ω bypass |
| Recommended High-Pass Filter | 50 Hz, 24 dB/octave |
| Connections | Captive screws on wall bracket; removable locking 4-pin Euroblock connection with provision for additional speakers |
| Maximum Wire Size | 12 AWG (2.5 mm, as specified in datasheet) |
| Enclosure Material | Fire-rated ABS plastic |
| Grille | Zinc-plated and powder-coated for corrosion resistance |
| Weather Resistance | IP54, per IEC 60529 |
| Mounting Adjustment | 90° horizontal rotation; 45° vertical rotation |
| Dimensions (H × W × D) | 390 × 250 × 223 mm, without bracket |
| Net Weight | 5.8 kg per speaker, without bracket |
| Shipping Weight | 14.8 kg per pair |
| Included Hardware | Mounting bracket and 5 mm Allen wrench |
