PVA-15CST

PVA-15CST

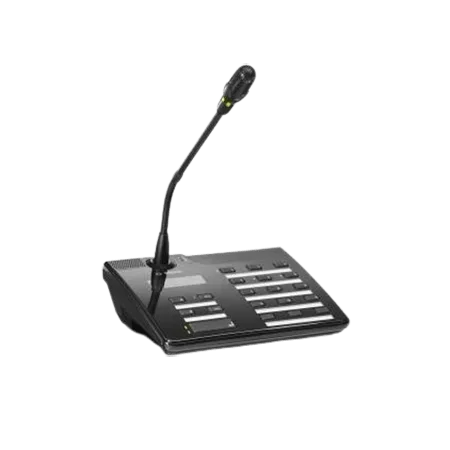

Bosch PVA-15CST Call station for the PAVIRO system, gooseneck, microphone with pop shield and permanent monitoring, Call station with soft touch button for PAVIRO system, 15 freely programmable buttons, Customization via built-in display and keys, Provision for installing emergency button and key switch, EN 54-16 system certification, 1 CST BUS port (Control data + Audio + Power supply, RJ-45), 1 audio source (line level, phone jack), 1 microphone port (phone jack), 15-58 V DC Power Input.

Paviro Call Station

Bosch PVA-15CST Call station for the PAVIRO system

 Programmable Buttons

5 pre-programmed, 15 programmable zone/function keys

Microphone

Nominal acoustic input level: 85 dBSPL

Frequency response: 250 Hz - 10 kHz (-6dB)

Signal to noise ratio: > 60dB

Technical Specifications

Electrical

CAN BUS port

10, 20, or 62.5 kbit/s, 1 RJ-45, max. length 1000 m

Maximum mic input level

-21 dBu

Maximum line input level

+4 dBu

Maximum NF output level

+12 dBu

Microphone:

Nominal acoustic input level

Frequency response

Signal to noise ratio



85 dBSPL

• 250 Hz - 10 kHz (-6dB)

• > 60dB

Buttons

5 pre-programmed, 15 programmable zone/function keys

Indicator lights

Power (green), Fault (yellow), Alarm (red)

Green or yellow LED per pre- programmed menu button

Green and red LED per programmable zone/function key

LC display

Back-lit LC display (122 32 pixel)

Ports

1 CST BUS port (Control data + Audio + Power supply, RJ-45)

1 audio source (line level, phone jack)

1 microphone port (phone jack)

1 EXT OUT port (call station extension, RJ-12)

DC power input

15-58 V

Maximum supply current (without call station extensions)

Standby / Idle / Announcement/Alert: 24 V / 80 mA / 1.92 W

Maximum supply current (with 5 call station extensions)

Standby / Idle / Announcement/Alert: 24 V / 190 mA / 4.56 W

Environmental

Operating temperature

-5 °C to +45 °C (+23 °F to +113 °F)

Storage temperature

-40°C to +70 °C (-40 °F to +158 °F)

Humidity (non-condensing)

5% to 90%

Altitude

Up to 2000 m

Mechanical

Dimensions (HxWxD)

166 mm x 200 mm x 66 mm (without microphone)

Weight (net)

0.6 kg

Mounting

Standalone; 19 in. rack

Color

Black
