The Bosch PXI-CORE Edge Controller is a compact, Linux Ubuntu Core-based integration platform for Bosch professional communication systems. Featuring multicore processing, dual Ethernet connectivity, and TPM 2.0 security, it enables app-based integration and connectivity between compatible Bosch systems.

See full specs and details Have a question? 7 answered
Rs. 0 Rs. 0

  • Brand - BOSCH
Request a Quote
BOSCH
BOSCH

Global leader in Public Address, Voice Evacuation and Conference Systems.

Bosch PRAESENSA public address and voice alarm system installation Bosch, Invented for life

Connected Bosch systems

Intelligent integration with the PXI-CORE Edge Controller

BOSCH · EDGE INTEGRATION PLATFORM

PXI-CORE Edge Controller

Compact DIN-rail integration hardware running Linux Ubuntu Core. Provides an app-based platform for compatible Bosch systems; application software and licenses are supplied separately.

  • 24 VDC External Supply
  • 2 × RJ45 Ethernet
  • TPM 2.0 Security

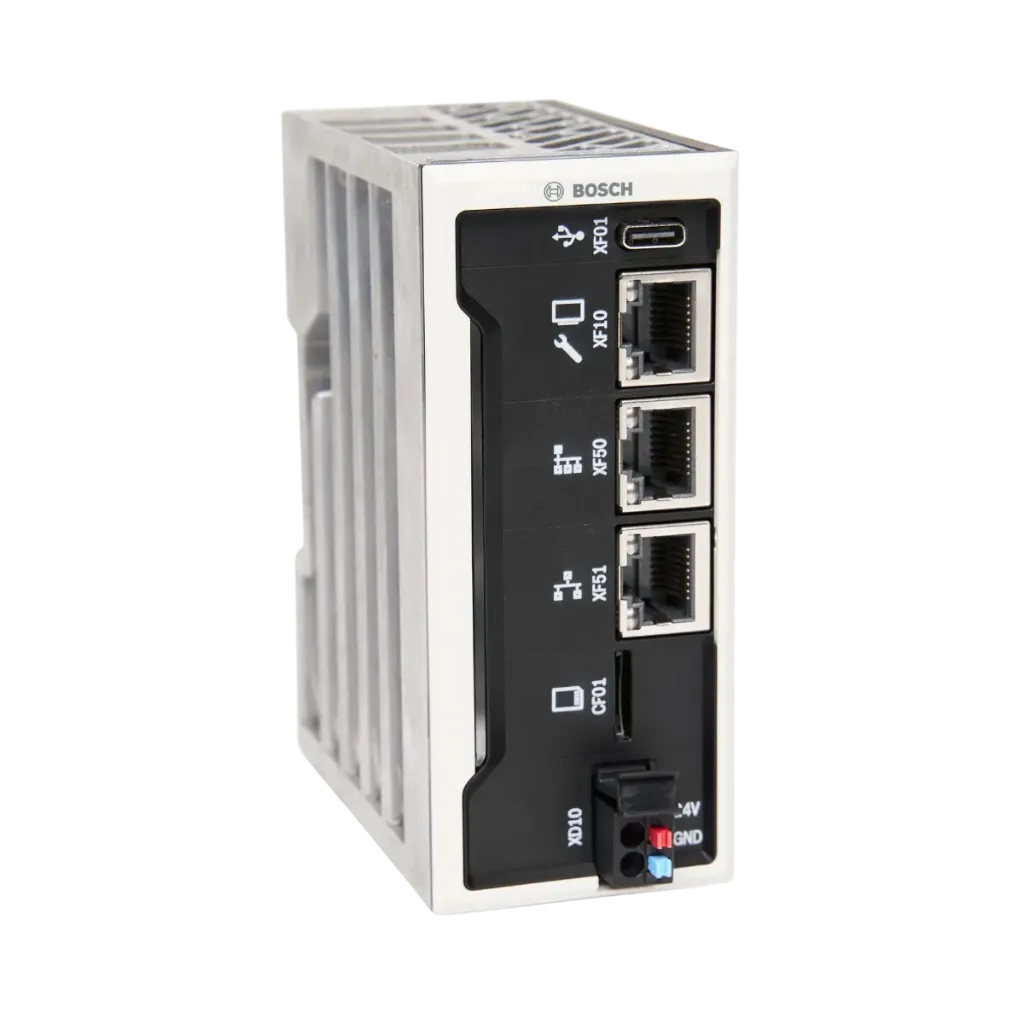

Bosch PXI-CORE Edge Controller, official manufacturer product image

BOSCH · EDGE INTEGRATION CAPABILITIES

Designed for Secure System Integration

Explore how the Bosch PXI-CORE combines an app-based edge platform, secured connectivity and compact industrial hardware for supported Bosch building technology integration projects. The dedicated Intelligent Control application is sold separately.

01 / 06

App-Based Integration Platform

Linux Ubuntu Core provides the hardware and firmware foundation for supported integration applications. Application-specific functions depend on the separately supplied software.

Flexible Integration Foundation
02 / 06

Secure-by-Design Hardware

TPM 2.0, secure boot and secured HTTPS access help protect the controller platform and its configuration interfaces.

Security at the Edge
03 / 06

Dual Network Connectivity

Two Gigabit Ethernet interfaces provide connectivity for supported IP-based system integration architectures, according to Bosch network configuration guidance.

IP-Based Communication
04 / 06

Remote Application Management

The manufacturer describes remote app installation and updates, with a web-based interface for configuration of supported software.

Streamlined Administration
05 / 06

Continuous Operation Design

Designed for 24/7 operation in suitable industrial enclosures, with a compact DIN-rail form factor for integration cabinets.

Built for Always-On Systems
06 / 06

Flexible System Setup

USB Type-C and microSD interfaces provide additional supported service and configuration options alongside Ethernet connectivity.

Practical Device Interfaces

PXI-CORE · SYSTEM INTEGRATION

Integration built around secure connectivity

The Bosch PXI-CORE provides a compact, app-based edge platform for supported integration solutions. Explore the role of its network connection, 24 VDC supply, secure operating environment and separately supplied applications.

Ethernet network

Connect the controller through its main RJ45 interface (XF51).

Bosch PXI-CORE

Ubuntu Core platform · ARM processing · TPM 2.0. Powered separately by 24 VDC.

Supported application

Integration behavior depends on the separately supplied, compatible software app.

Conceptual architecture, not a wiring diagram. System-to-system integration requires a compatible, configured application and supported target systems. A physical Ethernet connection alone does not enable an integration.

01 / 04 · CONNECTIVITY

Main Ethernet connection

XF51 is the primary network interface for PXI-CORE. Connect it to the designated Ethernet network and use an appropriate configuration device to access the controller's web-based management interface.

XF51RJ4510/100/1000 Mbps
Important selection note

PXI-CORE is an integration platform—not a PRAESENSA system controller. The external 24 VDC supply and application-specific software must be considered separately; supported integrations and licensed capabilities depend on the installed app and its documentation.

Bosch-PXI-CORE-Datasheet.pdf
Download
Bosch-PXI-CORE-EU-Declaration-of-Conformity.pdf
Download
Bosch-PXI-CORE-User-Manual.pdf
Download

Key specs

  • Linux Ubuntu Core-based edge controller
  • 64-bit Quad-Core ARM Cortex-A53 processor
  • 2 GB RAM with TPM 2.0 security
  • Dual Gigabit Ethernet connectivity
  • USB Type-C and microSD support
  • 24 VDC power input (external supply required)
  • Compact DIN-rail mounting design
Chat on WhatsApp

Bosch PXI-CORE — Technical Specifications

Explore the technical specifications of the Bosch PXI-CORE Edge Controller, including its ARM-based processing platform, Ethernet connectivity, TPM 2.0 security, 24 VDC power requirements, and environmental operating conditions for professional system integration.

Specification

Value

PRODUCT INFORMATION


Brand

Bosch

Model / CTN

PXI-CORE

Product Number

F.01U.395.004

Product Type

Edge Controller

PROCESSING & SYSTEM


Processor

Zynq UltraScale+, 64-bit, 4 × ARM Cortex-A53

System Platform

Linux Ubuntu Core

RAM

2 GB DRAM

Security Hardware

Trusted Platform Module (TPM) 2.0

ELECTRICAL & POWER


Nominal Supply Voltage

24 VDC SELV/PELV

Permitted Supply Voltage Range

18–31.2 VDC (including tolerances and ripple)

Maximum Current Consumption at 24 VDC

320 mA

Maximum Power Consumption at 24 VDC

7.68 W

Electronic Fuse Protection

eFuse, 2.0 A

Power Connection

2-pin removable terminal block

NETWORK & INTERFACES


Ethernet Interfaces

2 × RJ45 Ethernet

Supported Ethernet Speeds

10/100/1000 Mbps

USB Interface

1 × USB Type-C host (USB 2.0)

Maximum USB Cable Length

3 m

Memory Card Interface

microSD card slot

Maximum microSD Capacity

32 GB

microSD File System

FAT32

Internal Battery Type

CR1025

MECHANICAL


Dimensions (H × W × D)

105 × 45 × 87 mm

Weight

314 g

Ingress Protection

IP20

Mounting Type

DIN-rail mounting

ENVIRONMENTAL


Operating Temperature

−25°C to +55°C (derating applies)

Storage & Transport Temperature

−40°C to +70°C

Relative Humidity

5–95%, non-condensing

Operating Altitude

−500 to +5,000 m

Questions & answers

Know before you buy

Quick answers about the PXI-CORE, and how it compares.

What is the Bosch PXI-CORE Edge Controller used for?
The Bosch PXI-CORE is a compact, Linux Ubuntu Core-based edge controller designed to host supported integration applications. It provides a platform for connecting and coordinating compatible Bosch security and public address systems through IP-based communication. Available functions depend on the installed applications, licenses and system configuration.
Can Bosch PXI-CORE integrate PRAESENSA and PRAESIDEO systems?
Yes. With the supported Bosch Intelligent Control application and appropriate licenses, PXI-CORE can support integration between compatible PRAESENSA and PRAESIDEO systems. This enables configured event and action coordination across the systems, including supported status and control functions. The controller alone does not provide these licensed application functions.
What power supply and network connections does the Bosch PXI-CORE require?
PXI-CORE requires an external nominal 24 VDC SELV/PELV power supply, which is not included with the controller. The manufacturer specifies an allowable supply voltage range of 18 to 31.2 VDC. The unit includes two RJ45 Ethernet connections for network connectivity. The final network arrangement and power supply must follow the manufacturer's documentation.
Why is my PXI-CORE not connecting to or controlling a PRAESENSA system?
First verify the controller's power supply, relevant network connectivity and access permissions. Then check that the supported Intelligent Control application is installed and configured, the PXI-LICB base license is activated, and the required PRAESENSA system license is available. Also review the configured system definitions, events and actions. Actual troubleshooting depends on the reported fault and software version.
What is the difference between Bosch PXI-CORE and a PRAESENSA system controller?
PXI-CORE is an edge computing and integration platform that hosts supported applications, including Intelligent Control. A PRAESENSA system controller performs core control functions within a PRAESENSA public address and voice alarm system. PXI-CORE is not a direct replacement for a PRAESENSA system controller; the two products serve different roles and may work together in a supported integration design.
Does the Bosch PXI-CORE include Intelligent Control software licenses, or must they be purchased separately?
The PXI-CORE hardware should not be assumed to include Intelligent Control licensing. Bosch specifies the PXI-LICB base license for using the Intelligent Control application, plus the relevant system-specific licenses such as PXI-LPRA for PRAESENSA or PXI-LPRS for PRAESIDEO integrations. Licensing quantities depend on the systems being connected. Confirm the required licenses and supplied package before ordering.
What is the Bosch PXI-CORE price in Pakistan, and where can I request a quotation?

For Bosch PXI-CORE pricing, availability and a project quotation in Pakistan, contact ESCO Pakistan. Share the intended integration, connected system models, required licenses and quantity of controllers. ESCO can review the specified configuration and provide a quotation based on current availability and project requirements. Pricing and delivery are subject to confirmation.
