Scout SC-N4U3240-WL 4MP Color Catcher IR Fixed Turret Network Camera, 24/7 Colorful Image, 1/3"CMOS sensor, Colour: 0.003 lux ( F1.6, AGC ON) 0Lux with light, Max 25fps; 4MP (2560*1440), 120dB true WDR, Ultra 265, H.265, Built-in Mic & Speaker, up to 30m (98ft) white light distance, Supports 128 G Micro SD card slot, Digital Defog, 2D/3D DNR, BLC, HLC, IP67, IK10, Support PoE power supply.

Color Catcher Camera

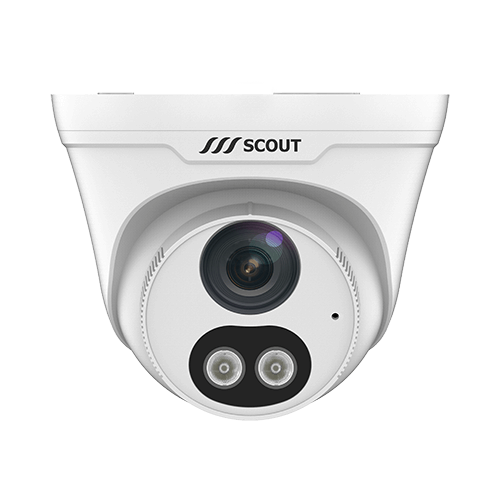

Scout SC-N4U3240-WL 4MP Color Catcher IR Fixed Turret Network Camera

White Light

Up to 30m White Light Distance

Frame Rate

Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296),

Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720)

Smart Features

120dB WDR, 3D DNR, BLC, Digital Defog

On-Board Storage

Built-in memory card slot, support microSD card, up to 128 GB

Audio

Built-in Mic & Speaker

Video Compression

Main stream: Ultra H.265/H.265

Sub stream: H.265/H.264/MJPEG

Protection Level

IP67 Weatherproof & IK10

Camera



Sensor

1/3", 4MP, progressive scan, CMOS



Minimum Illumination

Color: 0.003 lux (F1.6, AGC ON) 0Lux with light



Day/Night

IR-cut filter with auto switch (ICR)



Adjustment Angle

Pan: 0° ~ 360°; Tilt: 0° ~ 80°; Rotate: 0° ~ 360°



S/N

>52dB



WDR

120dB



Lens



Lens Type

2.8mm @F1.6



Iris

Fixed



Field of View (H)

112.9°



Field of View (V)

59.1°



Field of View (D)

121.2°



DORI



DORI Distance

Detect (m): 63; Observe (m): 25.2; Recognize (m): 12.6; Identify (m): 6.3



Illuminator



IR Range

Up to 30m (98ft) IR range



White Light Range

Up to 30m (98ft) white light range



Wavelength

IR850nm



IR On/Off Control

Auto/Manual



Video



Video Compression

Ultra 265, H.265, H.264, MJPEG



H.264 Code Profile

Baseline profile, Main profile, High profile



Frame Rate

Main Stream: 4MP (2688*1520), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max

30fps; 720P (1280*720), Max 30fps;

Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps;



Video Bit Rate

128 Kbps~16 Mbps



OSD

Up to 4 OSDs



Privacy Mask

Up to 4 areas



ROI

Up to 8 areas






White Balance

Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2

Digital Noise Reduction

2D/3D DNR

Smart IR

Support

Flip

Normal / Vertical / Horizontal / 180° / 90°Clockwise / 90°Anti-clockwise

HLC

Supported

BLC

Supported

Defog

Digital Defog

Events

Basic Detection

Cross line, intrusion (based on human body detection), motion detection, Ultra motion detection, tampering alarm, audio detection

General Function

Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication

Audio

Audio Compression

G.711U, G.711A

Audio Bitrate

64 Kbps

Two-way Audio

Support

Suppression

Support

Sampling Rate

8KHZ

Storage

Edge Storage

MicroSD Slot, up to 128GB

Network Storage

ANR, NAS(NFS)

Network

Protocols

IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API, SDK

User/Host

Up to 32 users. 2 user levels: administrator and common user

Security

Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Interface

Built-in Mic

Support

Built-in Speaker

Support

Network

1 * RJ45 10M/100M Base-TX Ethernet

Interface

Power

DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 8.0W

Power Interface

Ø 5.5mm coaxial power plug

Dimensions (Ø x H)

Φ118 x 96mm (Φ4.6” x 3.8”)

Weight

0.30kg (0.66lb)

Working Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: 95% RH (non-condensing)

Storage Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: 95% RH (non-condensing)

Surge Protection

4KV

Reset Button

N/A

Protection

IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)

IK10 (IEC 62262:2002)
