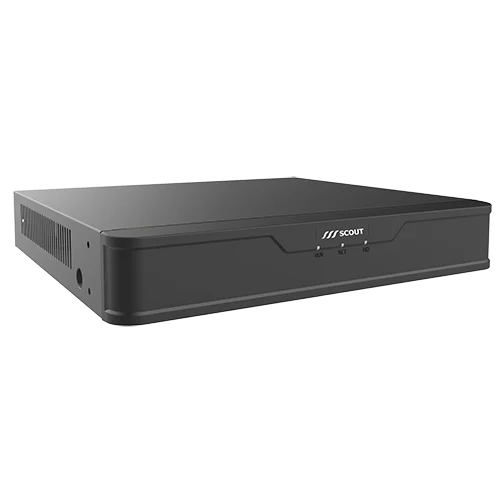

SC-SBN3116-T1

Video/Audio Input

IP Video Input

16-ch

Audio Input

1-ch, RCA

Network

Incoming bandwidth

80Mbps

Outgoing bandwidth

64Mbps

Protocols

TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP

Video/Audio Output

HDMI/VGA Output

HDMI:4K (3840x2160) @30, 1920x1080p@60, 1920x1080p@50

VGA:1920x1080p@60, 1920x1080p@50, 1280x1024@60

Recording Resolution

16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF

Audio Output

1-ch, RCA

Two-way Audio

1-ch, RCA (Using the audio input and output)

Corridor Mode Screen

3/4/5/7/9/10/12/16

Hard Disk

Interface

1 SATA interfaces (Up to 8TB capacity for each disk)

Decoding

Decoding format

Ultra 265/H.265/H.264

Live view/Playback

16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1

Capability

Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30

External Interface

Network Interface

1 RJ-45 10M/100M self-adaptive Ethernet Interface

USB Interface

Rear panel: 1 x USB2.0, 1 x USB3.0

Smart

VCA Detection by Camera

Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, UMD (Ultra Motion Detection)

VCA Search

Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report

People Counting

People Flow Counting, Crowd Density Monitoring

Smart Intrusion Prevention (SIP)

Total 8-ch

General Alarm

General Alarm

Motion, Tampering, Human Body Detection, Video Loss, Alarm Input

Alert Alarm

IP Conflict, Network Disconnected, Disk Abnormal, Illegal Access, Hard Disk Full, Recording/Snapshot Abnormal

General

Power Supply

12V DC Power Consumption: ≤ 6W (without HDD)

Working Environment

-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)

Dimensions (W×D×H)

260mm × 222mm × 47mm (10.2" × 8.7" × 1.8")

Weight (without HDD)

≤ 0.98Kg (2.16lb)
