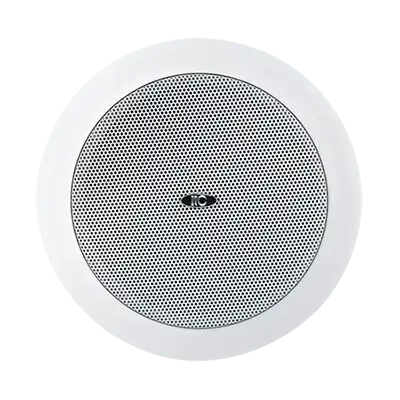

T-105U
ITC T-105U Ceiling Speaker (1.5W-3W-6W), Power taps @100V: 1.5W/3W/6W, @70V: 0.75W/1.5W/3W, SPL(1W/1M): 89dB, Frequency response (-10dB): 80-18KHz, Speaker driver: 5"×1, Cutout size: 145mm, Dimensions: 172×80mm, Weight: 0.75Kg.
Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.
Loudspeaker Type
ITC T-105U 6W Ceiling Speaker
Sound Pressure Level
SPL(1W/1M): 89dB
Power Tapping
Power taps @100V: 1.5W, 3W, 6W
Power taps @70V: 0.75W, 1.5W, 3W
Frequency Response
Frequency Response (-10dB): 80-18KHz
Finish
Iron mesh cover
Speaker driver
Speaker driver: 5"×1.
Description:
High quality ceiling speaker, plastic basin frame, spring pressing system, convenient installation. It is suitable for hotels, hotels, clubs and so on.
Specifications
Power taps @100V |
1.5W, 3W, 6W |
Power taps @70V |
0.75W, 1.5W, 3W |
Impedance |
Black: Com Red: 6.7KΩ |
Green: 3.3KΩ White: 1.7KΩ |
|
SPL(1W/1M) |
89dB |
Frequency response (-10dB) |
80-18KHz |
Speaker driver |
5"×1 |
Cutout size |
145mm |
Dimensions |
172 ×80mm |
Weight |
0.75Kg |
