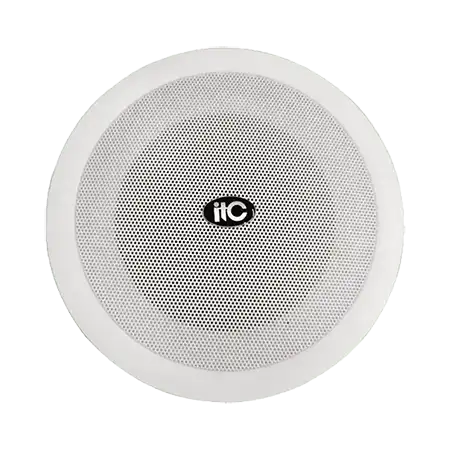

T-105UN

ITC T-105UN 6W Ceiling Speaker, Power taps @100V: 1.5W/3W/6W, Power taps @70V: 0.75W/1.5W/3W, SPL(1W/1M): 92dB±3dB Frequency response: 130-18KHz, Speaker driver: 5"×1.

https://www.esco.pk/web/image/product.template/13351/image_1920?unique=995055e

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Invalid email
    We'll notify you once the product is back in stock.
    Added to your wishlist
    Contact Us
    ITC
    ​

    Loudspeaker Type

    ITC T-105UN 6W Ceiling Speaker

    Sound Pressure Level

    SPL(1W/1M): 92dB±3dB

    Power Tapping

    Power taps @100V: 1.5W, 3W, 6W

    Power taps @70V: 0.75W, 1.5W, 3W

    Frequency Response

    Frequency Response: 130-18KHz

    Speaker driver

    Speaker driver: 5"×1.

    Features:

    * Built-in 100v/70v transformer

    * In-ceiling type loudspeaker

    * 5” speaker unit

    * Power taps 1.5W, 3W & 6W @100V

    Description:

    The T-105UN is a ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers. It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.

    Specifications

    Power taps @100V

    1.5W, 3W, 6W

    Power taps @70V

    0.75W, 1.5W, 3W

    Impedance

    Black: Com  Red: 6.7KΩ

    Green: 3.3KΩ White: 1.7KΩ

    SPL(1W/1M)

    92dB±3dB

    Frequency response

    130-18KHz

    Speaker driver

    5"×1

    Cutout size

    155 mm

    Dimensions

    175X68 mm

    Weight

    0.55Kg
