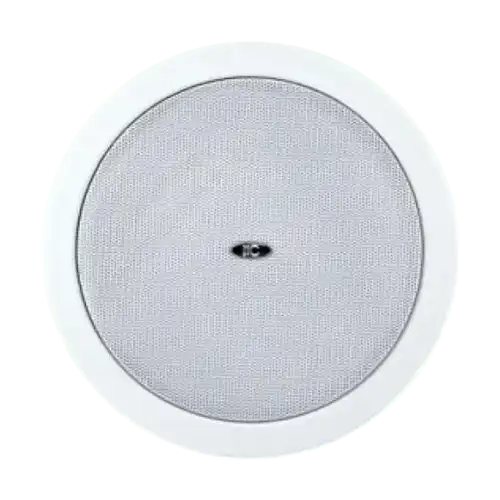

T-106U

ITC T-106U 6" Ceiling Speaker (3W-6W-9W), Power taps @100V: 3W/6W/9W, @70V: 1.5W/3W/4.5W, SPL(1W/1M): 91dB, Max. SPL (Rated W/1M): 101dB, Frequency response (-10dB): 80-18KHz, Speaker driver: 6"×1, Cutout size: 170mm, iron mesh cover.

Loudspeaker Type

ITC T-106U 6" 9W Ceiling Speaker

Sound Pressure Level

SPL(1W/1M) : 91dB

Power Tapping

Power taps @100V: 1.5W, 3W, 6W

Power taps @70V: 0.75W, 1.5W, 3W

Frequency Response

Frequency Response (-10db): 80-18KHz

Finish

Iiron mesh coverron mesh cover

Speaker driver

Speaker driver: 6"×1.

Description:

The T-106U is a ceiling speaker built-in 70v/100v transformer. The 70V/100V transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers. It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.

Specifications

Power Taps @100V

3W, 6W, 9W

Power Taps @70V

1.5W, 3W, 4.5W

Impedance

Black: Com Red:3.3KΩ

Green:1.7KΩ White:1.1KΩ

SPL(1W/1M)

91dB

Max. SPL (Rated W/1M)

101dB

Frequency Response (-10dB)

80-18KHz

Finish

iron mesh cover

Speaker Driver

6" x 1

Cutout Size

170mm

Dimensions

200 x 86mm

Weight

0.9Kg

Mounting

Spring-clip
