T-120DTB

ITC T-120DTB 120W Digital Mixer Amplifier with MP3/TUNER/Bluetooth (Phone Jack Mic Input), 1 EMC input, 2 AUX input, 4 MIC input (Unbalanced), Channel priority function EMC>MIC1>MIC2, MIC3, AUX1, AUX2, Bass: ± 10dB at 100Hz, Treble: ± 10dB at 10KHz, THD: < 0.5% (at 1KHz, 1/3 rated power), Overheat protection, overcurrent protection, short circuit protection, ~ 220 -240V/ 50Hz.

https://www.esco.pk/web/image/product.template/13330/image_1920?unique=a11633a

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Invalid email
    We'll notify you once the product is back in stock.
    Added to your wishlist
    Contact Us
    ITC
    ​

    Digital Mixer Amplifier

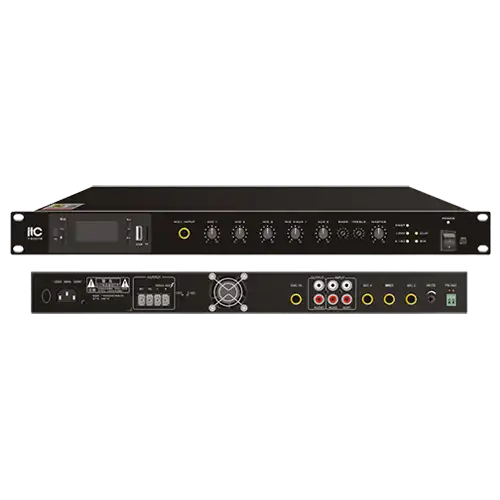

    ITC T-120DTB 120W Digital Mixer Amplifier with MP3/Tuner/Bluetooth

    Speaker Output

    Two output modes: constant voltage output 100V, constant resistance output 4-16Ω.

    MP3 Function Module

    With MP3 function module, support playback of various file formats in U disk such as MP3, WMA, APE, FLAC, WAV, and AAC; with TF card.

    Bluetooth

    Support Mobile phone Bluetooth function, support music name display.

    Protection

    Overheat protection, overcurrent protection, short circuit protection

    Input

    1 channel EMC input, 2 channel AUX input, 4 channel MIC input.

    Channel priority function EMC>MIC1>MIC2, MIC3, AUX1, AUX2.

    Specifications

    Output

    4-16Ω, 100V

    RMS Power

    T-120DTB: 120W

    Input Sensitivity And Impedance

    MIC 1, 2, 3, 4 input: 5mV / 600Ω unbalanced 6.3 connection terminal;

    AUX 1, 2 input: 350mV / 10KΩ unbalanced RCA connection terminal;

    EMC input: 775mv / 10KΩ unbalanced 6.3 connection terminal

    Output Sensitivity & Source Impedance

    MIX OUT: 1000mV / 470Ω unbalanced RCA connection terminal

    Tone

    Bass: ± 10dB at 100Hz;

    Treble: ± 10dB at 10KHz

    Frequency Response

    50Hz ~16KHz (+ 1dB, -3dB)

    SNR

    MIC 1,2,3: 66dB; AUX 1,2: 80dB

    THD

    < 0.5% (at 1KHz, 1/3 rated power)

    Mute Function

    MIC 1 is prior to MIC 2-4, AUX1-2 audio input; EMC is prior to all audio inputs

    Channel Crosstalk Attenuation

    ≥50dB

    Heat Dissipation

    Side-in and rear-out forced fan cooling; fan starts automatically when the device is turned on; infinitely variable speed

    Protection

    Overheat protection, overcurrent protection, short circuit protection

    Power Supply

    ~ 220 -240V / 50Hz

    Power Consumption

    T-120DTB: 180W

    Dimension

    484 ×300 × 44mm
