T-216

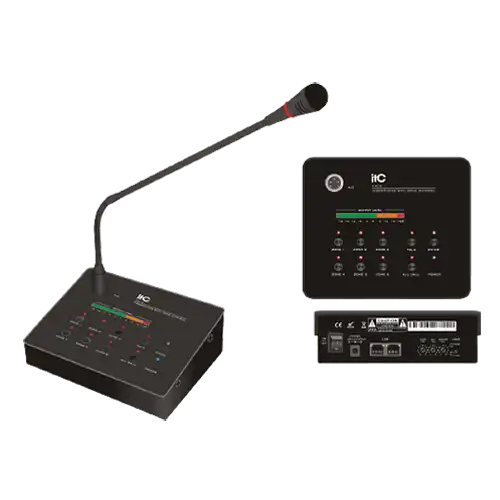

ITC T-216 Six zones paging microphone, Remote paging console for TI-1206S/TI-2406S/TI-3506S/TI-5006S, Zone selection button: User can choose single zone, multi zones, or all zones for paging., Call button and warning tone button, Number of rings selection: 2 sounds or 4 sounds, Auto standby function, 24V DC power supply, RS485 online port, can be cascaded to 6 pieces., MIC/ Chime/ Main volume adjustment, Communication Distance: 1KM, Power Supply: 24V DC.

https://www.esco.pk/web/image/product.template/13332/image_1920?unique=003a51d

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    Features

    * Zone selection button: User can choose single zone, multi zones, or all zones for paging.

    * Call button and warning tone button: Press call button when the warning tone button is on,

    the ring come out firstly.

    * Number of rings selection: 2 sounds or 4 sounds.

    * Address code setting: After equipment powered on, long press button zone 1 to 6 to set their address code. If in red flashing light, it means the setting is ongoing. Same address code for microphone is not allowed. Address code when press “01” has the highest priority and this microphone can override other microphone.

    * Auto standby function: When no signal is detected from mic for one minute, the conversation will close automatically.  And the call button is off.

    * 24V DC power supply.

    * RS485 online port, can be cascaded to 6 pieces.

    * MIC/ Chime/ Main volume adjustment.

    * The Panel is shown with 10 volume levels.

    * Microphone support preemptive and queuing function when online use.

    Specifications

    Mic Type

    Condenser microphone

    Communication Mode

    RS-458 control

    Capacity

    6 ZONE

    Output Level

    1V/600Ω

    Frequency Response

    80-16KHz (+1/-3dB )

    THD

    ≤1%

    Power Consumption

    10W

    Communication Distance

    1KM

    Power Supply

    24V DC

    Dimension

    170x142x54mm

    Weight

    920g
