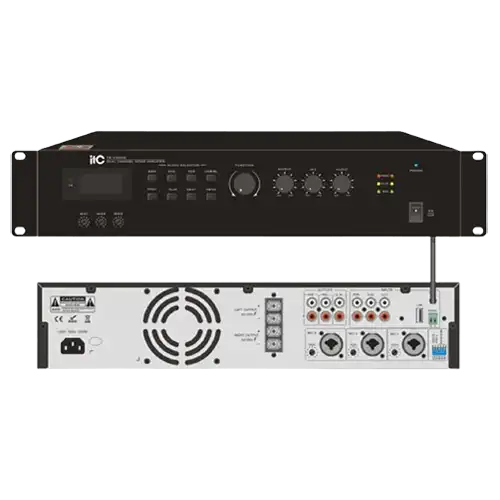

T-2240ME
ITC T-2240ME 2-channel Multimedia Mosque Amplifier, 2x240W, with functions such as delay, reverberation, echo, anti-howling (level 7), tone shift (level 10), and vocal excitation. 3 MIC inputs, Panel LCD screen, Built-in DSP sound effect processing, Support Bluetooth function, SNR: Mic: ≥85dB, Music: ≥85dB, Support USB playback, also suitable for supermarkets, meeting rooms, training rooms, mosques and other places.
Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.
Mosque Amplifier
ITC T-2240ME 2x240W Multimedia Mosque Amplifier
Sound Effect processing
Built-in DSP sound effect processing. With functions such as delay, reverberation, echo, anti-howling (level 7), tone shift (level 10), and vocal excitation.
Protection
Overload, short circuit, overvoltage and under voltage protection.
Bluetooth
Support Bluetooth function, Connect with mobile phones, computers & other devices
Input
Multiple Audio inputs; optical fiber, coaxial, USB, Bluetooth, line, microphone etc, 3-channel RCA line inputs, 3-channel balanced microphone with phantom power inputs
MP3 Function Module
Support USB playback, support MP3, WAV, APE, FLAC and other lossless high-fidelity music formats.
Feature:
* The audio source has multiple inputs such as optical fiber, coaxial, USB, Bluetooth, line, microphone, etc.
* Built-in DSP sound effect processing. With functions such as delay, reverberation, echo, anti-howling (level 7), tone shift (level 10), and vocal excitation.
* The control function is realized through infrared remote control, coded switches, and buttons.
* Panel LCD screen intuitively displays of various functions and working status.
* Provide 3-channel RCA line inputs, 3-channel balanced microphone with phantom power inputs.
* With DSP processor, multiple preset scene modes.
* The volume of each microphone is independently adjustable, the effect is adjustable, and the music volume is independently adjustable Treble, Alto, Bass adjustment.
* Built-in RS485 communication central integrated control function.
* Support USB playback, support MP3, WAV, APE, FLAC and other lossless high-fidelity music formats.
* With the soft start protection function of switch, with voltage limit, short circuit, overload, and overheat protection.
* Built-in 48V phantom switch control function.
* Support Bluetooth function. It can connect with mobile phones, computers and other devices.
* Each microphone input has a gain adjustment function, enabling the best match between microphone and the input state of the amplifier.
* Support constant impedance and constant voltage (4Ω/100V) switching function.
Specification
Rated output power |
2x240W@4R 2x240W@100V |
Input sensitivity and impedance |
MIC1, 2, 3,: ±2.5mV/600Ω- ±200mV/10KΩ, with phantom balanced input) |
DVD: 350mV/10KΩ, (unbalanced input) |
|
VCD: 350mV/10KΩ, (unbalanced input) |
|
BMG: 350mV/10KΩ, (unbalanced input) |
|
Optical fiber, coaxial:1000mV |
|
Output |
SW (150Hz): 1V/470Ω |
PRE: 1V±50mv/470Ω |
|
REC: 200mV ± 20mv/470Ω |
|
Microphone tone |
Bass: ±10dB at 100Hz |
Alto: ±10dB at 2KHz |
|
Treble: ±10dB at 10KHz |
|
Music tone |
Bass: ±10dB at 100Hz |
Alto: ±10dB at 2KHz |
|
Treble: ±10dB at 10KHz |
|
THD |
Power amplifier rated output power 1Kz (under 1/8A power condition) ≤0.1% |
USB playback |
Support MP3, WAV, APE, FLAC |
Communication |
RS485 communication central control integrated control function |
Frequency response |
DVD, VCD, BGM: 20HZ (±3dB)-20KHZ (±3dB) |
Mic: 50HZ (±3dB)-16KHZ (±3dB) |
|
SNR |
Mic: ≥85dB, |
Music: ≥85dB |
|
Protection |
Overload, short circuit, overvoltage and under voltage protection. |
Indicator light |
Power supply, output level |
Supply voltage |
~220V 50Hz/ ~110V/60Hz |
Power loss |
600W |
Weight |
5Kg |
Size (LxWxH) |
430 x 395 x 88mm |
