T-240DTB

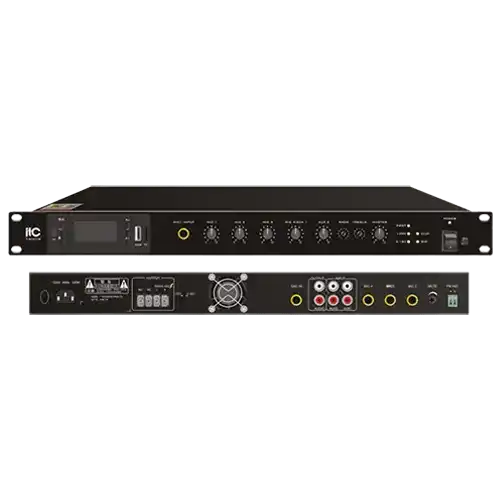

ITC T-240DTB 240W Digital Mixer Amplifier with MP3/TUNER/Bluetooth (Phone Jack Mic Input), 1 EMC input, 2 AUX input, 4 MIC input (Unbalanced), Channel priority function EMC>MIC1>MIC2, MIC3, AUX1, AUX2, Bass: ± 10dB at 100Hz, Treble: ± 10dB at 10KHz, THD: < 0.5% (at 1KHz, 1/3 rated power), Overheat protection, overcurrent protection, short circuit protection, ~ 220 -240V/ 50Hz.

https://www.esco.pk/web/image/product.template/14196/image_1920?unique=003a51d

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    ITC

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    Digital Mixer Amplifier

    ITC T-240DTB 240W Digital Mixer Amplifier with MP3/Tuner/Bluetooth

    Speaker Output

    Two output modes: constant voltage output 100V, constant resistance output 4-16Ω.

    Input

    1 channel EMC input, 2 channel AUX input, 4 channel MIC input.

    Channel priority function EMC>MIC1>MIC2, MIC3, AUX1, AUX2.

    Bluetooth

    Support Mobile phone Bluetooth function, support music name display.

    Protection

    Overheat protection, overcurrent protection, short circuit protection

    MP3 Function Module

    With MP3 function module, support playback of various file formats in U disk such as MP3, WMA, APE, FLAC, WAV, and AAC; with TF card.

    Specifications

    Output

    4-16Ω, 100V

    RMS Power

    T-240DTB: 240W

    Input Sensitivity And Impedance

    MIC 1, 2, 3, 4 input: 5mV / 600Ω unbalanced 6.3 connection terminal;

    AUX 1, 2 input: 350mV / 10KΩ unbalanced RCA connection terminal;

    EMC input: 775mv / 10KΩ unbalanced 6.3 connection terminal

    Output Sensitivity & Source Impedance

    MIX OUT: 1000mV / 470Ω unbalanced RCA connection terminal

    Tone

    Bass: ± 10dB at 100Hz;

    Treble: ± 10dB at 10KHz

    Frequency Response

    50Hz ~16KHz (+ 1dB, -3dB)

    SNR

    MIC 1,2,3: 66dB; AUX 1,2: 80dB

    THD

    < 0.5% (at 1KHz, 1/3 rated power)

    Mute Function

    MIC 1 is prior to MIC 2-4, AUX1-2 audio input; EMC is prior to all audio inputs

    Channel Crosstalk Attenuation

    ≥50dB

    Heat Dissipation

    Side-in and rear-out forced fan cooling; fan starts automatically when the device is turned on; infinitely variable speed

    Protection

    Overheat protection, overcurrent protection, short circuit protection

    Power Supply

    ~ 220 -240V / 50Hz

    Power Consumption

    T-240DTB: 240W

    Dimension

    484 ×300 × 44mm
