T-531B

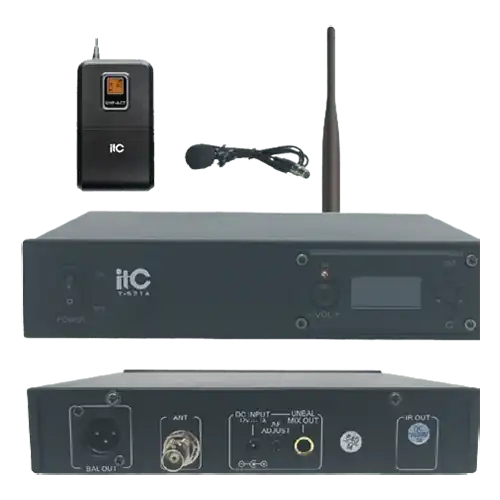

ITC T-531B Wireless Microphone (Single channel wireless microphone with UHF band LCD display), one Lavalier Mic, Frequency Range: UHF 640-857MHz (Two bands total), Modulation: Broadband FM, Adjustable range: 25MHz, Channel Number: 600, Channel Spacing: 250KHz, Frequency Stability: Within ±0.005%, Dynamic Range: 100dB, Maximum Deviation: ±45KHz, Frequency Response: 60-18KHz (±3dB), Comprehensive SNR: >115dB, THD: ≤0.5%.

https://www.esco.pk/web/image/product.template/13700/image_1920?unique=e958f5a

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Invalid email
    We'll notify you once the product is back in stock.
    Added to your wishlist
    Contact Us
    ITC
    ​

    Wireless Microphone

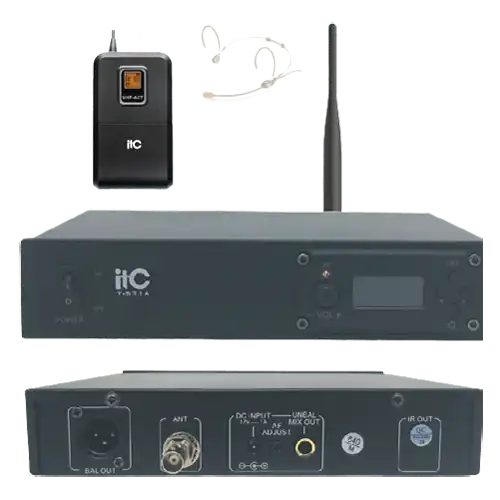

    ITC T-531B Wireless Microphone (Single Channel Wireless Microphone with UHF band LCD display)

    Frequency Range

    With 100 frequencies in each of 640-857MHZ six frequency bands

    Anti-Interference ability

    Superior anti-interference ability can effectively restrain same frequency interference, or noise caused by the external interference.

     Automatic Synchronization

    With infrared frequency automatic synchronization locking transmitter frequency ACT function.

    Microphone

    One Lavalier Microphone

    Operating Distance

    100 meters in the clearing

    Features:

    ·       It adopts 1/2 width and 1U height of EIA international standard metal cabinet, which can be directly mounted to the rack.

    ·       With 100 frequencies in each of 640-857MHZ six frequency bands, advanced PLL frequency synthesis phase-locked loop technology, adjustable frequency and adjustable transmit power to avoid interference frequency.

    ·       Superior anti-interference ability can effectively restrain same frequency interference, or noise caused by the external interference.

    ·       LCD display window, channel, frequency, RF signal strength, AF audio output intensity.

    ·       With infrared frequency automatic synchronization locking transmitter frequency ACT function.

    ·       Receiving antenna adopts rear separated design, single-antenna automatic selection reception, audio code and noise to lock double mute circuit. It is not only long in receiving distance, but also rare to disconnect.

    ·       SQ internal adjustment can increase the receiving sensitivity to increase the receiving distance or reduce the sensitivity to avoid noise interference.

    Specifications:

    Frequency Range

    UHF 640-857MHz total of six segments

    Modulation

    Broadband FM

    Adjustable range

    25MHz

    The number of channel

    600

    Channel spacing

    250KHZ

    Frequency stability

    ± 0.005% or less

    Dynamic range

    100dB

    The maximum deviation

    ± 45KHZ

    Audio response

    60HZ-18KHZ (± 3dB)

    Integrated SNR

    > 115dB

    Comprehensive distortion

    ≤0.5%

    Operating Distance

    100 meters in the clearing

    Receiver mode

    Double frequency conversion super heterodyne

    IF frequency

    110MHz, 10.7MHz

    Wireless Interface

    BNC / 50 ohms

    Sensitivity

    12 dB μV (80dBS / N)

    Sensitivity adjustment range

    12-32 dB μV

    Spurious suppression

    ≥75dB

    Output socket type

    Balanced and unbalanced

    Maximum output level

    +10 dBV

    Power supply

     DC 12 ~ 18V 500mA

    Working temperature

    -40 ℃ ~ - + 80 ℃

    Dimensions

    (W  x  H x D) 210 mm x 44 mm x 147 mm

    Sound head

    Moving-coil microphone

    Capacitive

    Lavalier microphone, headset microphone

    Antenna

    Hand-held microphone with built-in helical antenna. And the transmitter uses a 1/4 wavelength whip antenna

    Output power

    High power 30mW; low power 3mW

    Discrete suppression

    -60dB

    Power supply

    2 AA batteries

    Time

    More than 10 hours at 30mW, more than 15 hours at 3mW
