T-7702A

ITC T-7702A 7-inch Touch Screen Desktop Intercom Paging Microphone, Network Interface: Standard RJ45 input, Support Protocol: TCP/IP, UDP, IGMP (Multicast), Audio Format: MP3, numeric and function keys interface, Support paging to single/multiple zones or all zones, compatible with routers/switches/ bridges/gateways, Built-in 2W full-frequency hi-fi speaker, One φ3.5 headphone jack and one φ3.5 MIC input socket, 40V 50-60Hz (power adapter), DC24V/2A.

https://www.esco.pk/web/image/product.template/13336/image_1920?unique=003a51d

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    Paging Microphone

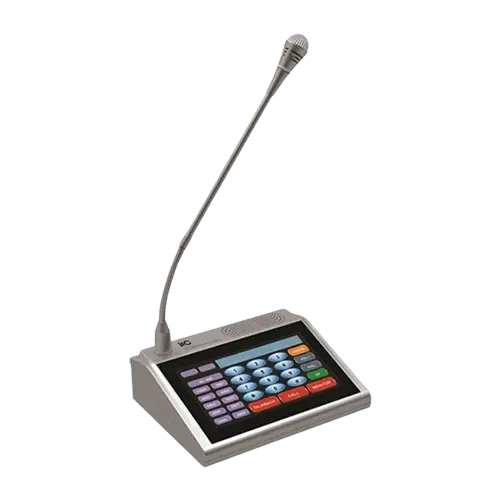

    ITC T-7702A 7-inch Touch Screen Desktop Intercom Paging Microphone

    Function Key

    With numeric & function keys interface. Support paging to single/multiple/all zones.

    Hi-Fi speaker

    Built-in 2W full-frequency hi-fi speaker, to fulfill two-way conversation and network monitoring.

    Compatibility

    Compatible with routers, switches, bridges, gateways, Modem, Internet, 2G, 3G, 4G, multicast, unicast and other arbitrary network structures.

    Description:

    It is applied to a variety of call centers, alarm centers, duty room, leadership offices, meeting rooms and so on, to fulfill one way paging (point to point, to a single zone, or all zones)to a variety of network terminals, two-way intercom and monitoring.

    Specifications

    Network Interface

    Standard RJ45 input

    Support Protocol

    TCP/IP, UDP, IGMP (Multicast)

    Audio Format

    MP3

    Sampling Rate

    8K~48KHz

    Transmission rate

    100Mbps

    Audio Mode

    16 bit  CD quality

    Display Size

    7-inch

    Screen Resolution

    800 x 480 Pixel

    Screen Type

    65K Color DGUS Screen

    Keyboard Type

    virtual QWERTY Keyboard

    Keyboard Input Type

    Touch screen

    Inscribed speaker impedance & power rating

    4Ω, 2W

    THD

    ≤1%

    Frequency response

    80Hz~16KHz +1dB/-3dB

    SNR

    >65dB

    PHONE OUT output impedance

    and power rating

    16Ω,2mW

    LINE OUT Output Level

    1000mV Industry standard wire terminals

    LINE OUT Output Impedance

    470Ω

    LINE IN Input Sensitivity

    350mV  Industry standard wire terminals

    MIC Input Sensitivity (Unbalance)

    10mV

    Short-circuit input

    Dry contact input

    Short-circuit output

    Max 1A/30VDC Dry contact input

    Working Temperature

    5~40

    Working Moisture

    20%~80% Relative humidity,

    without condensation

    Working Consumption

    ≤6W

    Power Input

    ~190-240V 50-60Hz (power adapter)

    DC 24V/2A

    Size

    200×160×60 mm

    Weight

    1.2Kg
