T-774PW

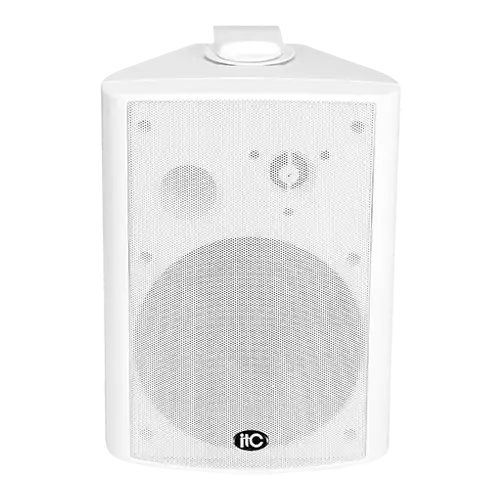

ITC T-774PW 4"+1.5" Two way Wall Mount Speaker, 1.25W-5W-10W-20W@100V+8ohm, 70V/100V/8Ω, SPL(1W/1M): 86dB, Max. SPL (Rated W/1M): 99dB, Frequency Response (-10dB): 130-18KHzABS , body: metal grille, metal bracket, white.

Loudspeaker Type

ITC T-774PW 4"+1.5" Two way Wall Mount Speaker

Power Tapping

Power Taps @100V: 2.5W, 5W, 10W, 20W

Power Taps @70V: 1.25W, 2.5W, 5W, 10W, 20W

Sound Pressure Level

SPL(1W/1M): 86dB

Max. SPL (Rated W/1M): 99dB

Frequency Response

Frequency Response (-10dB): 130-18KHz

Finish

Baffle: ABS, White

Grille: Steel, White

Applications

Suitable for speech and music reproduction in indoor places.

Specifications

Power Taps @100V

2.5W, 5W, 10W, 20W

Power Taps @70V

1.25W, 2.5W, 5W, 10W, 20W

Transformer Impedance

4KΩ / 2KΩ / 1KΩ / 500Ω / 245Ω

Input

70V/100V/8Ω

SPL(1W/1M)

86dB

Max. SPL (Rated W/1M)

99dB

Frequency Response (-10dB)

130-18KHz

Finish

Baffle: ABS, White

Grille: Steel, White

Speaker Driver

4" x 1 1.5" x 1

Dimensions

222 x 160 x 160mm

Weight

2.3kg

Mounting

With mounting bracket fixed by screw
