T-775PW

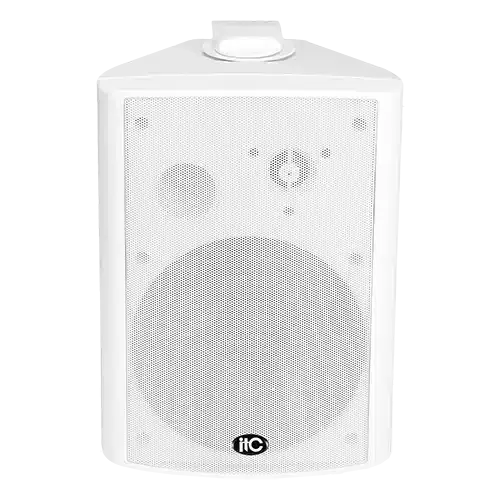

ITC T-775PW 5"+1.5" Two way Wall Mount Speaker, 3.75W-7.5W-15W-30W@100V+8ohm, Transformer Impedance: 2.6KΩ/1.3KΩ/670Ω/330Ω/165Ω, Input: 70V/100V/8Ω, SPL(1W/1M): 92dB, Max. SPL (Rated W/1M): 107dB, Frequency Response (-10dB): 125-18KHzABS body, metal grille, metal bracket, white.

https://www.esco.pk/web/image/product.template/13345/image_1920?unique=003a51d

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    ITC

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    Loudspeaker Type

    ITC T-775PW 5"+1.5" Two Way Wall Mount Speaker

    Power Tapping

    Power Taps @100V: 3.75W, 7.5W, 15W, 30W
    Power Taps @70V:1.9W, 3.75W, 7.5W, 15W, 30W

    Sound Pressure Level

    SPL(1W/1M): 92dB

    Max. SPL (Rated W/1M): 107dB

    Frequency Response

    Frequency Response (-10dB): 125-18KHz

    Finish

    Baffle: ABS, Black/White

    Grille: Steel, Black/White

    Applications

    Suitable for speech and music reproduction in indoor places.

    Specifications

    Power Taps @100V

    3.75W, 7.5W, 15W, 30W

    Power Taps @70V

    1.9W, 3.75W, 7.5W, 15W, 30W

    Transformer Impedance

    2.6KΩ / 1.3KΩ / 670Ω / 330Ω / 165Ω

    Input

    70V/100V/8Ω

    SPL(1W/1M)

    92dB

    Max. SPL (Rated W/1M)

    107dB

    Frequency Response (-10dB)

    125-18KHz

    Finish

    Baffle: ABS, White

    Grille: Steel, White

    Speaker Driver

    5" x 1    1.5" x 1

    Dimensions

    243 x 185 x186mm

    Weight

    2.7kg

    Mounting

    With mounting bracket fixed by screw
