T-776PW

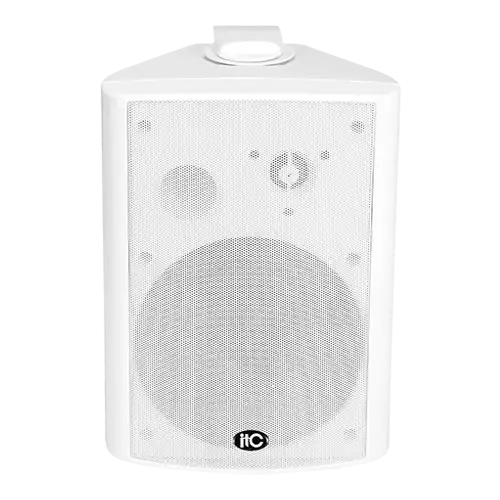

ITC T-776PW 6"+1.5" Two Way Wall Mount Speaker, 5W-10W-20W-40W@100V+8ohm, 2.5W, 5W, 10W, 20W, 40W @ 70V, Transformer Impedance: 2KΩ/1KΩ/500Ω/250Ω/122Ω, Input: 70V/100V/8Ω, SPL(1W/1M): 94dB, Max. SPL (Rated W/1M): 110dBABS body, metal grille, metal bracket, white.

Loudspeaker Type

ITC T-775PW 5"+1.5" Two Way Wall Mount Speaker

Power Tapping

Power Taps @100V: 3.75W, 7.5W, 15W, 30W
Power Taps @70V:1.9W, 3.75W, 7.5W, 15W, 30W

Sound Pressure Level

SPL(1W/1M): 92dB

Max. SPL (Rated W/1M): 107dB

Frequency Response

Frequency Response (-10dB): 125-18KHz

Finish

Baffle: ABS, White

Grille: Steel, White

Applications

Suitable for speech and music reproduction in indoor places.

Specifications

Power Taps @100V

5W, 10W, 20W, 40W

Power Taps @70V

2.5W, 5W, 10W, 20W, 40W

Transformer Impedance

2KΩ / 1KΩ / 500Ω / 250Ω / 122Ω

Input

70V/100V/8Ω

SPL(1W/1M)

94dB

Max. SPL (Rated W/1M)

110dB

Frequency Response (-10dB)

120-18KHz

Finish

Baffle: ABS, White

Grille: Steel, White

Speaker Driver

6" x 1    1.5" x 1

Dimensions

298 x 215 x 225mm

Weight

4.1kg

Mounting

With mounting bracket fixed by screw
