TI-240Z

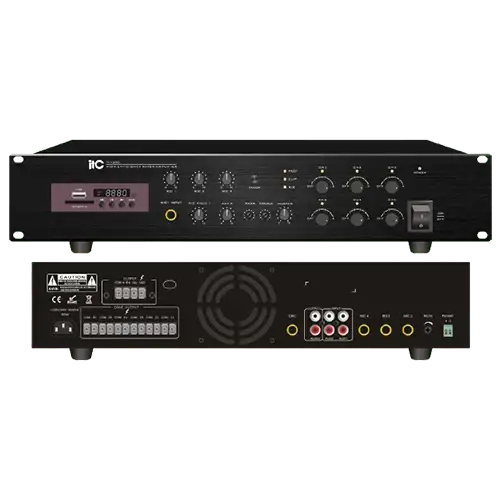

ITC TI-240Z 240W Six Zone Mixer Digital Power Amplifier With Audio Source, Output terminal: 4-16Ω, 100V, Frequency response: 50~16KHz (+1dB,-3dB), 1 EMC Input, 2 AUX Inputs, 4 MIC inputs, SNR: (MIC 1, 2, 3: 66dB, AUX1, 2: 80dB), Mixer power amplifier with MP3/TUNER/Bluetooth, 6 zones independent volume adjustment selection function, Channel Crosstalk Attenuation: ≥50dB, ~220-240V /50Hz.

https://www.esco.pk/web/image/product.template/24530/image_1920?unique=003a51d

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    ITC

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    6 Zones Mixer Amplifier

    ITC TI-240Z 240W Six Zone Mixer Digital Power Amplifier

    Speaker Output

    6 zones independent volume adjustment selection function, Constant voltage output: 100V, 70V, 4-16Ω,

    Energy Saving

    High-efficiency energy-saving switching power supply is perfectly combined with high-energy, energy-saving & ultra-stable design of Class D digital power amplifiers

    Input

     1 EMC input, 2 AUX inputs, 4 MIC inputs.

    Bluetooth

    IR frequency matching function, which can synchronize the frequency of transmitter and receiver conveniently & quickly

    Protection

    The device has good self-protection performance such as short circuit, overload and overheat.

    Features:

    * Standard cabinet design (1U) with delicate SMT process design.

    * With mp3/TUNER/Bluetooth module, the digital screen displays the tracks currently played by USB.

    * With mp3/TUNER/Bluetooth remote control function.

    * 1 EMC input, 2 AUX inputs, 4 MIC inputs.

    * Channel priority function EMC>MIC1>MIC2, MIC3, AUX1, AUX2.

    * Each input has independent volume adjustment, and the total volume has treble, bass adjustment and volume control.

    * With level, overload and protection indicator.

    * The device has good self-protection performance such as short circuit, overload and overheat.

    * Output mode: Constant voltage output 100V, 70V, 4-16Ω.

    * 6 zones independent volume adjustment selection function.

    * EMC input can automatically open the zone function.

    * High-efficiency energy-saving switching power supply is perfectly combined with high-energy, energy-saving and ultra-stable design of Class D digital power

    amplifiers.

    * Wide voltage supply: Can work normally in 180V-240V .

    Output terminal

    4-16Ω, 100V

    Output Power

    240W

    Input sensitivity & impedance

    MIC 1, 2, 3, 4 Input: 5mV / 600Ω Unbalanced 6.3 connector

    AUX 1, 2 Input: 350mV / 10KΩ Unbalanced RCA connector

    EMC Input: 775mV / 10KΩ Unbalanced 6.3 connector

    Output sensitivity & source impedance

    MIX OUT: 1000mV / 470Ω Unbalanced RCA connector

    Tone

    Bass: ±10dB at 100Hz

    Treble: ±10dB at 10KHz

    Frequency response

    50~16KHz (+1dB, -3dB)

    SNR

    MIC 1-3: 66dB; AUX1-2: 80dB

    THD

    < 0.5% (at 1KHz, 1/3 Rated Power)

    Mute function

    MIC 1 takes precedence over MIC 2-4;

    AUX 1-2 audio input EMC takes precedence over all audio inputs

    Independent volume adjustment

    6

    Channel crosstalk attenuation

    ≥50 dB

    Heat dissipation

    Side-in & back-out forced fan cooling.

    The fan starts work when powered on with infinitely variable speed.

    Protection

    Short circuit, overload & overheat

    Power supply

    ~ 220-240V / 50Hz

    Power consumption

    300W

    Weight

    8.0Kg
