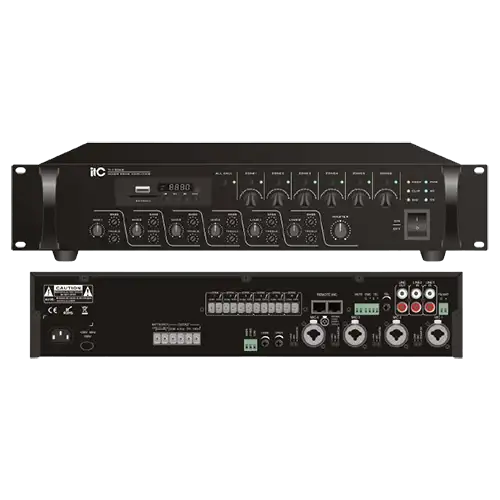

TI-5006S
ITC TI-5006S 500W 6 Zone Mixer Amplifier with MP3/TUNER/BLUETOOTH, 4 mic inputs, 2 line inputs, Speaker Zone 1~6 Output: 85W Max, Constant voltage output: 70V, 100V, rated resistance output: 4-16 Ω, Built in bell, 5 priority functions, THD: ≤ 0.1% at 1KHz, 1/3 rated power, Power Supply: ~110V/60Hz or ~230V/50Hz & DC 24V.
Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.
6 Zones Mixer Amplifier
ITC TI-5006S 500W 6 Zone Mixer Amplifier with MP3/TUNER/BLUETOOTH
Speaker Output
Support 6 zone output, constant voltage 100V output, each zone volume can be adjusted independently.
MP3 Function Module
With MP3 function module, support playback of various file formats in U disk such as MP3, WMA, APE, FLAC, WAV, and AAC; with TF card.
Bluetooth
Integrated Bluetooth module, support playing music through mobile phone Bluetooth.
Protection
It has the function of power fluctuation protection, over-voltage protection and under voltage protection.
Input
4 Channel Microphone and 2 line input, treble and bass can be controlled separately
Description:
6-zone multi-function mixer power amplifier, suitable for small and
medium-sized indoor venues such as small and medium supermarkets, shopping
malls, casual cafes and other small and medium-sized indoor venues for
background music playback and small and medium-sized background music playback
Features:
* 4 Channel Microphone and 2 line input, treble and bass can be controlled separately.
* Mic1- 4 built-in 48V phantom power supply, and switch can be independently controlled.
* Support 1-channel remote microphone input, which can be connected to up to 6 remote zone microphones for remote control zone output.
* Support 1-channel EMC emergency alarm audio signal input interface, with the highest priority.
* Support 1-channel TEL telephone audio input interface, and the volume can be adjusted.
* Configure MP3 remote control, support power-off memory function and MIC recording function.
* With MP3 function module, adopt LCD display, support playback of various file formats in U disk such as MP3, WMA, APE, FLAC, WAV, and AAC; with TF card, support mobile phone Bluetooth function, and can display song names.
* Integrated Bluetooth module, support playing music through mobile phone Bluetooth.
* Integrated tuner module with FM radio port.
* Support 6 zone output, constant voltage 100V output, each zone volume can be adjusted independently.
* Constant voltage output: 70V, 100V, rated resistance output: 4-16 Ω.
* Support 1-channel line output and can be connected with recording or sound reinforcement processor.
* Built in bell, optional tone: 4 tones and 2 tones (built-in), alarm generator.
* When the built-in alarm generator is started, turn off the background music, 6 zone output will be automatically turned on, and the maximum output volume function will be forced to be switched off.
* A variety of indicator lights (signal, the top of the roof, to protect the LED indicator)
* Using fan forcible cooling structure, allowing the machine to work for a long time.
* Support standby power supply 24 V no delay switching function, optional.
* It has the function of power fluctuation protection, over-voltage protection and under voltage protection
Specifications:
Rated Output Power (THD 1%) |
500W |
Speaker Zone 1~6 Output |
85W Max |
Input Sensitivity/Impedance |
5mV 600Ω/350mV 10KΩ BAL |
S/N Ratio |
Better than 75dB |
Frequency Response (±3dB) |
80Hz~16KHz |
Tone Control (Bass:100Hz, Treble:10KHz) |
±10dB |
Phantom Power |
+ 48V |
Input Sensitivity/Impedance |
350mV/47KΩ |
S/N |
Better than 80dB |
Frequency Response (±3dB) |
80Hz~16KHz |
Tone Control (Bass: 100Hz,Treble:10KHz) |
±10dB |
Input Sensitivity/Impedance |
775mV/10KΩ |
S/N |
Better than 75dB |
Frequency Response (±3dB) |
50Hz~16KHz |
Input Sensitivity/Impedance |
775mV/10KΩ |
S/N |
Better than 75dB |
Frequency Response (±3dB) |
80Hz~16KHz |
Pre Amp Out(Mic 1~4, Line 1~2, Tel In, Remote In) |
1V/600Ω |
Remote MIC Sensitivity/Impedance |
775mV/10KΩ |
THD |
≤ 0.1% at 1KHz, 1/3 rated power |
Power Supply |
~110V/60Hz or ~230V/50Hz & DC 24V |
Power Consumption |
750W |
Weight |
9.0Kg |
Dimensions |
484x310x88 mm |
