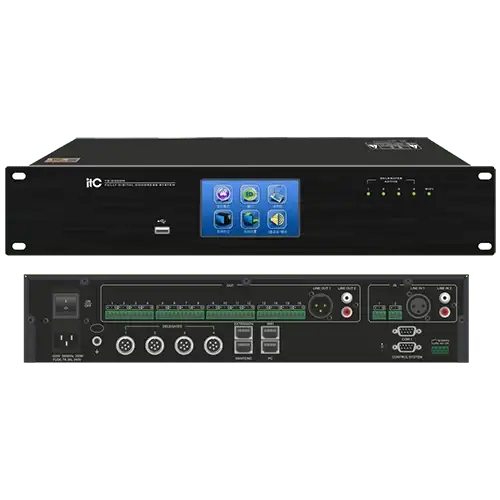

TS-0300M

Feature:

·       Original clock synchronization and transmission technology, audio delay of less than 5ms, sampling rate 48K uncompressed audio transmission.

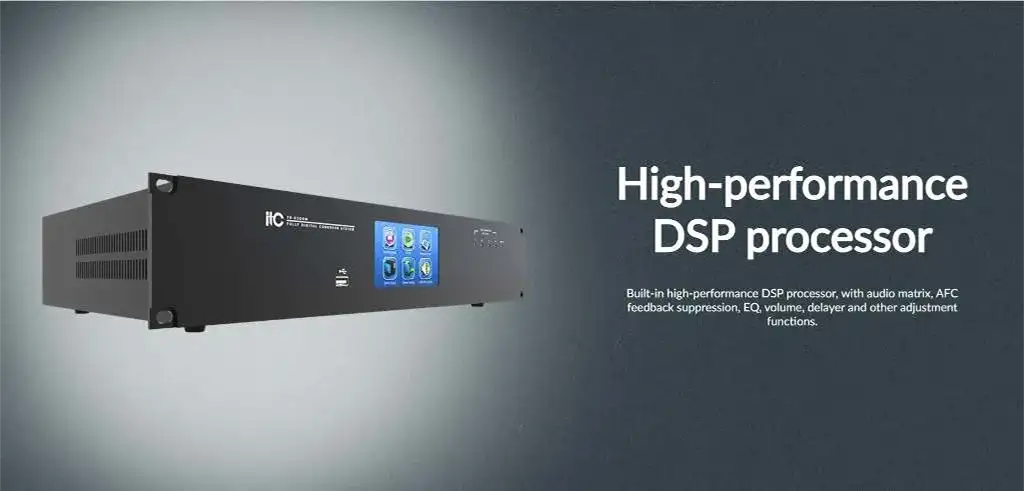

·       Built-in high-performance DSP processor. With audio matrix, howling suppression, EQ, volume, delay, and other adjustment functions.

·       The audio input interface includes 1 RCA, 1 XLR, and 2 Phoenix terminals. The audio output interface includes 1 RCA, 1 XLR, and 16 Phoenix terminals.

·       It supports 16-channel output function, and it can be flexibly configured as role separation output mode, simultaneous interpretation output mode, and phase control output mode. Each output channel can adjust EQ, volume, delay, and other parameters.

·       The 16-channel role separation output mode enables the wired or wireless unit to output independently according to the ID number, which can be used by recording or voice transcription equipment. And the number of output channels can be extended by external equipment.

·       The 16-channel simultaneous interpretation output mode allows interpretation audio to be output independently according to the channel number, which can be used by recording or monitoring equipment. And the number of output channels can be extended by external equipment.

·       The conference host adopts TCP/IP network protocol

·       Control audio matrix parameters through WEB (including EQ, volume, delay, microphone sensitivity, etc.), 16-channel output mode switching, switching microphone synchronization.

·       Large system capacity, the system supports up to 4096 wired conference units and 300 wireless conference units. The maximum number of speeches in the system is 8 wired microphones and 6 wireless microphones.

·       The ring-shaped hand-in-hand function can be realized to ensure that the meeting can work normally when one of the network cables is disconnected or the unit has a problem.

·       The Wi-Fi network interface has a POE power supply function, which can directly connect to wireless AP; it can also extend the number of wireless AP by connecting to a POE network switch to provide a larger wireless coverage.

·       We can check the battery power, Wi-Fi signal and other information status of the online wireless unit by PC software; Support one key to turn off all/one wireless unit(s).

·       Support PELCO-D, VISCA camera control protocol, and it can work with high-definition camera tracking host to realize automatic camera tracking.

·       Four microphone management modes: FIFO (first in first out), NORMAL (normal mode), VOICE (voice control mode), APPLY (application mode).

·       The system has functions such as initiating conference sign-in, voting, election, rating, satisfaction, and customization.

·       It has a 4.3-inch full-color touch screen, which can set or view parameters and perform any touch operation.

·       Powerful ID editing function, which can edit ID for wired unit, wireless unit, interpreter unit, and role separation from host.

·       With USB recording function, it can record and play meeting records.

·       Support integration with paperless systems to realize the unified lifting function of paperless lifting microphones.

·       Support 10-segment EQ adjustment function, 16 multi-function output channels and 2 LINEOUT output channels have 10-segment EQ adjustment function.

Specifications
