TS-0602

ITC TS-0602 High Integration Digital Desktop Discussion Conference Chairman Unit, Heart shaped projection electrets microphone, Frequency response: 80Hz~16KHz, SNR: 1KΩ, Sensitivity: -34±2dB(0dB=1V/Pa,at 1kHz), Maximum SPL: 100dB(THD>3%), SNR: >80dB, THD: <0.1%, Built-in HIFI speaker and volume control, 3.5mm mono jack, Hand-in-hand extension, Controller power supply DC24V.

https://www.esco.pk/web/image/product.template/14194/image_1920?unique=003a51d

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    ITC

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    Chairman Unit

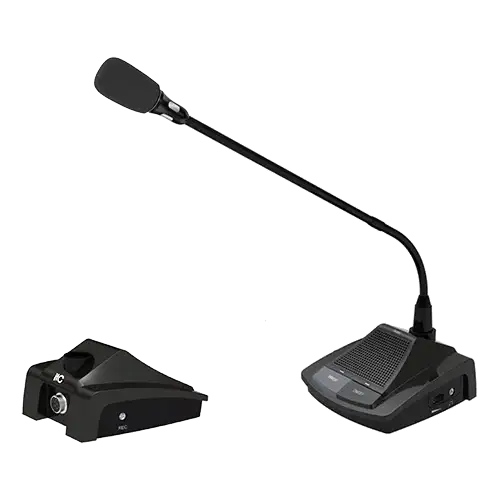

    ITC TS-0602 Discussion Conference Chairman Unit

    Microphone type

    Heart shaped projection electrets microphone

    Built‑in Speaker & Volume control

    Built-in HIFI speaker and volume control; with squeal-suppressed function

    Headphone jack

    3.5mm mono jack

    Video Tracking function

    With discussion / automatic video-tracking function

    Possible-to-Speak Indication

    With ring-shaped speech indicator light that can show the status of speech. Red light stands for speaking , green light stands for waiting for a speech.

    Specifications

    Microphone type

    TS-0602: Heart shaped projection electrets microphone

    Frequency response

    80Hz~16KHz

    SNR

    1KΩ

    Sensitivity

    -34±2dB (0dB=1V/Pa, at 1kHz)

    Maximum SPL

    100dB (THD>3%)

    SNR

    >80dB

    Crosstalk

    >70dB

    Dynamic range

    >80dB

    THD

    <0.1%

    MAX power consumption

    2W

    Headphone load

    8-32Ω

    Headphone volume

    Max 40mW

    Headphone jack

    3.5mm mono jack

    Standard

    IEC60914

    Connector

    Comes with 1.8m aviation 8-core

    Hand-in-hand extension

    YES

    Power supply

    Controller power supply DC24V

    Colour

    Black

    Weight

    0.86kg

    Microphone rod height

    409mm

    Dimension (LxWxH)

    144×128×62mm

    Installation method

    Desktop
