TS-0602A

ITC TS-0602A High Integration Digital Desktop Discussion Conference Delegate Unit, Cardioid electret microphone, Frequency response: 80Hz~16KHz, SNR: 1KΩ, Sensitivity: -34±2dB (0dB=1V/Pa,at 1kHz), Maximum SPL: 100dB(THD>3%), SNR: >80dB, THD: <0.1%, Built-in HIFI speaker and volume control, 3.5mm mono jack, Hand-in-hand extension, Host power supply DC24V.

Rs. 0.00 0.0 PKR Rs. 0.00

This combination does not exist.

Add to Cart

Add to wishlist Compare

Please get in touch for pricing & availability.

Get notified when back in stock

Description
Reviews

Delegate Unit

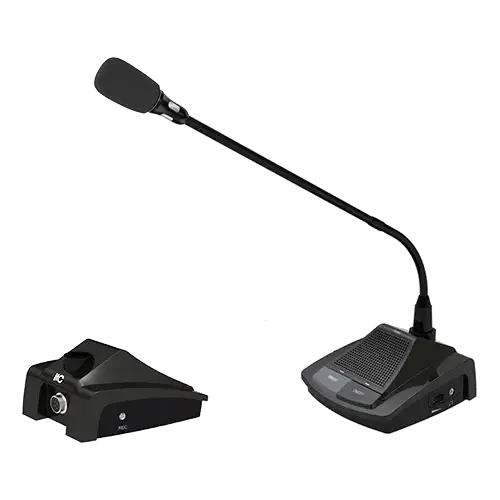

ITC TS-0602A Discussion Conference Delegate Unit

Microphone type

Heart shaped projection electrets microphone

Built‑in Speaker & Volume control

Built-in HIFI speaker and volume control; with squeal-suppressed function

Headphone jack

3.5mm mono jack

Video Tracking function

With discussion / automatic video-tracking function

Possible-to-Speak Indication

With ring-shaped speech indicator light that can show the status of speech. Red light stands for speaking , green light stands for waiting for a speech.

Specifications

Microphone type

TS-0602A: Cardioid electret microphone

Frequency response

80Hz~16KHz

SNR

1KΩ

Sensitivity

-34±2dB (0dB=1V/Pa, at 1kHz)

Maximum SPL

100dB (THD>3%)

SNR

>80dB

Crosstalk

>70dB

Dynamic range

>80dB

THD

<0.1%

MAX power consumption

2W

Headphone load

8-32Ω

Headphone volume

Max 40mW

Headphone jack

3.5mm mono jack

Standard

IEC60914

Connector

Comes with 1.8m aviation 8-core

Hand-in-hand extension

YES

Power supply

Controller power supply DC24V

Colour

Black

Weight

0.86kg

Microphone rod height

409mm

Dimension (LxWxH)

144×128×62mm

Installation method

Desktop
