TS-0605M

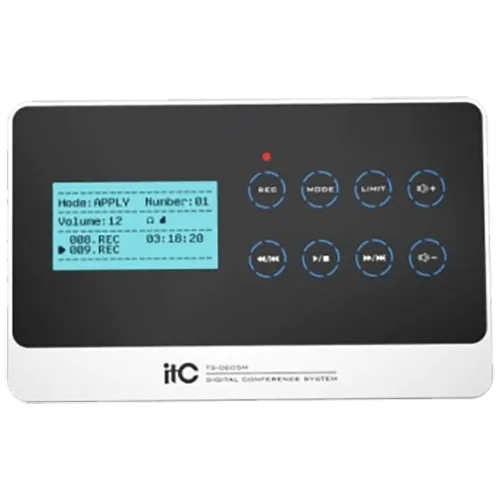

ITC TS-0605M Digital Conference System Extension Controller, Smart touch buttons, easy operation. With recording, playback control, conference mode, quantity switch and volume control buttons, With 4 meeting modes: FFIO/ NORMAL/ FREE/ APPLY, Spokesman quantity limitation: adjustable options for 1/2/4/6, Chairman is not limited, Support Max 30 pieces microphone units, Built-in recording function and SD interface, 3.5mm headphone jack, 24V DC.

https://www.esco.pk/web/image/product.template/13340/image_1920?unique=003a51d

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    ITC

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    Controller

    ITC TS-0605M Digital Conference System Extension Controller

    Meeting Modes

    FFIO, NORMAL, FREE, APPLY.

    Microphone Units

    Support Max 30 pieces microphone units

    Recording

    Built-in recording function and SD interface, can record meeting conversation.

    Power

    Support 24V DC power supply, for the controller and mic units.

    Features

    Smart touch buttons, easy operation. With recording, playback control, conference mode, quantity switch and volume control buttons.

    Specifications

    Microphone Quantity

    ≤30

    Frequency Response

    30Hz~20KHz

    SNR

    >75 dB(A)

    Dynamic Range

    >80 dB

    Crosstalk

    >80 dB

    THD

    <0.05%

    Power Supply

    24V DC

    Audio Input

    LINE IN : 350mV Balance

    Audio Output

    LINE OUT 1: 1V Balance

    Output Load

    >1KΩ

    Static Consumption

    10W

    Output Consumption

    70W

    Connector

    8 PIN aviation plug

    Standards

    IEC60914

    Working Temperature

    -10℃~+60℃

    Working Humidity

    20%~80% relative humidity, no condensation

    Color

    Black

    Dimension(L×W×H)

    210x132x50 mm

    Weight

    1.65kg
