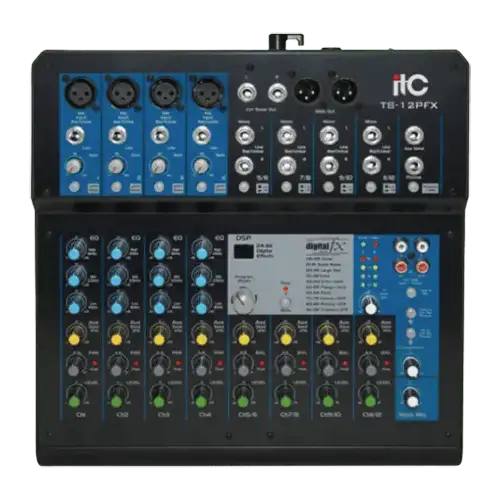

TS-12PFX

TS-12PFX 12 Channel Mixer, Mic input: 4 channels (4 XLR), Line input: 4-channel single plug mono/stereo, Stereo input: 4 sets (8 channels of mono), 1-channel CD/TAPE RCA stereo input interface, 1 stereo main output, 1 auxiliary output, 1 stereo monitor output, 1 earphone monitor output, 1 CD/Tape output, 24-bit DSP audio processor, 20Hz-20kH ±3dB, Phantom Power: 48V with switch, Mic balanced input noise: -119dB (A-weighted), External AC18V/1A (AC 230-240V 50/60Hz) power adapter.

https://www.esco.pk/web/image/product.template/13545/image_1920?unique=003a51d

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    ITC

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    Features

    * Professional compact mixer, ultra-low noise discrete microphone preamplifier and +48V phantom power, powerful functions, & mellifluous sound quality.

    * 4 channels of Mic input interface are compatible with 4-line input interfaces; microphone input interface supports 48V phantom power.

    * 4 sets of stereo linear input can be connected to stereo devices.

    * Each mono input channel has a 3-band EQ with a peak LED indicator.

    * 1 set of stereo main output, 1 set of auxiliary output, 1 set of stereo monitoring output, 1 channel headphone monitoring output, 1 set of CD/Tape output.

    * Built-in 24-bit DSP audio processor, providing 100 pre-set effects.

    Specifications

    Mic Input

    4 channels (4 XLR)

    Line Input

    4-channel single plug mono/stereo automatic switching hybrid interface

    Stereo Input

    4 sets (8 channels of mono)

    CD/Tape Input

    1-channel CD/TAPE RCA stereo input interface

    Output Channel

    1 stereo main output, 1 auxiliary output, 1 stereo monitor output, 1 earphone monitor output, 1 CD/Tape output

    Audio Processor

    24-bit DSP audio processor (including vocal, small house, hall, echo, echo + reverb, plate, chorus GTR, rotating GTR, vibrato GTR type), 100 preset effects

    Phantom Power

    +48V with switch

    Frequency Response

    20Hz-20kHz ± 3dB

    Distortion

    <0.003% (A-weighted)

    Mic Balanced Input Noise

    -119dB (A-weighted)

    Common Mode Rejection Ratio

    60dB

    Single Channel Input Gain

    MIC: 0 to 48dB, LINE: -33 to +15dB

    Stereo Channel Input Gain

    LINE: -8 to +6dB

    Main Mixing Crosstalk

    -87dBu (A-weighted)

    Channel Crosstalk

    -85dBu (A-weighted)

    Maximum Output Level

    +20dBu

    MIC Input High-Pass Filtering

    75Hz, 18dB/oct

    Single Channel Equalization

    High frequency: ±15dB@12KHz

    Medium frequency: ±[email protected]

    Low frequency: ±15dB@80Hz

    Power Supply

    External AC18V/1A (AC 230-240V 50/60Hz) power adapter

    Power Consumption

    ≤18W

    Size

    271×259×54.3 (mm)

    Weight

    1.9Kg
