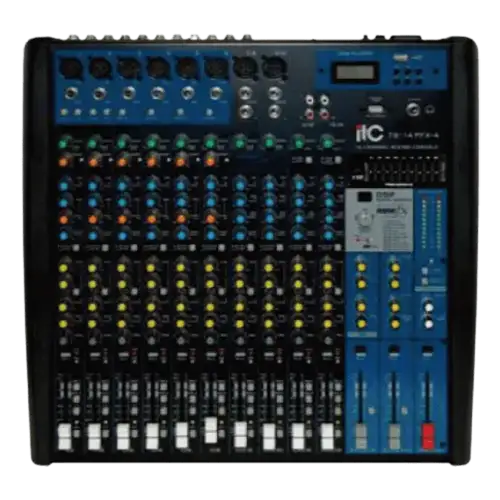

TS-14PFX-4

ITC TS-14PFX-4 14 Channel Mixer with 4 group Professional compact mixer, ultra-low noise discrete microphone preamplifier and +48V phantom power, Mic input: 8 channels (8 XLR interfaces), Line input: 6-channel single plug mono/stereo automatic switching hybrid interface, 2 sets of stereo main output, 4 marshalling outputs, 4 auxiliary outputs, 1 set of stereo monitoring output, 1 earphone monitoring output, 2 effect outputs, 24-bit DSP audio processor, Frequency response: 20Hz-20kHz, ±2dB, Distortion: <0.03% at+0dB,22Hz-22KHz A-weighted, Sensitivity: +21dB~-30dB, AC 100-240V 50/60Hz.

https://www.esco.pk/web/image/product.template/13327/image_1920?unique=003a51d

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    * Professional compact mixer, ultra-low noise discrete microphone preamplifier and +48V phantom power, powerful functions and mellifluous sound quality.

    * 8 channels of Mic input interface are compatible with 6-line input interfaces; microphone input interface supports 48V phantom power.

    * 2 sets of stereo inputs and 4 channels of RCA inputs can be connected to stereo devices.

    * Provide 2 sets of stereo main outputs, 4 marshalling outputs, 4 auxiliary outputs, 1 set of stereo monitoring output, 1 earphone monitoring output, 2 effect outputs.

    * Provide 1 set of main mixing breakpoint insertion, 6 breakpoint insertion, and can be connected to additional processors (compressor, equalizer, limiter, etc.).

    * 13 high-precision carbon film faders with 60mm stroke.

    * Built-in MP3 player supports external U disk playback/recording through the USB interface.

    * Built-in USB sound card can connect to computer for music playback and sound recording.

    * Built-in 24-bit DSP audio processor can provide 100 preset effects.

    * A USB power supply interface can be connected to USB light.

    * Support 7-band graphic equalization fader adjustment.

    Specifications

    Mic input

    8 channels (8 XLR interfaces)

    Line input

    6-channel single plug mono / stereo automatic switching hybrid interface

    Stereo input channel

    2 sets (4 channels of mono), 4 channels of RCA input

    Output channel

    2 sets of stereo main output, 4 marshalling outputs, 4 auxiliary outputs, 1 set of stereo monitoring output, 1 earphone monitoring output, 2 effect outputs.

    INSERT

    1 set of main mix breakpoint insertion, 6 breakpoint insertion

    USB interface

    Playback and recording with a USB disk

    Audio processor

    24-bit DSP audio processor (including vocal, small house, hall, echo, echo + reverb, plate, vocal music board, chorus GTR, rotating GTR, vibrato GTR type), 100 preset effects

    USB sound card port

    Support computer recording / playback, playback through CH11/12 channel

    Phantom power

    +48V with switch

    Frequency response

    20Hz - 20kHz, ±2dB

    Distortion

    <0.03% at +0dB, 22Hz - 22KHz A-weighted

    Sensitivity

    +21dB ~ -30dB

    SNR

    <-100dBr A-weighted

    Mono equalization

    High frequency: +/-15dB @12KHz; medium frequency: +/-15dB @100KHz-8KHz; low frequency: +/-15dB @80KHz

    Stereo equalization

    High frequency: +/-15dB @12KHz; medium frequency: +/-15dB @3KHz or +/-15dB @500KHz; low frequency: +/-15dB @80KHz

    Main mixing crosstalk

    <-80dB @0dB 20Hz-22KHz A-weighted, main output: 0dB, other channels: minimum

    Supply voltage

    AC 100-240V 50/60Hz

    Rated power

    30W

    Size

    438×431×81mm

    Weight

    6.7Kg
