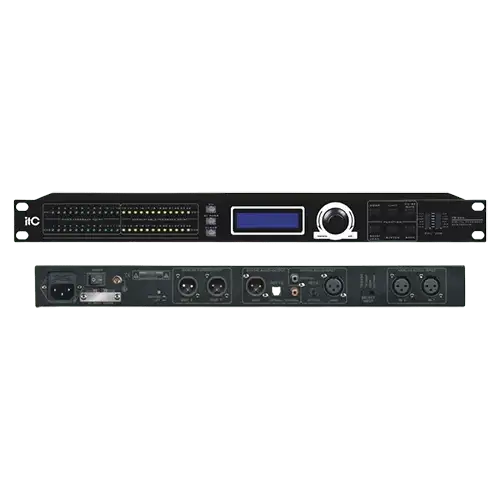

TS-224

ITC TS-224 Suppressor (Digital Feedback Suppressor), 96KHz sampling frequency, 32-bit DSP processor, 24-bit A / D and D / A converter, 2-channel XLR female analog inputs / 2 sets of stereo coaxial / optical fiber / AES inputs, Input impedance: Balanced 20KΩ, Output impedance: Balanced 100Ω, KCMR: >70dB (1KHz), Input range: ≤+25dBu, Frequency response: 20Hz~20KHz, SNR: ≥110dB, Distortion: <0.01% OUTPUT=0dBu/1KHz, Channel resolution: >110dB (1KHz), Automatic notch, 144 x 32 LCD screen, AC 110V-220V, 50Hz/60Hz.

https://www.esco.pk/web/image/product.template/13326/image_1920?unique=003a51d

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    ITC

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

     Features

    * 96KHz sampling frequency, 32-bit DSP processor, 24-bit A / D and D / A converter.

    * The digital signal input and output channels provide coaxial, AES and fiber optic interfaces.

    * Adopt 144 x 32 LCD screen to display parameters, provide 6-band LED display of output level.

    * Each channel has 24 LED lights to display the status and quantity of the howling suppression.

    * Each channel with compression, limiter, noise gate, feature settings.

    * The operating modes includes straight-through or feedback inhibition.

    * Fixed and dynamic feedback points can be freely edited and be deleted with one key.

    * One unit can store 30 groups of user programs.

    Specifications

    Input channel and socket

    2-channel XLR female analog inputs / 2 sets of stereo coaxial / optical fiber / AES inputs (each digital port transmits two channels of audio signals)

    Output channel and socket

    2-channel XLR male Analog Output / 2 stereo coaxial / optical fiber / AES inputs (each digital port transmits two channels of audio signals)

    Input impedance

    Balanced: 20KΩ

    Output impedance

    Balanced: 100Ω

    KCMR

    >70dB (1KHz)

    Input range

    ≤+25dBu

    Frequency response

    20Hz~20KHz

    SNR

    ≥110dB

    Distortion

    <0.01% OUTPUT= 0dBu/1KHz

    Channel resolution

    >110dB (1KHz)

    Howling searching and suppression mode

    Automatic notch

    Input signal frequency response

    20Hz~20KHz  ± 0.5dB

    Filter

    Each channel can independently adjust 24 maximum, the default value is 12 fixed points and 12 dynamic points

    Minimum bandwidth

    1/27th Octave

    Maximum bandwidth

    1/14th Octave

    Frequency resolution

    0.5Hz

    Howling searching time

    0.1-0.5S

    FFT length

    2048

    Sound transmission gain

    6-10dB

    System gain

    0dB

    Compression

    Starting level: -40dB~ + 20dB; compression ratio: 1:1.0~1:20.0; response time: 10~200ms; recovery time: 50ms~5000ms

    Limiter

    Starting level: -40dB~ + 20dB; response time: 10~200ms; recovery time: 50ms~5000ms

    Noise gate

    -120dB ~ -40dB

    Display

    With a resolution of 144 x 32 LCD display, provide 6-band LED display of output level

    Processor

    96KHz sample frequency, 32-bit DSP processor, 24-bit A/D and D/A conversion

    Power supply

    AC 110V-220V, 50Hz/60Hz

    Power consumption

    <15W

    Size

    482 x 148 x 44mm

    Net weight

    2.3Kg
