TS-2240WV

ITC TS-2240WV 2 x 240W Multimedia Mixer Amplifier (100V output), Two channels Audio Input with switching function, Three Channels Microphone input with independent gain adjustment function, With professional digital echo delay circuit to make the voice more natural, MP3 player with SD/USB interface, with Bluetooth and digital display function, MP3 recording function, ~220-240V.

https://www.esco.pk/web/image/product.template/13334/image_1920?unique=003a51d

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    Mixer Amplifier

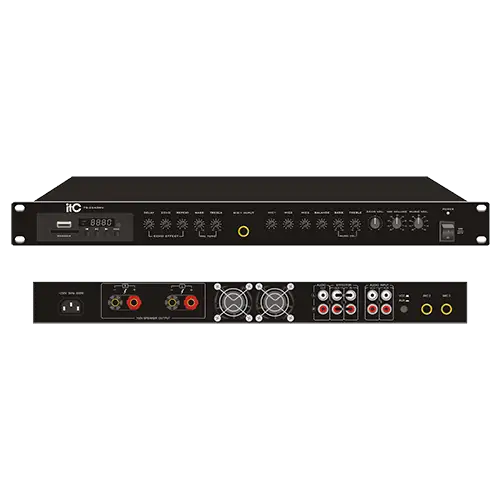

    ITC TS-2240WV Multimedia Mixer Amplifier (100V output)

    Audio Input

    Two channels audio input, with switching function.

    Protection

    With forced cooling fan to enhance the rejection of heat, can meet the long time working.

    Bluetooth

    Support Bluetooth function, Connect with mobile phones, computers and other devices

    Microphone Input

    Three channels microphone input with independent gain adjustment function.

    MP3 Function Module

    MP3 player with SD/USB interface, with Bluetooth and digital display function

    Specifications

    Rated Power Output

    TS-2240WV: 2x240W

    Constant Pressure Output

    100V

    Input Sensitivity And Impedance

    MIC1/2/3: ±5mV/600Ω (Unbalanced input); AUX: 350mV/10KΩ, (Unbalanced  input)

    VCD: 350mV/10KΩ, (Unbalanced input); EFFECTOR IN:350mV10KΩ, (Unbalanced input)

    Front Output

    EFFECTOR OUT: 350mV470Ω; AUDIO OUT: 1V±50mV/470Ω

    Microphone Tone

    low-frequency: ±10dB at 100Hz,high frequency: ±10dB at  10KHz

    Music Tone

    low-frequency: ±10dB at 100Hz,high frequency: ±10dB at  10KHz

    Effectors Parameters

    DELAY: 80ms-240ms; ECHO : 1-12, REPEAT: 0.1s-2s

    Frequency Response

    AUX,VCD: 20Hz(±3dB) -- 20KHz(±3dB); MIC: 50Hz(±3dB) -- 16kHz(±3dB)

    Noise-signal Ratio

    Mic :≥65dB, music: ≥70dB

    Harmonic Distortion

    Distortion of power amplifier on rated output power≤1%

    Indicator Light

    power light

    Cooling-down Method

    air-cooled

    Guard Mode

    Over temperature / short circuit

    Supply Voltage

    ~220-240V  50/60Hz

    Dimension

    484 x 300 x 44mm

    Fuse Size

    TS-2240WV: T5A- 250V

    Power Consumption

    TS-2240WV: 650W
