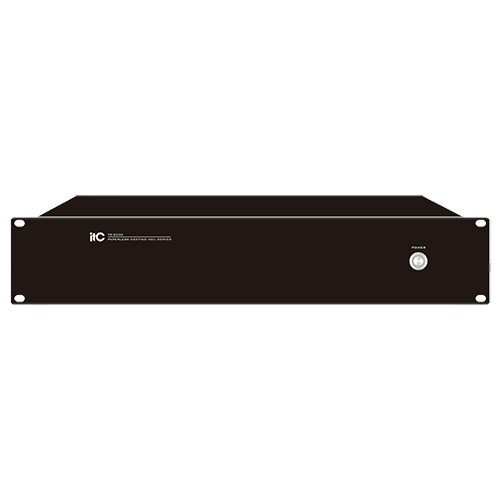

ITC TS-8308 Paperless Intelligent Streaming Media Server, Support the interconnection between external & internal audiovisual signals for the system, and support conference information display functions such as sign-in, voting and screen-sharing, I5-4460 (Quad-core/four threads/CPU main frequency 3.2GHz), 4G DDR3 1600Mhz, 64G SSD, Gigabit network port ( RJ45), MiniPCIE acquisition card, Video I/O Port :HDMI, VGA / HDMI, DVI, 1×3.5mm audio I/O port, 2×serial ports, 4×USB ports, DC 18.5V/6.5A.
Description
The controller is used for the collection and coding of external HD video signals and the output of audiovisual signals of the paperless conference system. It can support the interconnection between external and internal audiovisual signals for the system, and support conference information display functions such as sign-in, voting and screen sharing.
Features
* Standard rack-mount design(2U), embedded HD/SD video signal processing modules, synchronous/asynchronous processing of video signal input & output.
* Support HDMI and VGA signal input; external signal videos can be broadcast to all conference terminal and displayed in real time.
* Support HDMI and DVI signal output, any conference terminal videos can be output and displayed on big screens or other signal display devices.
* With one 3.5mm audio input interface and one 3.5mm audio output interface, can realize synchronous input/output of audiovisual signals.
* Support multiple HD outputs, including full HD 1080P, HD 720P, etc.
Specifications
|
CPU |
I5-4460 (Quad-core / four threads / CPU main frequency 3.2GHz) (Due to frequent product upgrades, its performance will continue to be optimized) |
|
RAM |
4G DDR3 1600 |
|
Hard disk |
64G SSD |
|
Network card |
Gigabit network port (RJ45) |
|
Video card |
Mini-PCIE acquisition card |
|
Video input port |
HDMI, VGA |
|
Video output port |
HDMI, DVI |
|
Audio port |
1×3.5mm audio input port, 1×3.5mm audio output port |
|
Others |
2×serial ports, 4×USB ports |
|
Working environment |
Environmental
temperature: 5℃~40℃ |
|
Working power supply |
DC 18.5V/6.5A |
|
Weight |
4.0Kg |
|
Color |
Black |
