TS-8515M3

TS-8515M3

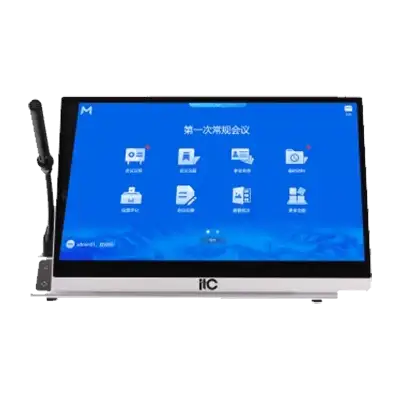

ITC TS-8515M3 Desktop Dual Screen Paperless Monitor with Microphone (Chairman), RAM: 4G DDR4, 128G SSD, I5 Processor.
Main Screen Parameters: 15.6" Touch Screen, 1920*1080P, Contrast: 600:1, 300cd/㎡ Brightness.
Rear Screen Parameters: 11.6 inches IPS screen, 1366(RGB)×768 [WXGA], 800: 1 Contrast, 60Hz working frequency.
Microphone parameters: Condenser Electret Microphone, Cardioid, 80Hz~16KHz Frequency response, Sensitivity: -36±1.5dB (0dB=1V/Pa, at 1KHz), 120dB(THD>3%) Max. SPL, >80dB(A) SNR.




Description:
ITC TS-8515M3 Desktop Dual Screen Paperless Monitor with Microphone (Chairman). The dual-screen paperless conference terminal, equipped with embedded software, efficiently manages file handling, distribution, browsing, annotation, smart sign-in, voting, electronic whiteboard, electronic nameplate, conference exchange, service provision, video signal interconnection, management and control, screen sharing, and more. Designed to cater to various high-end conference settings, governmental affairs, corporate activities, and large-scale event venues.

Specifications

Main Screen Parameters

Touch screen

Touch type

Processor

I5

RAM

4G DDR4

SSD

128G SSD

Working voltage

12V

Elevation angle

0° - 45°

Working environment

-2050, Humidity 70%

Screen Size

15.6 inches

Aspect ratio

16:9

Resolution

1920*1080P

Backlight type

WLED, 15K hours, including LED driver

Contrast

600:1

Brightness

300cd/

Power consumption

30W

Viewing angle

45/45/20/40 (Typ.) (Cr10)

Signal System

EDP

USB 3.0

2

Dimension (L×W×H)

386×220×198mm

Rear Screen Parameters

Screen size

11.6 inches

Touch Screen

No

Resolution

1366(RGB)×768 [WXGA]

Contrast

800: 1

Brightness

250 (Typ.)

Working environment

Working temperature: 0~50℃; Storage temperature: -20~60℃

Working frequency

60Hz

Viewing angle

89/89/89/89 (Typ.) (Cr10)

Screen Type

IPS

Working Voltage

3.3V

Display Size

256.125×144mm (H×V)

Weight

5.2KG

Microphone Parameters

Microphone type

Condenser Electret Microphone

Microphone directivity

Cardioid

Frequency response

80Hz~16KHz

Input impedance

1KΩ

Sensitivity

-36±1.5dB (0dB=1V/Pa, at 1KHz)

Max. SPL

120dB(THD>3%)

SNR

>80dB(A)

Crosstalk

>70dB

Dynamic Range

>80dB

THD

<0.1%

Max. Power Consumption

2W
