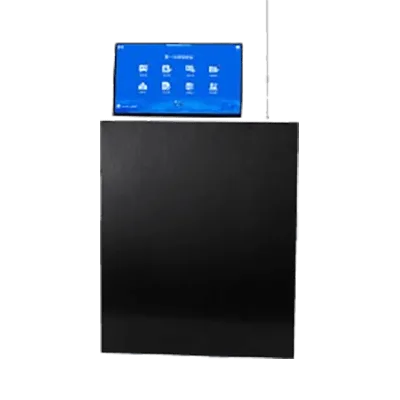

ITC TS-F156MT3 Motorized Paperless Screen Interactive Monitor Lift with Ulta-thin 15.6" Capacitive LCD Touch Screen (Intelligent Elevation 0-30 Degrees) with conference lifted microphone, 1920*1080P, clear and bright display, adjustable back light design, Support HDMI and VGA two-channel signal input, Brightness: 220cd/㎡, Viewing angle: 45/45/45/45(Typ.), Screen thickness: 9.7mm, Microphone Specification: Cardioid directional, Frequency response: 80Hz-16KHz, Input impedance: 1KΩ, Sensitivity: -41±1.5dB, Maximum SPL: 120dB (A), SNR: >80dB, THD: <0.1%, AC 220V 50-60/Hz.
Description
The machine uses intelligent control
technology, takes intelligent terminal as application concept, and adopts
original guide rail design. One-key operation can complete start-up,
lifting/flipping up LCD screen and other actions. It has anti-theft and dust-proof
designs, looks elegant and is space-saving and convenient in use. It can be
widely used in conferences, offices, hotels, teaching studios and other places,
and satisfy the needs of system development and office automation. It is an
ideal assistant for your working and teaching.
Feature
* The integration of the ultra-thin HD touch screen and the lift, no exposed wires and screws, no back boards; the lifting touch screen is neat and beautiful.
* Integrated with the microphone, which can be automatically straightened; when the machine is turned off, the pole can be automatically straightened to avoid damage.
* The surface of the machine is anodized and looks bright.
* The panel is space-saving with 3mm in thickness and 70mm in width only.
* 15.6-inch ultra-thin LCD touch screen, resolution: 1920*1080P, clear and bright display, adjustable back light design, can prevent fatigue caused by too bright or too dark screen.
* Support HDMI and VGA two-channel signal input. When there is only one signal input, the screen will automatically recognize the signal. When two signals are input at the same time, it can be manually switched through the panel buttons. When no signal input, the screen will automatically enter power saving mode.
* This machine can be centrally controlled by the central control software and the controller. One key can make all the machines in the room go up or down.
* The desktop panel has a USB interface, and files can be browsed or uploaded by connecting a U disk.
Specifications
|
Touch Screen |
Touch Control |
|
Lifting Time |
28S |
|
Elevation Angle |
0-30° |
|
Product Size |
555 * 70 * 650 mm |
|
Panel Size |
555 * 70 * 3 mm |
|
Cabinet Size |
540 * 60 * 647 mm |
|
Desktop Opening Size |
542 * 62 mm |
|
Panel Sinking Size |
556 * 71 * 3 mm (L*W*T) |
|
Environment Conditions |
-20℃~50℃ Relative Humidity ≤70% |
|
Screen Size |
15.6" |
|
Screen Aspect Ratio |
16:9 |
|
Resolution |
1920*1080 |
|
Video Port |
1 VGA, 1 HDMI |
|
Control Port |
1 group of 232/485 I/O Port Control Screen Lifting Support hand-in-hand connection. 1 USB port for turning on/off the machine 1 USB port for data transmission |
|
Microphone Port |
2 groups of 6-pin aviation interface |
|
Microphone Pole |
409 mm |
|
Contrast |
500:1 |
|
Brightness |
220 cd/㎡ |
|
Viewing Angle |
45/45/20/40 (Typ.) |
|
Screen Thickness |
9.7mm |
|
Power Supply |
AC 220V 50-60 Hz |
|
Power Consumption |
25W |
|
Microphone Specification |
|
|
Type |
Cardioid Directional Electret |
|
Frequency Response |
80Hz-16KHz |
|
Input Impedance |
1KΩ |
|
Sensitivity |
-41±1.5dB (0dB=1V/Pa, at 1KHz) |
|
Maximum SPL |
120dB (A) |
|
SNR |
>80dB |
|
THD |
<0.1% |
|
Power Consumption |
2W-3W |
