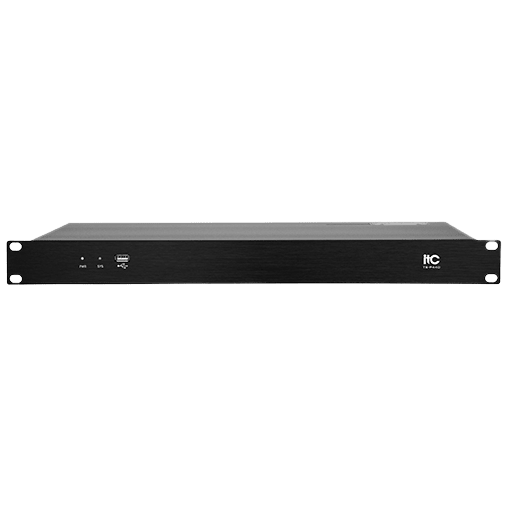

TS-P440

ITC TS-P440 Audio Matrix Processor, 4 Input and 4 Output Digital Audio Matrix Processor, built-in feedback suppression, echo cancellation, noise cancellation, Preamplifier, signal generator, extender, compressor, 5-band parametric equalizer, AM auto mixing function, AFC adaptive feedback cancellation, 31-band parametric equalizer, delayer, frequency divider, high-low-pass filter, limiter, Frequency response: 20Hz-20KHz, THD + noise: <0.002% @1KHz, 4dBu, Input impedance (balanced): 20KΩ, AC110V-220V, 50Hz/60Hz.

https://www.esco.pk/web/image/product.template/13328/image_1920?unique=003a51d

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    Description:

    It is a high-performance digital audio processor highly integrating multiple audio processing technologies, with 4 inputs and 4 outputs. It adopts DSP audio processing technology to provide users with superior sound quality. It has functions of built-in feedback suppression, echo cancellation, noise cancellation, etc. It is mainly used in medium and large-scale venues such as stadiums, conference centers, auditoriums, banquet halls, exhibition halls, multimedia conferences, command centers and so on.

    Feature:

    * Each input channel: 4 balanced microphone/line inputs, bare wire interface terminal, balanced connection.

    * Each output channel: 4 balanced line outputs, bare wire interface terminal, balanced connection.

    * Provide 24bit/48KHz high quality sound.

    * Full-featured matrix mixing, flexible and simple signal routing operations, routing path supports free combinations.

    * Provide the USB interface for multimedia storage to play audios or store recording.

    * The bidirectional RS-232 interface can be used to control external devices.

    * The RS-485 interface can achieve automatic camera tracking.

    * 8-channel programmable GPIO control interface (customized input and output).

    * Support automatic memory protection after power failure.

    * Support channel copy, paste, and gang control functions.

    * Multi-purpose data transmission and control port, can support real-time management of single and multiple devices.

    * Support access to the device through the browser, download the built-in management and control software, intuitive and graphical interface.

    * Support APP of iOS, iPad, Android mobile phone / tablet computer for operation control.

    Specifications

    Input channel

    Preamplifier, signal generator, extender, compressor, 5-band parametric equalizer, AM auto mixing function, AFC adaptive feedback cancellation, AEC echo cancellation, ANC noise cancellation

    Output channel

    31-band parametric equalizer, delayer, frequency divider, high-low-pass filter, limiter

    Sampling rate

    48K

    Phantom power supply

    DC 48V

    Frequency response

    20Hz-20KHz

    THD + noise

    <0.002% @1KHz, 4dBu

    D/A dynamic range (A-weighted)

    120dB

    A/D dynamic range (A-weighted)

    120dB

    Input impedance (balanced)

    20KΩ

    Maximum output impedance (balanced)

    100Ω

    Channel separation

    1kHz, 100dB

    Input KCMR

    60Hz, 80dB

    Maximum output level

    +24dBu, balanced

    Maximum input level

    +24dBu, balanced

    Working temperature

    0°C-40°C

    Working power supply

    AC110V-220V, 50Hz/60Hz

    Power consumption

    <40W

    Size

    482×258×45mm (W×D×H)

    Net weight

    1.95kg

    Gross weight

    2.9kg
