Indoor Station

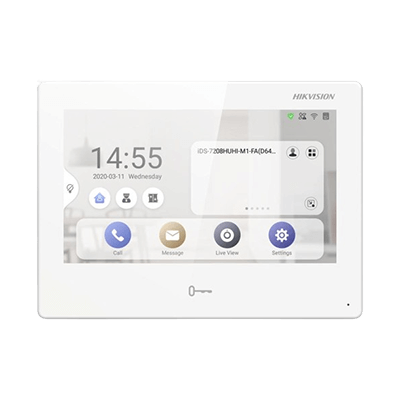

Hikvision DS-KH9310-WTE1 7-inch colorful touch screen All-in-one Indoor Station
Touch Screen
7-inch colorful touch screen with 1024 × 600 resolution
On-Board Storage
Support TF card, up to 64 G
Audio
Built-in omnidirectional microphone, Built-in loudspeaker
|
System parameters |
|
|
Operating system |
Embedded Android operation system |
|
ROM |
4 GB |
|
RAM |
1 GB |
|
CPU |
Embedded processor |
|
Display parameters |
|
|
Screen size |
7-inch |
|
Operation method |
Capacitive touch screen |
|
Type |
Colorful TFT |
|
Resolution |
1024 × 600 |
|
Audio parameters |
|
|
Audio compression standard |
G.711 U, G.711 A |
|
Audio input |
Built-in omnidirectional microphone |
|
Audio output |
Built-in loudspeaker |
|
Audio compression bitrate |
64 Kbps |
|
Audio quality |
Noise suppression and echo cancellation |
|
Volume adjustment |
Adjustable |
|
Capacity |
|
|
Event capacity |
200 |
|
Notice capacity |
200 |
|
Linked indoor station capacity |
5 |
|
Linked network camera capacity |
16 |
|
Linked doorphone capacity |
17 |
|
Network parameters |
|
|
Communication protocol |
TCP/IP, SIP, RTSP |
|
Wired network |
Support |
|
Wi-Fi standard |
Wi-Fi 802.11 b/g/n |
|
Device interfaces |
|
|
Alarm input |
8 |
|
Network interface |
1 RJ-45 10/100 Mbps self-adaptive |
|
RS-485 |
1 |
|
USB |
For debug only |
|
TF card |
Reserved |
|
Alarm output |
2 |
|
Power interface |
1 |
|
General |
|
|
Installation |
Surface mounting |
|
Weight |
Without package: 419.3 g With package: 694 g |
|
Working temperature |
-10 °C to 50 °C (14 °F to 122 °F) |
|
Working humidity |
10% to 90% |
|
Dimensions |
187 mm × 137 mm × 25.7 mm (7.36" × 5.39" × 1.01") |
|
Power supply |
IEEE802.3af, standard PoE 12 VDC, 1 A |
|
Application environment |
Indoor |
|
Power consumption |
≤ 12 W |
