IP Main Station

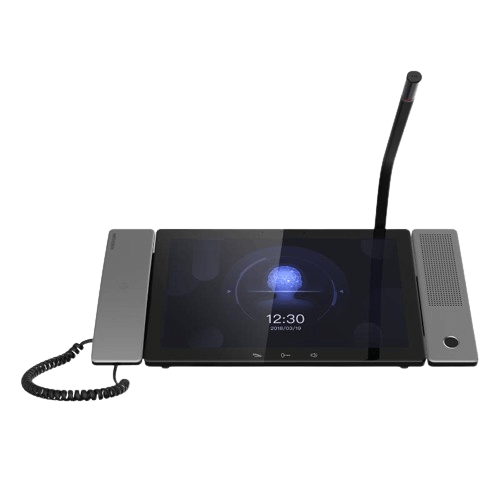

Hikvision DS-KM9503 10 inch Touch IP Main Station
SIP Server
Built-in SIP private server, up to 10,000 video intercom devices accesses Up to 128 network cameras can be added to the device
On-Board Storage
Support TF card, up to 128 G
Interfaces
Supports more than 2 speakers and microphones: Connects to external earphone (3.5 mm), external goose neck microphone
|
System Parameters |
|
|
ROM |
8 GB |
|
RAM |
2 GB |
|
Processor |
Embedded high performance processor |
|
Display Parameters |
|
|
Screen size |
10.1-inch |
|
Operation method |
Capacitive touch screen |
|
Type |
Colorful IPS |
|
Resolution |
1280 × 800 |
|
Video Parameters |
|
|
Resolution |
2 MP |
|
FOV |
Horizontal: 64.1°, Vertical: 48.1°, Diagonal: 80.2° |
|
Video compression standard |
Main stream: H.264; Sub-stream: H.264 |
|
Audio Parameters |
|
|
Audio input |
Built-in omnidirectional microphone, external speaker, external goose neck microphone, external earphone (3.5 mm) |
|
Audio compression standard |
G.711U, G.711A |
|
Audio output |
Built-in loudspeaker, external speaker, external voice box or earphone (3.5 mm) |
|
Audio compression bitrate |
64 Kbps |
|
Audio quality |
Noise suppression and echo cancellation |
|
Volume adjustment |
Adjustable |
|
Capacity |
|
|
Linked network camera capacity |
128 |
|
Linked intercom device capacity |
10,000 |
|
Network Parameters |
|
|
Network protocol |
TCP/IP, SIP, RTSP |
|
Device Interfaces |
|
|
Alarm input |
2 (reserved) |
|
Network interface |
2 |
|
RS-485 |
1 (reserved) |
|
USB |
3 |
|
TF card |
Support TF card, up to 128 G |
|
Lock control |
2 relays (reserved) |
|
General |
|
|
Button |
3 touch buttons |
|
Installation |
Table mounting & wall mounting |
|
Indicator |
3 |
|
Weight |
Net weight: 1.285 kg (2.8 lb) Gross weight: 2.305 kg (5.0 lb) |
|
Working humidity |
10% to 90% (no-condensing) |
|
Dimension (W × H × D) |
292 mm × 166 mm × 31 mm (11.5" × 6.5" × 1.2") |
|
Power supply |
12 VDC, standard PoE (LAN1) |
|
Application environment |
Indoor |
|
Power consumption |
≤ 12 W |
