Analog Video Input

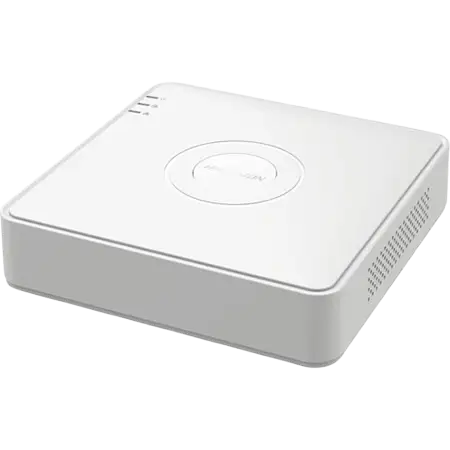

Hikvision DS-7104HGHI-M1/T 4 Channel DVR
Encoding Resolution
Up to 1080p Lite@25 fps encoding capability
Video Compression
H.265 Pro+/H.265 Pro/H.265 video compression
Video Input
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Deep Learning
Deep learning based human and vehicle targets classification of Motion Detection 2.0
Audio via coaxial cable
Support Audio via coaxial cable
|
Motion Detection 2.0 |
|
|
Human/Vehicle Analysis |
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
|
Recording |
|
|
Video Compression |
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
|
Encoding Resolution |
For 1080p stream access: 1080p Lite / 720p Lite / WD1 For 720p stream access: 720p / WD1 / 4CIF / VGA / CIF For SD stream access: WD1 / 4CIF / VGA / CIF |
|
Frame Rate |
Main stream: For 1080p stream access: 1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF @ 25 fps(P)/30 fps (N) For 720p stream access: 720p / WD1 / 4CIF / VGA / CIF@ 25fps (P)/30 fps (N) For SD stream access: WD1 / 4CIF / VGA / CIF @25 fps (P)/30 fps (N) |
|
Video Bitrate |
32 Kbps to 4 Mbps |
|
Stream Type |
Video, Video & Audio |
|
Audio Compression |
G.711u |
|
Audio Bitrate |
64 Kbps |
|
Video and Audio |
|
|
IP Video Input |
1-ch (up to 5-ch) Up to 1080p resolution Support H.265+ / H.265 / H.264+ / H.264 IP cameras |
|
Analog Video Input |
4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
|
HDTVI Input |
1080p25, 1080p30, 720p25, 720p30 |
|
AHD Input |
1080p25, 1080p30, 720p25, 720p30 |
|
HDCVI Input |
1080p25, 1080p30, 720p25, 720p30 |
|
CVBS Input |
Support |
|
HDMI Output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
|
VGA Output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
|
Video Output Mode |
HDMI/VGA simultaneous output |
|
Audio Input |
1-ch RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable |
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
Two-Way Audio |
Reuse the first audio input |
|
Synchronous playback |
4-ch |
|
Network |
|
|
Total Bandwidth |
64 Mbps |
|
Network Protocol |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS |
|
Remote Connection |
32 |
|
Network Interface |
1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
|
Auxiliary Interface |
|
|
SATA |
1 SATA interface |
|
Capacity |
Up to 4 TB capacity for each disk |
|
USB Interface |
Rear panel: 2 × USB 2.0 |
|
Alarm In/Out |
N/A |
|
General |
|
|
Power Supply |
12 VDC, 1.5 A |
|
Consumption |
≤ 10 W (without HDD) |
|
Working Temperature |
-10 °C to 55 °C (14 °F to +31 °F) |
|
Working Humidity |
10% to 90% |
|
Dimension (W × D × H) |
200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch) |
|
Weight |
≤ 0.8 kg (without HDD, 1.8 lb.) |
