AcuSense DVR

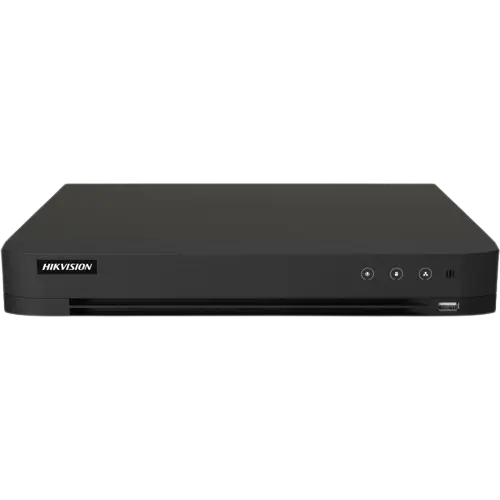

Hikvision iDS-7208HUHI-M1/X 8-ch H.265 AcuSense DVR
Encoding
Encoding ability up to 4K/8MP @ 8fps; 3K/5MP @12fps
Video Compression
H.265 Pro+/H.265 Pro/H.265 video compression
False Alarm Reduction
Up to 8 channels (advanced model, analog channel) Perimeter Protection (Human/Vehicle Analysis)
Video Output
HDMI/VGA simultaneous output, 1-ch, 4K (3840 × 2160)/30Hz HDMI Output
IP Camera Input
8-ch (up to 16-ch), each up to 4 Mbps
Interface
Audio via coaxial cable, 1 SATA Interface
Face Recognition
Support 4-ch Facial Recognition, Face picture detection, face picture search, 4-ch face picture capture
|
Facial Recognition |
|
|
Face Picture Library |
Up to 16 face picture libraries; HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash. |
|
Face Picture Comparison |
4-ch face picture comparison alarm (HD analog camera) |
|
Perimeter Protection |
|
|
Human/Vehicle Analysis |
Up to 8-ch (advanced model) |
|
Facial Detection |
|
|
Facial Detection and Capture |
Face picture detection, face picture search, 4-ch face picture capture |
|
Recording |
|
|
Video Compression |
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
|
Encoding Resolution |
8MP / 5MP / 3K / 4MP / 3MP / 1080p / 720 |
|
Frame Rate |
Main stream: 8MP@8fps / 3K@12fps / 5MP@12 fps / 4MP@15 fps / 8MP Lite@15 fps / 3MP@18 fps; 1080p/720p @25 fps (P)/30 fps (N) |
|
Video Bitrate |
32 Kbps to 10 Mbps |
|
Dual-stream |
Support |
|
Stream Type |
Video, Video & Audio |
|
Audio Compression |
G.711u |
|
Audio Bitrate |
64 Kbps |
|
Video and Audio |
|
|
IP Video Input |
8-ch (up to 16-ch), each up to 4 Mbps Support H.265+ / H.265 / H.264+ / H.264 IP cameras |
|
Analog Video Input |
8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
|
HDMI Output |
1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output |
|
VGA Output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output |
|
CVBS Input |
PAL/NTSC |
|
CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
|
Synchronous Playback |
8-ch |
|
HDTVI Input |
8MP (3840 × 2160)@15 fps, 8MP (3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5MP (2560 × 1944)@20 fps, 5MP(2560 × 1944)@12 fps, 4MP (2560 × 1440)@30 fps, 4MP (2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps |
|
AHD Input |
5MP (2560 × 1944)@20 fps, 5MP (2560 × 1944)@12 fps, 4MP (2560 × 1440)@30 fps, 4MP (2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps |
|
HDCVI Input |
8MP (3840 × 2160)@15 fps, 8MP (3840 × 2160)@12 fps, 5M (2880 × 1620)@25 fps, 5MP (2592 × 1944)@20 fps, 4MP (2560 × 1440)@30 fps, 4MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps |
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
Audio Input |
1-ch, RCA (2.0 Vp-p, 1 KΩ)，8-ch via coaxial cable |
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
|
Decoding |
|
|
Decoding Capability |
up to 24-ch 1080P@30fps |
|
Network |
|
|
Total Bandwidth |
256 Mbps |
|
Network Protocol |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP |
|
Remote Connection |
64 |
|
Network Interface |
1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
|
Auxiliary Interface |
|
|
SATA |
1 SATA interface |
|
Capacity |
up to 12 TB capacity for each disk |
|
Serial Interface |
RS-485 (half-duplex) |
|
USB Interface |
Front panel: 1 × USB 2.0; Rear panel: 2 × USB 3.0 |
|
General |
|
|
Power Supply |
12 VDC, 2 A |
|
Consumption |
≤ 24 W |
|
Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
Working Humidity |
10% to 90% |
|
Dimension (W × D × H) |
320 × 240 × 48 mm (12.6 × 9.4 × 1.9 inch) |
|
Weight |
≤ 2 kg (4.4 lb) |
