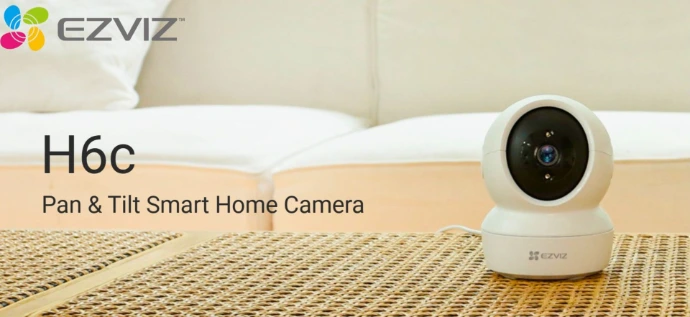

H6c
Pan & Tilt Smart Home Camera
Panoramic View
The EZVIZ H6c provides a wide 360° panoramic view for comprehensive monitoring. It covers a large area with minimal blind spots, making it suitable for homes, offices, and shops.
1080p Resolution
Delivers clear and detailed video in 1080p Full HD resolution. It captures important details with good image clarity, helping users monitor activities more easily.
Motion Detection
The H6c can detect movement within its viewing area and provide alerts when motion is detected. This helps users stay informed about activity around their property.
Auto-Tracking
The auto-tracking feature allows the camera to follow moving subjects within its viewing range. It automatically adjusts the camera view to help keep the subject in the frame.
Two-Way Talk
Built-in microphone and speaker that enable two-way communication. Users can remotely listen and talk to people near the camera, making it useful for homes, offices, and shops.
Supports MicroSD Card
Sleep Mode for Privacy Protection
Sleep Mode allows users to temporarily stop camera monitoring when privacy is required. This provides greater control over when the camera is actively monitoring the surroundings.
View from Anywhere
allows users to remotely access the camera through the mobile app. With an internet connection, users can check the live camera view from virtually anywhere.
IR Night Vision
The camera features infrared night vision for monitoring in low-light and dark environments. With a range of up to 10 meters (33 feet), it allows continuous monitoring even at night.
| Model | CS-H6c-R101-1G2WF |
|---|---|
| Camera | |
| Image Sensor | F2.4 @ 1/3" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| IR Night Vision Distance | Up to 10 m (33 ft) |
| Lens | 4 mm, viewing angle: 85° (Diagonal), 75° (Horizontal), 45° (Vertical) |
| Lens Mount | M12 |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Day & Night Switch | IR-cut filter with auto-switching |
| Video & Audio | |
| Max. Resolution | 1080p, 1920 × 1080 |
| Frame Rate | Max. 15 fps; Self-Adaptive during network transmission |
| Video Compression | H.264 |
| Video Bit Rate | Quad HD, Full HD, HD, Standard. Adaptive bit rate. |
| Storage | |
| Local Storage | Supports microSD card (Up to 256 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (subscription required) |
| Network | |
| Wi-Fi Standard | IEEE 802.11 b, 802.11 g, 802.11 n |
| Frequency Range | 2.4 ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b 11 Mbps, 11g 54 Mbps, 11n: 72 Mbps |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| General | |
| Dimensions | 88 × 88.2 × 119 mm (3.46 × 3.47 × 4.69 in) |
| Packaging | 103 × 103 × 186 mm (4.06 × 4.06 × 7.30 in) |
| Net Weight | 218 g (7.69 oz) |
| Operating Conditions | -10° to 45° C (14° to 113° F) Humidity 95% or less (non-condensing) |
| Power | |
| Power Supply | DC 5V / 1A |
| Power Consumption | Max. 5 W |
| Certifications | |
/ FCC / WEEE / REACH / RoHS / UKCA |
