Features
Pan/Tilt 4G Camera

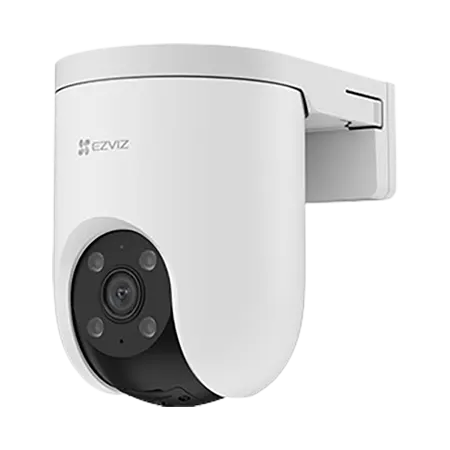

Ezviz H8c 4G Pan & Tilt 4G Camera
Live View
Always stay with that matters most to you from anywhere, anytime.
Color Night Vision
Color Night vision like you've never seen before.
Protection

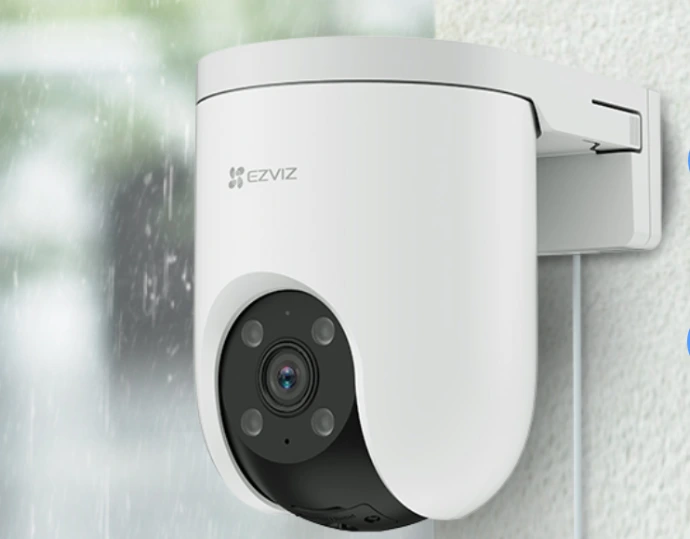

Weatherproof Design
Sim Slot
Supports 4G Network Connectivity
Active Defense
AI-Powered Human / Vehicle Shape Detection, Active Defense with Siren & Strobe Light
Audio
Two-Way talk
Storage
Supports MicroSD Card (Up to 512 GB) & EZVIZ CloudPlay Storage
|
Specifications |
|
|
Model |
CS-H8c-R200-1K3KFL4GA |
|
Camera |
|
|
Image Sensor |
1/2.8" Progressive Scan CMOS |
|
Shutter Speed |
Self-adaptive shutter |
|
Lens |
4mm@ F1.6, viewing angle: 46° (Vertical), 86° (Horizontal), 102° (Diagonal) 6mm@ F1.6, viewing angle: 28° (Vertical), 52° (Horizontal), 62° (Diagonal) |
|
PT Angle |
Pan: 350°, Tilt: 80° |
|
Minimum Illumination |
0.5 Lux @ (F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
|
Lens Mount |
M12 |
|
DNR |
3D DNR |
|
WDR |
Digital WDR |
|
Black & White Night |
30m / 98ft |
|
Video & Audio |
|
|
Max Resolution |
2304 × 1296 |
|
Frame Rate |
Max:30fps; Self-Adaptive during network transmission |
|
Video Compression |
H.265 / H.264 |
|
H.265 Type |
Main Profile |
|
Video Bit Rate |
Ultra-HD; Hi-Def; Standard. Adaptive bit rate. |
|
Audio Bit Rate |
Self-Adaptive |
|
Max. Bitrate |
3 Mbps |
|
Network |
|
|
Frequency Bands |
IN LTE-FDD:B1 / B3 / B5 / B8 IN LTE-TDD:B34 / B38 / B39 / B40 / B41 EU LTE-FDD:B1 / B3 / B5/B7 / B8 / B20 / B28 LA LTE-FDD:B2 / B3 / B4 / B5 / B7 / B8 / B28 / B66 |
|
Wired Network |
RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
|
Functions |
|
|
Smart Alarm |
Human Motion Detection, Vehicle Detection |
|
Auto Tracking |
Supports |
|
Customized Alert Area |
Supports |
|
Two-way Talk |
Supports |
|
Preset Locations |
Supports |
|
General Function |
Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
|
Storage |
|
|
Local Storage |
Supports microSD Card (Up to 512 GB) |
|
Cloud Storage |
Supports EZVIZ CloudPlay storage (Subscription required) |
|
General |
|
|
Operating Conditions |
-30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing) |
|
IP Grade |
Weatherproof Design |
|
Power Supply |
DC 12V/1A |
|
Dimensions |
100 × 136 × 140mm (3.94 × 5.35 × 5.51 inch) |
|
Packaging Dimensions |
140 × 140 × 192mm (5.51 × 5.51 × 7.56 inch) |
|
Weight |
Net Weight: 513.8 g (18.12 oz) With Package: 796.7 g (28.1 oz) For EU Standard Version |
|
Certifications |
|
|
Certifications |
CE / WEEE / RoHS / REACH |
|
