HB90 Dual Kit

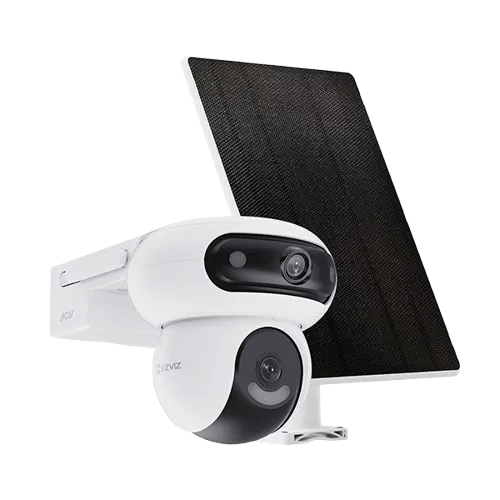

EZVIZ HB90 Dual Kit 2K⁺ & 2K Dual-Lens All-Day Recording Wi-Fi Camera + Solar Panel 8W
Solar Panel
8W High-Efficiency Solar Panel Included
Color Night Vision
Night is now bright and colorful
Protection
Weatherproof Design
Active Defense / Motion Detection
AI-Powered Human / Vehicle Shape Detection, Dual Rotations for Ultra-Flexible Vision, Active Defense with Siren and Strobe Light
Battery Capacity
10,400 mAh Rechargeable Lithium Battery
Audio
Two-Way talk
Storage
Supports MicroSD Card Storage (up to 512 GB) & Ezviz CloudPlay Storage
|
Specifications |
|
|
Model |
CS-HB90/SP-R100 (4MP+4MP) |
|
Camera |
|
|
Image Sensor |
1/3” 4-Megapixel Progressive Scan CMOS Sensor |
|
Shutter Speed |
Self-adaptive shutter |
|
Lens |
Top Lens: 2.8mm @ F1.2, Field of view : Diagonal 110°, Horizontal 96°, Vertical 54° Bottom Lens: 6mm @ F1.2, Field of view : Diagonal 60°, Horizontal 52°, Vertical 28° |
|
PT Angle |
Top Lens: Pan: 220°, Tilt: 10° Bottom Lens: Pan: 324°, Tilt: 90° |
|
Minimum Illumination |
0.01 Lux @ (F1.2, AGC ON ), 0 Lux with IR (* data is obtained from EZVIZ laboratories) |
|
Day & Night |
IR-cut filter with auto switch |
|
DNR |
3D DNR |
|
Night Vision Distance |
35 m |
|
Video & Audio |
|
|
Max Resolution |
2K+ (2560 × 1440) |
|
Frame Rate |
Max. 15fps; Self-Adaptive during network transmission |
|
Video Compression |
H.265 / H.264 |
|
Video Bit Rate |
Quad HD; HD; Standard; Adaptive bit rate |
|
Audio Bit Rate |
Self-adaptive |
|
Max. Bitrate |
2 Mbps (Total) |
|
Network |
|
|
Bluetooth |
Supports |
|
Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n , 802.11ax |
|
Frequency Range |
2.4 GHz ~ 2.4835 GHz |
|
Channel Bandwidth |
Supports 20 MHz |
|
Security |
WPA-PSK / WPA2-PSK, WPA3-Personal |
|
Transmission Rate |
11b: 11Mbps,11g: 54Mbps,11n: 72Mbps, 11ax: 114Mbps |
|
Wi-Fi Pairing |
AP pairing |
|
Minimum Network Requirement |
4 Mbps |
|
Function |
|
|
Smart Alarm |
AI-Powered Human Shape Detection AI-Powered Vehicle Shape Detection |
|
Auto Tracking |
Supports |
|
Customized Alert Area |
Supports |
|
Two-Way Talk |
Supports |
|
General Function |
Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
|
Storage |
|
|
Local Storage |
Supports microSD card (max. 512 GB) |
|
Cloud Storage |
Supports EZVIZ CloudPlay storage (Subscription required) |
|
General |
|
|
Operating Conditions |
-20°C to 50°C ( -4°F to 122 °F ) Humidity 95% or less (non-condensing) |
|
Battery Capacity |
10,400 mAh |
|
IP Grade |
IP65 |
|
Power Supply |
DC 5 V / 2 A (Adapter needs to be purchased separately) |
|
Power Consumption |
Max. 10 W |
|
Specifications |
|
|
Model |
CS-PSP8-R100-3M |
|
Performance Parameter |
|
|
Power Voltage |
5.4 V ± 5% |
|
Power Current |
1.48 A ± 5% |
|
Open Circuit Voltage |
6.8 V ± 5% |
|
Short Circuit Current |
1.64 A ± 5% |
|
Max. Power |
8 W ± 5% |
|
Interface |
Type-C |
|
Solar Cell Efficiency |
0.235 |
|
Operating Conditions |
-20 °C to 60 °C (-4 °F to 140 °F), Humidity 90% or less (non-condensing) |
|
IP Grade |
IP65 |
|
Solar Cell Type |
Monocrystalline solar cells |
|
Power Cable Length |
3 meter |
|
General |
|
|
Product Dimensions |
HB90 Dual: 135 × 136.5 × 229.5 mm (5.31 × 5.374× 9.04 inch） Solar Panel 8W: 267.3 × 186.5 × 17.5 mm (10.45 × 7.49 × 0.61 inch） |
|
Packaging Dimensions |
300 × 204 × 175 mm (11.81 × 8.03 × 6.89 inch） |
|
Net Weight |
HB90 Dual: 890 g (31.39 oz） Solar Panel 8W: 428 g (15.09 oz) |
|
Weight with Package |
1930 g (68.08 oz) |
|
Certifications |
|
|
Certifications |
CE / REACH / WEEE / RoHS |
|
