Features
Solar Battery Camera

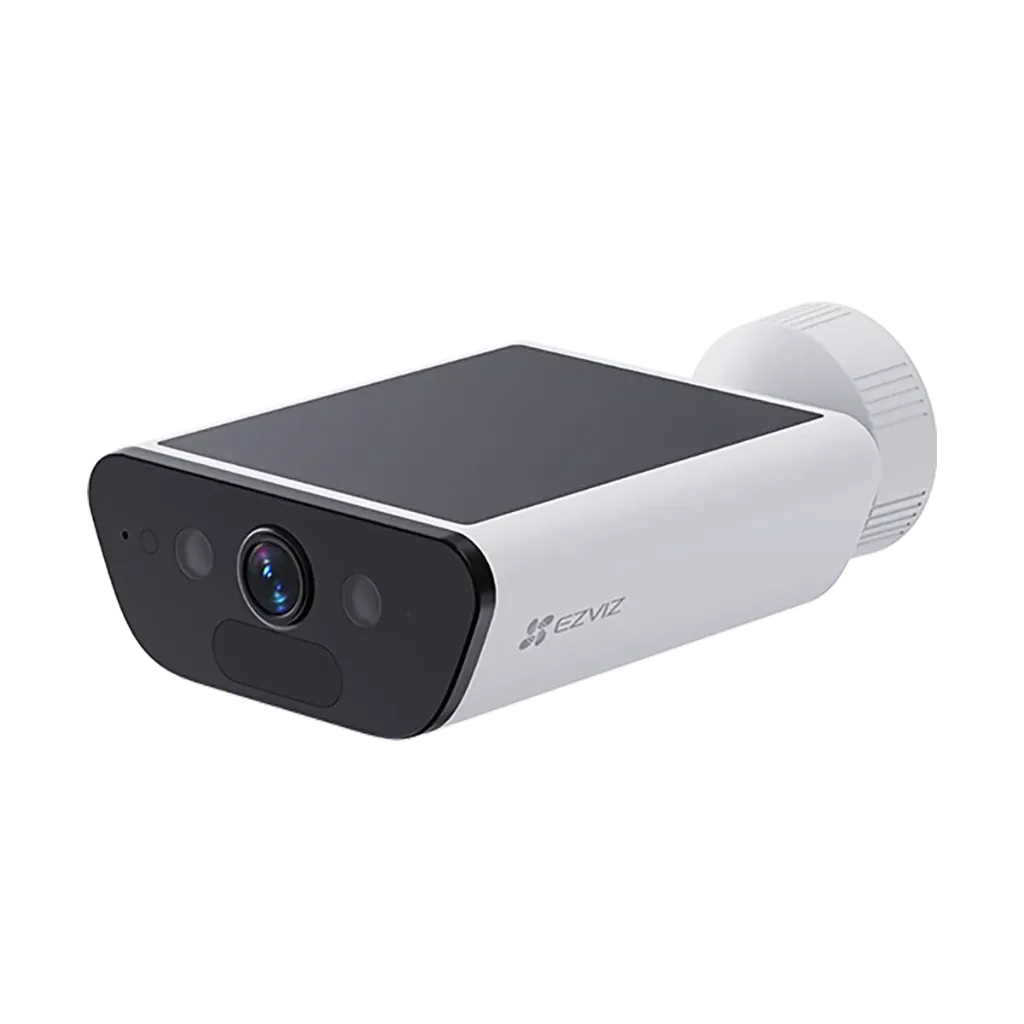

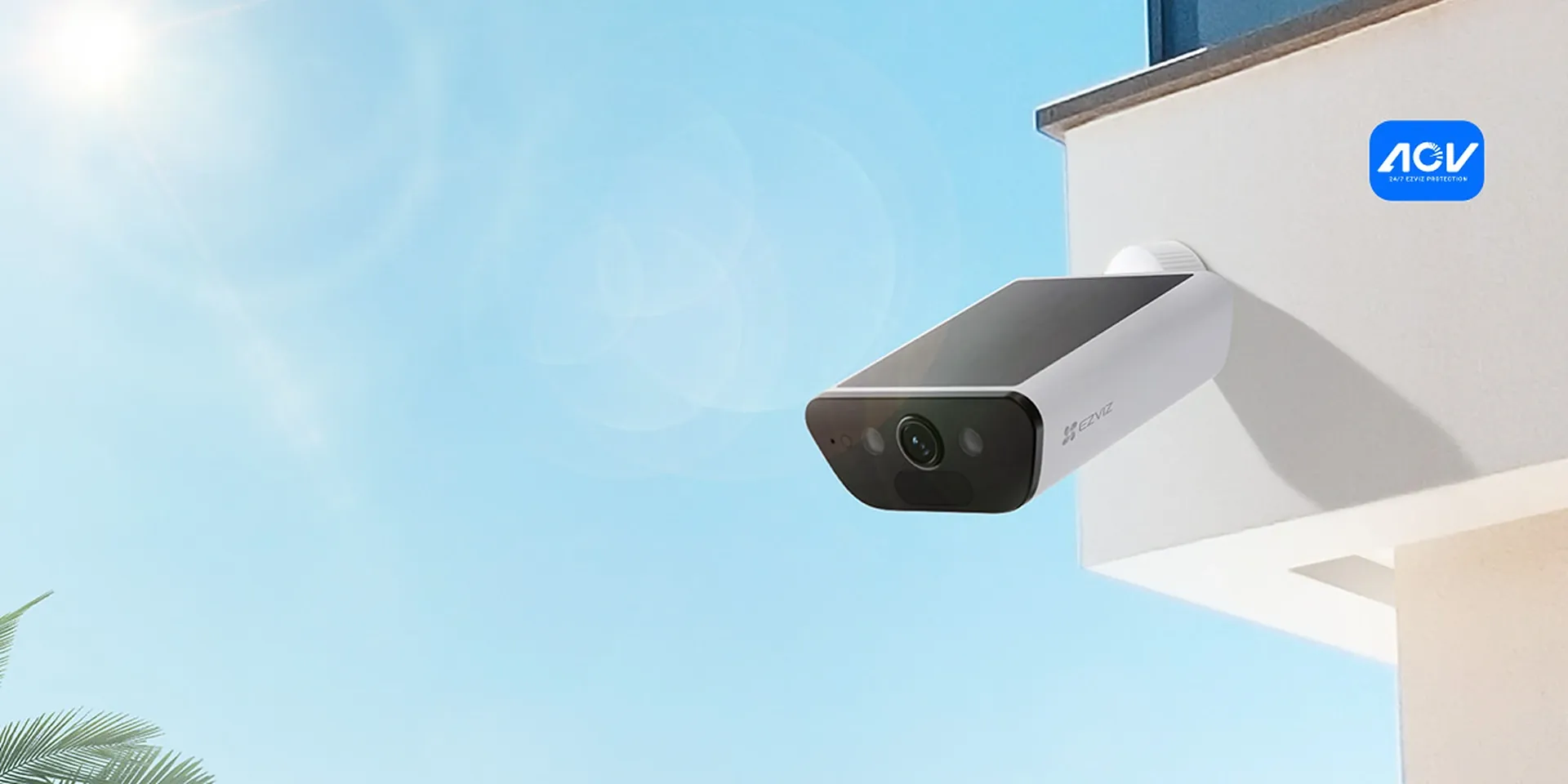

Ezviz CB5 4K Smart Home Solar Battery Camera
Live View
Always stay with that matters most to you from anywhere, anytime.
Color Night Vision
Full-color night vision like you've never seen before.
Storage
Supports MicroSD Card Storage (up to 512GB)
Battery Capacity
Built-in 1.4W Solar Panel, 10400 mAh Large Battery
Motion Detection
AI-Powered Human / Vehicle Shape Detection
Two Way Talk
Built-in Mic & Speaker
Protection
Weatherproof Design
|
Camera |
|
|
Image Sensor |
1/2.7” 8-Megapixel Progressive Scan CMOS Sensor |
|
Minimum Illumination |
0.01 Lux @(F1.6, AGC ON), 0 Lux with IR |
|
Shutter Speed |
Self-adaptive shutter |
|
Lens |
2.8mm@ F1.6; 135° (Diagonal), 113° (Horizontal), 60° (Vertical) |
|
Day & Night |
IR-Cut filter with auto-switching |
|
DNR |
3D DNR |
|
Night Vision |
IR Distance: 15m, Color Night Vision Distance: 15m |
|
Video & Audio |
|
|
Max. Resolution |
3840 × 2160 |
|
Frame Rate |
15fps. Self-Adaptive during network transmission |
|
Video Compression |
H.265 / H.264 |
|
Video Bit Rate |
Ultra HD; Quad HD; Full HD; Hi-Def Adaptive bit rate. |
|
Audio Bit Rate |
Self-Adaptive |
|
Max. Bitrate |
4 Mbps |
|
Network |
|
|
Bluetooth |
Supports |
|
Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n, 802.11ax |
|
Frequency Range |
2.4 GHz ~ 2.4835 GHz |
|
Channel Bandwidth |
Supports 20 MHz |
|
Security |
WPA-PSK/WPA2-PSK, WPA3-Personal |
|
Transmission Rate |
11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps |
|
Wi-Fi Pairing |
AP pairing |
|
Protocol |
EZVIZ Cloud proprietary protocol |
|
Interface Protocol |
EZVIZ Cloud proprietary protocol |
|
Minimum Network Requirement |
8Mbps |
|
Function |
|
|
Smart Alarm |
AI-Powered Human Shape Detection, AI-Powered Vehicle Detection |
|
Two-way Talk |
Supports |
|
General Function |
Anti-Flicker, Heart Beat, Password Protection, Watermark |
|
Storage |
|
|
Local Storage |
Supports Micro SD slot for local storage (Up to 512G) |
|
Cloud Storage |
EZVIZ cloud storage |
|
General |
|
|
Operating Conditions |
-20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing) |
|
IP Grade |
IP65 |
|
Power Supply |
DC 5V/2A (Compatible power adapter needs to be purchased separately) |
|
Battery Capacity |
10400 mAh |
|
Power Consumption |
Max. 10W |
|
Product Dimensions |
166 × 103 × 54 mm |
|
Packaging Dimensions |
227 × 167 × 64 mm |
|
Weight |
Net Weight: 466g With Package: 822g |
