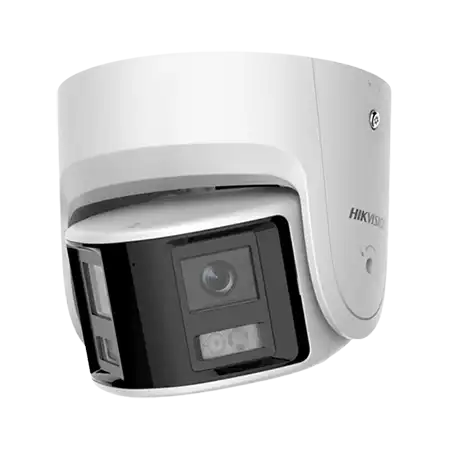

DS-2CD2387G2P-LSU/SL
8MP ColorVu Panoramic Turret Camera with Strobe
DS-2CD2387G2P-LSU/SL
8MP ColorVu Panoramic Turret Camera with Strobe
Key specs
- 8MP (5120 × 1440), 180° panoramic view from two lenses
- ColorVu with soft white light, up to 40 m at night
- AcuSense: intrusion, line crossing, region entrance and exit
- Strobe light and siren, custom voice message
- Built-in microphone and speaker
- Audio and alarm terminals
- microSD up to 512 GB
- H.265+ compression
- IP67
- 12 VDC or PoE power
|
Camera |
|
|
Image Sensor |
2 × 1/1.8" Progressive Scan CMOS |
|
Max. Resolution |
5120 × 1440 |
|
Min. Illumination |
Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light |
|
Shutter Time |
1/3 s to 1/100,000 s |
|
Angle Adjustment |
Pan: -30° to 30°, tilt: -75° to 75° |
|
Lens |
|
|
Lens Type |
Fixed focal lens, Dual lens: 4 mm |
|
Focal Length & FOV |
4 mm, horizontal FOV: 180°, vertical FOV: 44° |
|
Lens Mount |
M16 |
|
Iris Type |
Fixed |
|
Aperture |
F1.0 |
|
Depth of Field |
3.6 m to ∞ |
|
DORI |
|
|
DORI |
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m |
|
Illuminator |
|
|
Supplement Light Type |
White Light |
|
Supplement Light Range |
Up to 30 m |
|
Smart Supplement Light |
Yes |
|
Video |
|
|
Main Stream |
When WDR is On: 50 Hz: 12.5 fps (5120 × 1440) 60 Hz: 15 fps (5120 × 1440) When WDR is Off: 50 Hz: 20 fps (5120 × 1440) 60 Hz: 20 fps (5120 × 1440) |
|
Sub-Stream |
When WDR is On: 50 Hz: 12.5 fps (1920 × 536, 960 × 272) 60 Hz: 15 fps (1920 × 536, 960 × 272) When WDR is Off: 50 Hz: 20 fps (1920 × 536, 960 × 272) 60 Hz: 20 fps (1920 × 536, 960 × 272) |
|
Video Compression |
Main stream: H.265+ / H.265 / H.264+ / H.264 Sub-stream: H.265 / H.264 / MJPEG |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
H.264 Type |
Baseline Profile, Main Profile, High Profile |
|
H.265 Type |
Main Profile |
|
Bit Rate Control |
CBR, VBR |
|
Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
|
Region of Interest (ROI) |
1 fixed region(s) for main stream |
|
Network |
|
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets |
|
Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) |
|
Network Storage |
NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), NVR, Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
|
Image |
|
|
Image Parameters Switch |
Yes |
|
Image Settings |
saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Wide Dynamic Range (WDR) |
130 dB |
|
SNR |
≥ 52 dB |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
On-Board Storage |
Built-in memory card slot, support microSD / microSDHC / microSDXC/TF card, up to 512 GB |
|
Built-in Microphone |
Yes |
|
Built-in Speaker |
Max. power consumption: 1.2 W, max. sound pressure: 10 cm: 95 dB |
|
Audio |
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
|
Alarm |
1 input, 1 output (max. 24 VDC, 1 A) |
|
Reset Key |
Yes |
|
Event |
|
|
Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm light output, audible alarm output, exception |
|
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection |
|
Linkage |
Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing |
|
Deep Learning Function |
|
|
Perimeter Protection |
Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle)) |
|
General |
|
|
Power |
12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø 5.5 mm coaxial power plug, PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W |
|
Material |
Base: metal, cover: metal |
|
Dimension |
Ø155 mm × 155.3 mm (Ø6.1" × 6.1") |
|
Package Dimension |
230 mm × 230 mm × 230 mm (9" × 9" × 9") |
|
Weight |
Approx. 1110 g (2.4 lb.) |
|
General Function |
Anti-flicker, heartbeat, password reset via email, password protection, one-key reset |
|
Flashing Light |
Yes |
|
Approval |
|
|
EMC |
FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 |
|
Safety |
UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
|
Environment |
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
|
Protection |
IP67: IEC 60529-2013 |
Know before you buy
Quick answers about the DS-2CD2387G2P-LSU/SL 4mm, and how it compares.
1 Line or 2 Line: which one do I need?
1 Line (Value Series): the body is often plastic or part plastic (it differs by model, so check the specs), with Motion Detection 2.0 or 3.0 for people and vehicle alerts. Good for homes, shops and small offices.
2 Line (Pro Series): metal body (some parts, like the sun shade, are plastic), bigger sensor, longer night range and perimeter alarms such as line crossing and intrusion. Good for factories, warehouses and any site with a wall or fence.
G2 or G3: what changes?
G3 is the newer generation. It cleans night grain and glare before detection, so headlights and reflections cause far fewer false alarms (Hikvision states up to 80% fewer). It also saves search tags with the video for AcuSeek. G2 is still a good camera when budget decides.
How does 1 Line ColorVu compare with 2 Line ColorVu?
Both show colour at night. 1 Line is the budget choice: smaller sensor, lower frame rate, and it needs a little more light. 2 Line has a bigger sensor for darker places and adds perimeter alarms. For a lit shop front, 1 Line is enough; for a dark yard, choose 2 Line.
When do the strobe light and alarm sound go off?
Only when the camera detects a person or vehicle in the area you set. You choose the flashing light, a siren or your own recorded voice message, and when it is active (for example only after closing time). From the Hik-Connect app you can also talk to the visitor through the speaker.
What do Motion Detection, AcuSense, perimeter protection, AcuSearch and AcuSeek mean?
- Motion Detection 2.0 / 3.0: alerts only for people and vehicles, not cats, leaves or rain. 3.0 also ignores headlights.
- AcuSense: tells people and vehicles apart, and marks the recordings so you can play back only those clips.
- Perimeter protection: an alarm when someone crosses a line you draw or enters an area. Built into 2 Line cameras.
- AcuSearch: click a person in old video and see every clip with them (Pro I NVR or higher).
- AcuSeek: search video by typing words, like "white car at the gate" (G3 cameras with a VPro or DeepinMind NVR).
What does the camera do, and what does the NVR add?
The camera detects; the NVR records and helps you find clips. A Hikvision AI NVR (NXI) can also add AI to older cameras: people and vehicle alerts on all channels, and line crossing or face recognition on 1 or 2 cameras. This camera has AcuSense built in, so it does not use up the NVR's AI.
Which Hikvision NVR should I pair it with?
Any Hikvision NVR records it. Value (NI-Q) for basic recording. Pro K (NXI-K) adds people and vehicle playback, AI for older cameras and face recognition on a few cameras. Pro I (NXI-I) adds AcuSearch. VPro adds AcuSeek. DeepinMind runs AI on many channels. Our engineers size channels and storage with your quote.
Can this camera recognise faces?
Not by itself. A Hikvision AI NVR (NXI), even a low-cost one like the DS-7604NXI-K1, can capture and recognise faces from it on 1 or 2 cameras. For good results, people should face the camera at head height, with light on their faces.
What happens to my recordings if a hard disk fails or the NVR is stolen?
With a microSD card in the camera, the last days of video stay inside the camera, even if the hard disk fails or thieves take the NVR. If the network drops, the camera records to the card and the NVR copies the gap back later. On the NVR side, RAID models (86xx, 96xx) lose nothing when one disk fails; other NVRs lose only the video on the failed disk.
Can I buy this camera online?
Hikvision IP cameras are installed products, so we start with a free pre-sales consultation: our engineers suggest the cameras, recorder and storage for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi. 1 year carry-in warranty.
