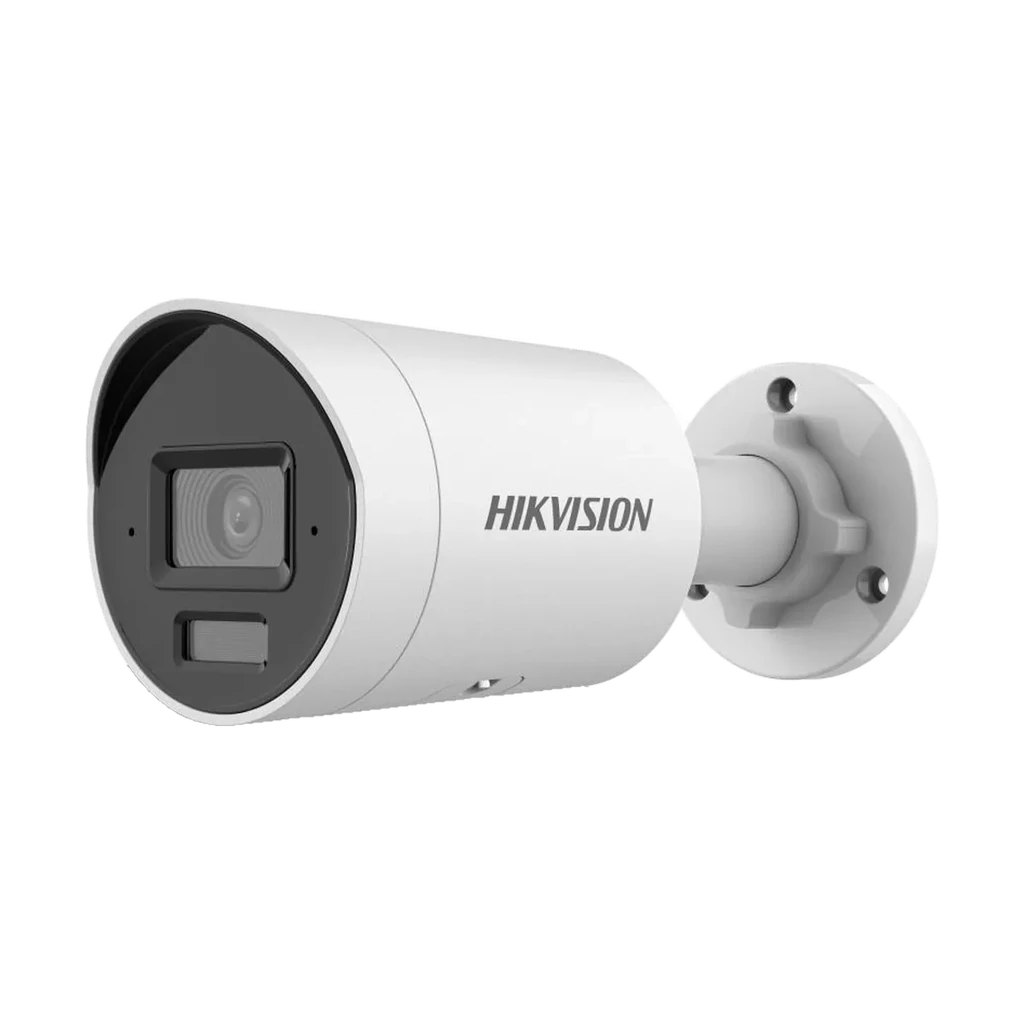

DS-2CD2083G2-LI2U
8MP Smart Hybrid Light Bullet Camera, 4 mm lens
DS-2CD2083G2-LI2U
8MP Smart Hybrid Light Bullet Camera, 4 mm lens
Key specs
- 8MP (3840 × 2160), 4 mm fixed lens
- Smart Hybrid Light (IR and white light), up to 40 m at night
- AcuSense: intrusion, line crossing
- Built-in dual-array microphone
- microSD up to 512 GB
- H.265+ compression
- IP67
- 12 VDC or PoE power
|
Camera |
|
|
Image Sensor |
1/2.8" Progressive Scan CMOS |
|
Max. Resolution |
3840 × 2160 |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with light |
|
Shutter Time |
1/3 s to 1/100,000 s |
|
Day & Night |
IR cut filter |
|
Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
|
Lens |
|
|
Lens Type |
Fixed focal lens, 2.8, 4, and 6 mm optional |
|
Focal Length & FOV |
4 mm, horizontal FOV 88°, vertical FOV 44°, diagonal FOV 105° |
|
Lens Mount |
M12 |
|
Iris Type |
Fixed |
|
Aperture |
F1.6 |
|
Depth of Field |
4 mm: 2.6 m to ∞ |
|
DORI |
|
|
DORI |
4 mm, D: 117 m, O: 46 m, R: 23 m, I: 11 m |
|
Illuminator |
|
|
Supplement Light Type |
IR, White Light |
|
Supplement Light Range |
Up to 40 m |
|
Smart Supplement Light |
Yes |
|
IR Wavelength |
850 nm |
|
Video |
|
|
Main Stream |
50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
|
Sub-Stream |
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
|
Third Stream |
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
|
Video Compression |
Main stream: H.265 / H.264 / H.264+ / H.265+, Sub-stream: H.265 / H.264 / MJPEG, Third stream: H.265 / H.264, *Third stream is supported under certain settings. |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
H.264 Type |
Baseline Profile, Main Profile, High Profile |
|
H.265 Type |
Main Profile |
|
Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
|
Bit Rate Control |
CBR, VBR |
|
Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
|
Target Cropping |
Yes |
|
Audio |
|
|
Environment Noise Filtering |
-2U: Yes |
|
Network |
|
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
|
User/Host |
Up to 32 users 3 user levels: administrator, operator, and user |
|
Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface |
|
Network Storage |
NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
|
Image |
|
|
Image Parameters Switch |
Yes |
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Wide Dynamic Range (WDR) |
120 dB |
|
SNR |
≥ 52 dB |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Privacy Mask |
8 programmable polygon privacy masks |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
On-Board Storage |
Built-in memory card slot, support microSD / microSDHC / microSDXC card, up to 512 GB |
|
Reset Key |
Yes |
|
Audio |
Built-in Microphone: -2U: Arrayed dual-microphone |
|
Event |
|
|
Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
|
Linkage |
Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger recording, trigger capture |
|
Deep Learning Function |
|
|
Perimeter Protection |
Line crossing, intrusion Support alarm triggering by specified target types (human and vehicle) |
|
General |
|
|
Power |
12 VDC ± 25%, 0.5 A, max. 6 W, reverse polarity protection, Ø5.5 mm coaxial power plug, PoE: IEEE 802.3af, Class 3, max. 7.5 W |
|
Material |
Metal |
|
Dimension |
Ø74.4 mm × 176.3 mm (Ø2.93" × 6.94") |
|
Package Dimension |
234 mm × 120 mm × 117 mm (9.21" × 4.72" × 4.61") |
|
Weight |
Approx. 515 g (1.1 lb.) |
|
With Package Weight |
Approx. 760 g (1.7 lb.) |
|
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
General Function |
Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding |
|
Approval |
|
|
EMC |
CE-EMC: EN 55032: 2015+A1: 2020, EN 50130-4: 2011+A1: 2014, EN IEC 61000-3-2: 2019+A1:2021, EN 61000-3-3: 2013+A1: 2019+A2: 2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
|
Safety |
CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 |
|
Environment |
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
|
Protection |
IP67: IEC 60529-2013 |
Know before you buy
Quick answers about the DS-2CD2083G2-LI2U 4mm, and how it compares.
1 Line or 2 Line: which one do I need?
1 Line (Value Series): the body is often plastic or part plastic (it differs by model, so check the specs), with Motion Detection 2.0 or 3.0 for people and vehicle alerts. Good for homes, shops and small offices.
2 Line (Pro Series): metal body (some parts, like the sun shade, are plastic), bigger sensor, longer night range and perimeter alarms such as line crossing and intrusion. Good for factories, warehouses and any site with a wall or fence.
G2 or G3: what changes?
G3 is the newer generation. It cleans night grain and glare before detection, so headlights and reflections cause far fewer false alarms (Hikvision states up to 80% fewer). It also saves search tags with the video for AcuSeek. G2 is still a good camera when budget decides.
What is Smart Hybrid Light?
The camera has two lights. In the dark it uses invisible IR and records in black and white. When it detects a person or vehicle, it turns on white light and records in colour. You can also set it to IR only or white light only.
What do AcuSense, Motion Detection, AcuSense Perimeter, AcuSearch and AcuSeek mean?
- AcuSense: the brain that tells people and vehicles apart. It also marks the recordings, so you can play back only those clips.
- Motion Detection 2.0 / 3.0: motion detection with AcuSense. It alerts only for people and vehicles, not cats, leaves or rain. 3.0 also ignores headlights.
- AcuSense Perimeter: you draw a line or an area (line crossing, intrusion, entering or leaving an area), and only people and vehicles set off the alarm. Built into 2 Line (Pro Series) cameras.
- AcuSearch: click a person in old video and see every clip with them (Pro I NVR or higher).
- AcuSeek: search video by typing words, like "white car at the gate" (G3 cameras with a VPro or DeepinMind NVR).
What does the camera do, and what does the NVR add?
The camera detects; the NVR records and helps you find clips. A Hikvision AI NVR (NXI) can also add AI to older cameras: people and vehicle alerts on all channels, and line crossing or face recognition on 1 or 2 cameras. This camera has AcuSense built in, so it does not use up the NVR's AI.
Which Hikvision NVR should I pair it with?
Any Hikvision NVR records it. Value (NI-Q) for basic recording. Pro K (NXI-K) adds people and vehicle playback, AI for older cameras and face recognition on a few cameras. Pro I (NXI-I) adds AcuSearch. VPro adds AcuSeek. DeepinMind runs AI on many channels. Our engineers size channels and storage with your quote.
Can this camera recognise faces?
This camera detects faces (it knows a face is in the picture), but it does not save face photos itself. A Hikvision AI NVR (NXI-K or higher) can capture and recognise faces from it on a limited number of cameras. For good results, people should face the camera at head height, with light on their faces.
What happens to my recordings if a hard disk fails or the NVR is stolen?
With a microSD card in the camera, the last days of video stay inside the camera, even if the hard disk fails or thieves take the NVR. If the network drops, the camera records to the card and the NVR copies the gap back later. On the NVR side, RAID models (86xx, 96xx) lose nothing when one disk fails; other NVRs lose only the video on the failed disk.
Can I buy this camera online?
Hikvision IP cameras are installed products, so we start with a free pre-sales consultation: our engineers suggest the cameras, recorder and storage for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi. 1 year carry-in warranty.
