DS-2CD2T86G2-ISU/SL

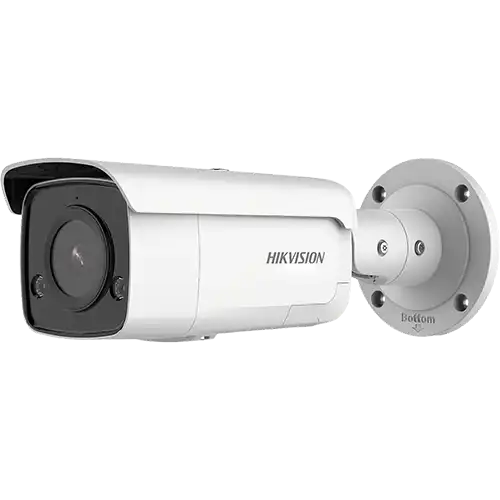

8MP DarkFighter Bullet Camera with Strobe, 4 mm lens
DS-2CD2T86G2-ISU/SL
8MP DarkFighter Bullet Camera with Strobe, 4 mm lens
Key specs
- 8MP (3840 × 2160), 4 mm fixed lens
- DarkFighter low-light sensor, IR night vision up to 60 m (black and white in full darkness)
- AcuSense: intrusion, line crossing, region entrance and exit
- Face capture
- Strobe light and siren, custom voice message
- Built-in microphone and speaker
- Audio and alarm terminals
- microSD up to 512 GB
- H.265+ compression
- IP67
|
Camera |
||
|
Image Sensor |
1/1.8" Progressive Scan CMOS |
|
|
Max. Resolution |
3840 × 2160 |
|
|
Min. Illumination |
Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
|
Shutter Time |
1/3 s to 1/100,000 s |
|
|
Day ＆ Night |
IR cut filter |
|
|
Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
|
|
Lens |
||
|
Lens Type |
Fixed focal lens, 4 mm |
|
|
Focal Length ＆ FOV |
4 mm, Horizontal FOV 88°, Vertical FOV 50°, Diagonal FOV 100° |
|
|
Lens Mount |
M12 |
|
|
Iris Type |
Fixed |
|
|
Aperture |
F1.6 |
|
|
DORI |
||
|
DORI |
4 mm: D: 99 m, O: 39 m, R: 20 m, I: 10 m |
|
|
Illuminator |
||
|
Supplement Light Type |
IR |
|
|
Supplement Light Range |
Up to 60 m |
|
|
Smart Supplement Light |
Yes |
|
|
IR Wavelength |
850 nm |
|
|
Video |
||
|
Main Stream |
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
|
|
Sub-Stream |
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
|
|
Third Stream |
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
|
|
Video Compression |
Main stream: H.265+ / H.265 / H.264+ / H.264 Sub-stream: H.265 / H.264 / MJPEG Third stream: H.265 / H.264 |
|
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
|
H.264 Type |
Baseline Profile / Main Profile / High Profile |
|
|
H.265 Type |
Main Profile |
|
|
Bit Rate Control |
CBR/VBR |
|
|
Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
|
|
Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
|
|
Audio |
||
|
Audio Type |
Mono sound |
|
|
Audio Sampling Rate |
8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz |
|
|
Environment Noise Filtering |
Yes |
|
|
Network |
||
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets |
|
|
Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) |
|
|
Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
|
|
Image |
||
|
Image Parameters Switch |
Yes |
|
|
Image Settings |
Mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
|
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
|
Wide Dynamic Range (WDR) |
120 dB |
|
|
SNR |
≥ 52 dB |
|
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
|
Privacy Mask |
4 regions of privacy mask |
|
|
Interface |
||
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
|
On-Board Storage |
Built-in memory card slot, support microSD / microSDHC / microSDXC card, up to 512 GB |
|
|
Built-in Microphone |
Yes |
|
|
Built-in Speaker |
Power: 2 W. Max. sound pressure level: 10 cm: 97 dB. |
|
|
Audio |
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 2.2KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
|
|
Alarm |
Visual alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
|
Reset Key |
Yes |
|
Event |
|
|
Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
|
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection |
|
Linkage |
Upload to NAS / memory card / FTP, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, white light flashing |
|
Deep Learning Function |
|
|
Face Capture |
Yes |
|
General |
|
|
Power |
12 VDC ± 25%, 1.17 A, max. 14 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.4 A to 0.3 A, max. 17 W |
|
Dimension |
286.7 mm × 93.3 mm × 91.2 mm (11.3" × 3.7" × 3.6") |
|
Package Dimension |
386 mm × 156 mm × 155 mm (15.2" × 7.5" × 7.1") |
|
Weight |
Approx. 1130 g (2.5 lb.) |
|
With Package Weight |
Approx. 1654 g (3.6 lb.) |
|
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
General Function |
Anti-flicker, heartbeat, mirror, flash log, password reset via email, pixel counter, password protection, one-key reset, three streams |
|
Approval |
|
|
EMC |
FCC: 47 CFR Part 15, Subpart B CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7 KC: KN32: 2015, KN35: 2015 |
|
Safety |
UL: UL 62368-1 CB: IEC 62368-1: 2014+A11 CE-LVD: EN 62368-1: 2014/A11: 2017 |
|
Environment |
CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006 |
|
Protection |
IP67: IEC 60529-2013 |
Know before you buy
Quick answers about the DS-2CD2T86G2-ISU/SL 4mm, and how it compares.
1 Line or 2 Line: which one do I need?
1 Line (Value Series): the body is often plastic or part plastic (it differs by model, so check the specs), with Motion Detection 2.0 or 3.0 for people and vehicle alerts. Good for homes, shops and small offices.
2 Line (Pro Series): metal body (some parts, like the sun shade, are plastic), bigger sensor, longer night range and perimeter alarms such as line crossing and intrusion. Good for factories, warehouses and any site with a wall or fence.
G2 or G3: what changes?
G3 is the newer generation. It cleans night grain and glare before detection, so headlights and reflections cause far fewer false alarms (Hikvision states up to 80% fewer). It also saves search tags with the video for AcuSeek. G2 is still a good camera when budget decides.
What is DarkFighter? Will I see colour at night?
DarkFighter cameras have a sensor made for very low light. Where an ordinary camera turns grainy, DarkFighter still gives a clear, low-noise picture, and with a little street or yard light it stays in colour longer. In full darkness it switches on its IR light and records in black and white, up to the range shown on this page. For colour all night, choose Smart Hybrid Light or ColorVu.
When do the strobe light and alarm sound go off?
Only when the camera detects a person or vehicle in the area you set. You choose the flashing light, a siren or your own recorded voice message, and when it is active (for example only after closing time). From the Hik-Connect app you can also talk to the visitor through the speaker.
What do AcuSense, Motion Detection, AcuSense Perimeter, AcuSearch and AcuSeek mean?
- AcuSense: the brain that tells people and vehicles apart. It also marks the recordings, so you can play back only those clips.
- Motion Detection 2.0 / 3.0: motion detection with AcuSense. It alerts only for people and vehicles, not cats, leaves or rain. 3.0 also ignores headlights.
- AcuSense Perimeter: you draw a line or an area (line crossing, intrusion, entering or leaving an area), and only people and vehicles set off the alarm. Built into 2 Line (Pro Series) cameras.
- AcuSearch: click a person in old video and see every clip with them (Pro I NVR or higher).
- AcuSeek: search video by typing words, like "white car at the gate" (G3 cameras with a VPro or DeepinMind NVR).
What does the camera do, and what does the NVR add?
The camera detects; the NVR records and helps you find clips. A Hikvision AI NVR (NXI) can also add AI to older cameras: people and vehicle alerts on all channels, and line crossing or face recognition on 1 or 2 cameras. This camera has AcuSense built in, so it does not use up the NVR's AI.
Which Hikvision NVR should I pair it with?
Any Hikvision NVR records it. Value (NI-Q) for basic recording. Pro K (NXI-K) adds people and vehicle playback, AI for older cameras and face recognition on a few cameras. Pro I (NXI-I) adds AcuSearch. VPro adds AcuSeek. DeepinMind runs AI on many channels. Our engineers size channels and storage with your quote.
Can this camera recognise faces?
This camera captures faces itself: it saves a clear photo of each face with the time, so you can search faces instead of hours of video. To recognise faces (match them with your staff, VIP or blocked list), pair it with a Hikvision AI NVR (NXI-K or higher). For good results, people should face the camera at head height, with light on their faces.
What happens to my recordings if a hard disk fails or the NVR is stolen?
With a microSD card in the camera, the last days of video stay inside the camera, even if the hard disk fails or thieves take the NVR. If the network drops, the camera records to the card and the NVR copies the gap back later. On the NVR side, RAID models (86xx, 96xx) lose nothing when one disk fails; other NVRs lose only the video on the failed disk.
Can I buy this camera online?
Hikvision IP cameras are installed products, so we start with a free pre-sales consultation: our engineers suggest the cameras, recorder and storage for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi. 1 year carry-in warranty.
