ColorVu 3.0 Camera

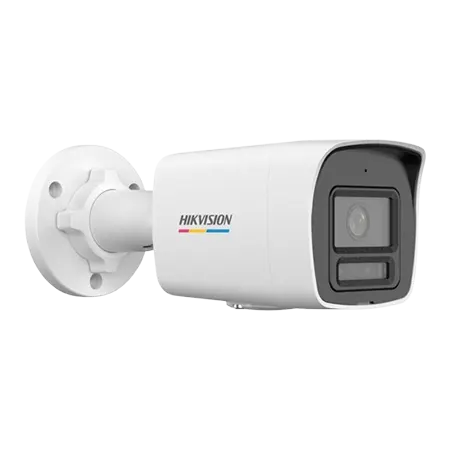

Hikvision DS-2CD1047G3-LIU 4 MP ColorVu 3.0 Bullet Network Camera
White Light Range
White Light Range Up to 30 m
Frame Rate
50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Smart Features
120dB WDR, 3D DNR, BLC, ROI
Protection Level
Water and dust resistant (IP67)
Motion Detection 3.0
Super clear 24/7 colorful imaging with ColorVu 3.0 technology
Motion Detection 3.0, more accurate on person and vehicle classification
|
Camera |
||
|
Image Sensor |
1/3" Progressive Scan CMOS |
|
|
Max. Resolution |
2560 × 1440 |
|
|
Min. Illumination |
Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light |
|
|
Shutter Time |
1 s to 1/100,000 s |
|
|
Day & Night |
IR cut filter |
|
|
Angle Adjustment |
Pan: 0° to 360° tilt: 0° to 90° rotate: 0° to 360° |
|
|
Lens |
||
|
Lens Type |
Fixed focal lens, 4 mm |
|
|
Focal Length & FOV |
4 mm, horizontal FOV 79.6°, vertical FOV 43.2°, diagonal FOV 93.2° |
|
|
Lens Mount |
M12 |
|
|
Iris Type |
Fixed |
|
|
Aperture |
F1.0 |
|
|
Depth of Field |
4 mm: 1.6 m to ∞ |
|
|
DORI |
||
|
DORI |
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m |
|
|
Illuminator |
||
|
Supplement Light Type |
IR, White Light |
|
|
Supplement Light Range |
Up to 30 m |
|
|
Smart Supplement Light |
Yes |
|
|
IR Wavelength |
850 nm |
|
|
Video |
||
|
Main Stream |
50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) |
|
|
Sub-Stream |
50 Hz: 25 fps (1280 × 720,640 × 480,640 × 360) 60 Hz: 24 fps (1280 × 720,640 × 480,640 × 360) |
|
|
Video Compression |
Main stream: H.265+ / H.265 / H.264+ / H.264, Sub-stream: H.265 / H.264 / MJPEG |
|
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
|
H.264 Type |
Baseline Profile, Main Profile, High Profile |
|
|
H.265 Type |
Main Profile |
|
|
Bit Rate Control |
CBR, VBR |
|
|
Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
|
|
Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
|
|
Audio |
||
|
Audio Type |
Mono sound |
|
|
Audio Sampling Rate |
8 kHz/16 kHz |
|
|
Environment Noise Filtering |
Yes |
|
|
Network |
|
|
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP UDP, QoS, FTP, SMTP |
|
|
Security |
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
|
|
Image |
|
|
|
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
|
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
|
Wide Dynamic Range (WDR) |
120 dB |
|
|
SNR |
≥ 52 dB |
|
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
|
Privacy Mask |
4 programmable rectangular privacy masks |
|
|
Interface |
|
|
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
|
Built-in Microphone |
Yes,1 built-in microphone |
|
|
Event |
|
|
|
Basic Event |
Motion detection (support alarm triggering by specified target types (person and vehicle)), video tampering alarm, exception |
|
|
Linkage |
Upload to FTP, notify surveillance center, send email, trigger recording |
|
|
General |
|
|
|
Material |
Front cover: metal, body: plastic, bracket: plastic |
|
|
Package Dimension |
216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.7") |
|
|
Weight |
-LIU: Approx. 330 g (0.73 lb.) |
|
|
With Package Weight |
-LIU: Approx. 445 g (0.98 lb.) |
|
|
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
|
Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
|
Approval |
|
|
|
EMC |
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1 : 2019+A2:2021 |
|
|
Safety |
CB: IEC 62368-1: 2014+A11 |
|
|
Environment |
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
|
|
Protection |
IP67: IEC 60529-2013 |
|
|
